Legacy Audio IV8 8-Channel Amplifier

Legacy Audio IV8 8-Channel Amplifier

Regular price $5,700.00 USD
Regular price $8,500.00 USD Sale price $5,700.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Style

FREE SHIPPING WITHIN THE CONTINENTAL US!  (Place order for local pickup and shipping will be coordinated following the sale)

Original boxes, paperwork, and all accessories included.

This item does not include a manufacturer's warranty and is currently in use in G3Fi's demo room.

G3Fi's 30-day limited warranty applies.



PERFORMANCE COLLECTION

i·V8

Great for Atmos® installations, the elegant i·V8 amplifier features state of the art ICEedge® technology and approaches 80% efficiency while delivering 610 watts per channel into 8 ohms all channels driven.

Featuring state of the art ICEedge® technology, the elegant eight channel amplifier approaches 80% efficiency while delivering over 600 watts per channel into 8 ohms all channels driven. Such exceptional power is the product of very high current (i) and voltage (V) output capabilities providing stability into low impedances with a peak output current capability of 38A.

i·V 8 Features:

  • Short circuit protection
  • Thermal protection
  • Triggered On/Off
  • Standby switch
  • Front panel status indicator

Say goodbye to excessive heat and transformer hum. The crystal-clear sound is virtually noise-free and reliability is assured- after all, it’s a Legacy.

The Legacy i·V series is available in a monoblock up to an eight channel configuration.

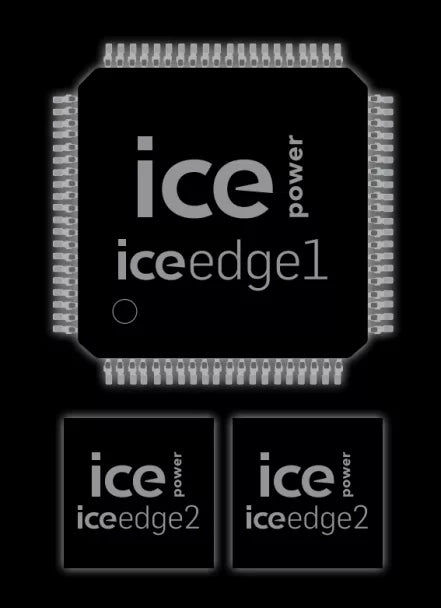

ICEedge® Technology

These long life amplifiers employ ICEedge® technology to sound as clean and uncolored as the best of the best while running much cooler. This balanced differential design operates against a background of silence while delivering incredible current and voltage outputs on demand.



Increased Resolution

Take advantage of the increased dynamic capability of today's high resolution recordings with the Legacy i·V amplifier series. You will enjoy a lower noise floor in your recordings, stronger crests and increased dynamic resolution.

Higher amplifier power assures the proper snap in transients and means dense musical arrangements will avoid the smearing, strain and inevitable distortion as complex passages reach higher levels.



Specifications

  • Power Rating: 660 watts per channel x 8 @ 4 ohms, all channels driven 610 watts per channel x 8 @ 8 ohms, all channels driven
  • Peak Power:1.2 kW peak power from any channel @ 4 Ohm/ 1kHz with less than 1% distortion
  • Over Current Protection:Breaker reset for excessive sustained current
  • Inputs:Fully balanced XLR, single-end RCA
  • Outputs:Gold plated safety approved five-way binding posts
  • Damping factor:750 average, 20Hz to 1kHz
  • Voltage Gain:25.8 dB
  • Dynamic Range:127 dB, A-weighted
  • Voltage/Current:98 Vp/ 38Ap
  • Input Sensitivity:5.0 Vp @ 1200W/4 Ohm
  • Input Impedance:38 kOhm for both pin 2+ and pin 3-
  • Channel Separation:120 dB at 1kHz
  • Unit Dimensions:17.5" W x 15.6" D x 5.8" H
  • Shipping Weight:39 lbs
  • Notes:Highest power output can be obtained using a single 230V, 20A line or dual 120V, 20A lines. A conventional single AC cord is provided.
