ELECTRONIC SPECIFICATIONS
-
- Power Output per Channel
- 75W @ 4, 8 or 16 Ohms
-
- Number of Channels
- 2
-
- Total Harmonic Distortion
- 0.5% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20,000Hz
(≤ 0.25% harmonic distortion at 1kHz)
-
- S/N below rated output
- 105dB
-
- Dynamic Headroom
- 1.2dB
-
- Damping Factor
- >22
-
- Rated Power Band
- 20Hz to 20kHz
-
- Frequency Response
- +0, -0.5dB from 20Hz to 20,000Hz
+0, -3.0dB from 10Hz to 100,000Hz
CONTROL
-
- Remote Power Control
- Yes, input and output
-
- Multi-Channel DB25 Cable
- N/A
GENERAL SPECIFICATIONS
-
- Circuit Configuration
- Unity Coupled
-

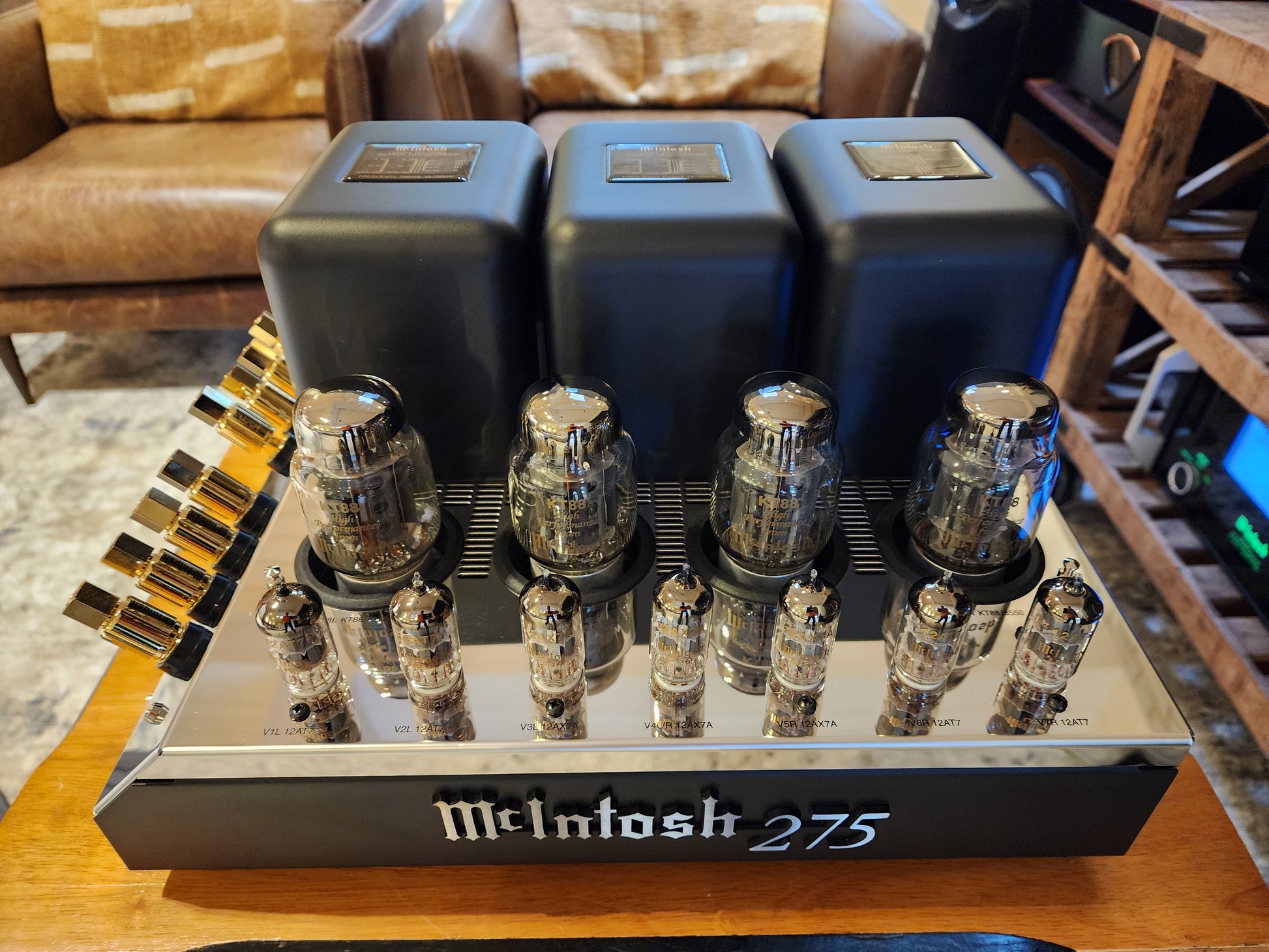

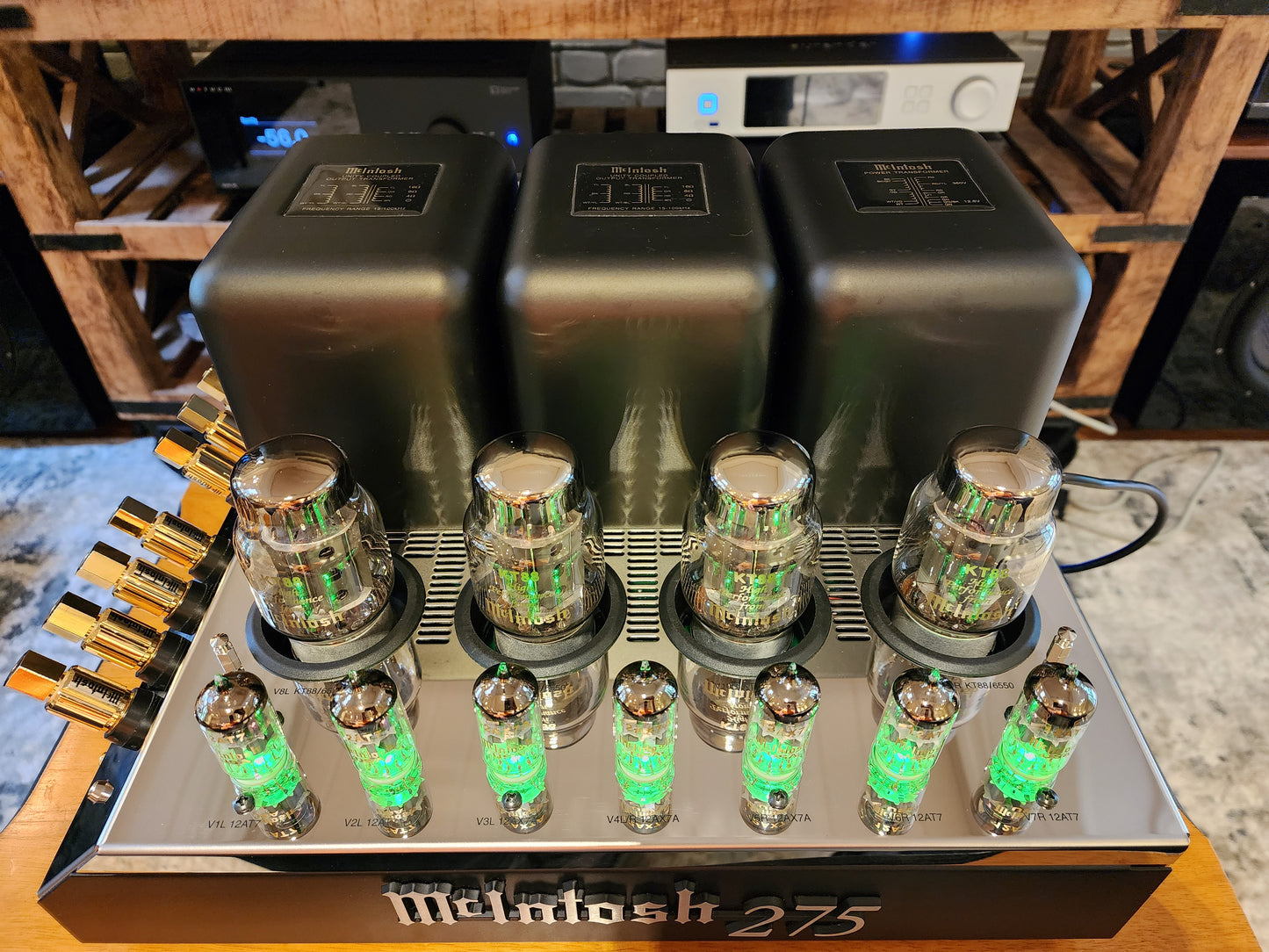

- Circuit Design

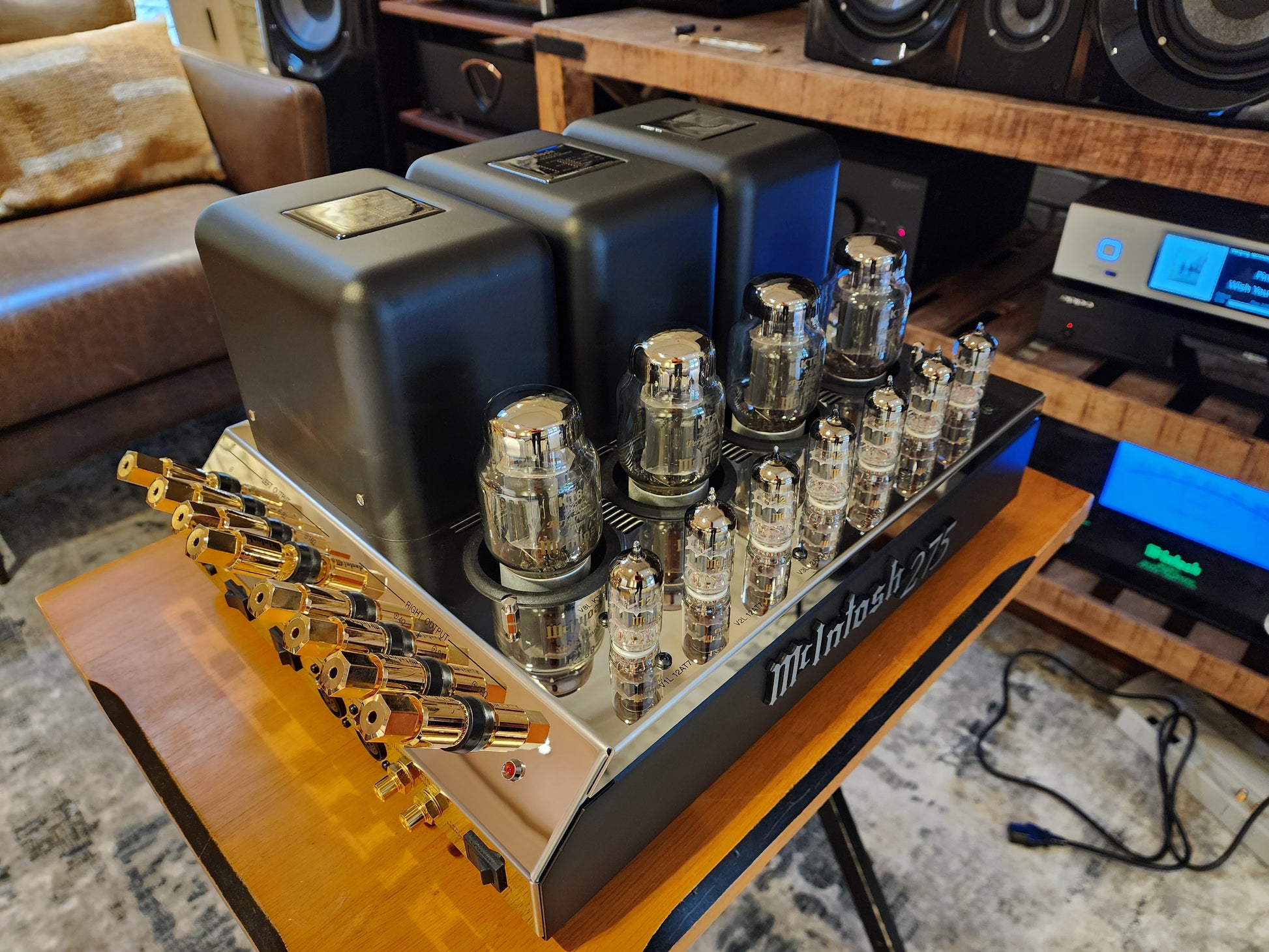

- Vacuum Tube
-
- Mono Bridge
- Yes
-
- Mono Parallel
- Yes, 150W @ 2, 4 or 8 Ohms
-
- Output Type
- Unity Coupled Output Transformer
-
- Meters
- No
-
- Meter Light Switch
- Small signal tubes LEDs controlled by McIntosh preamp
-
- Balanced Input
- Yes
-
- Front Panel
- N/A
-

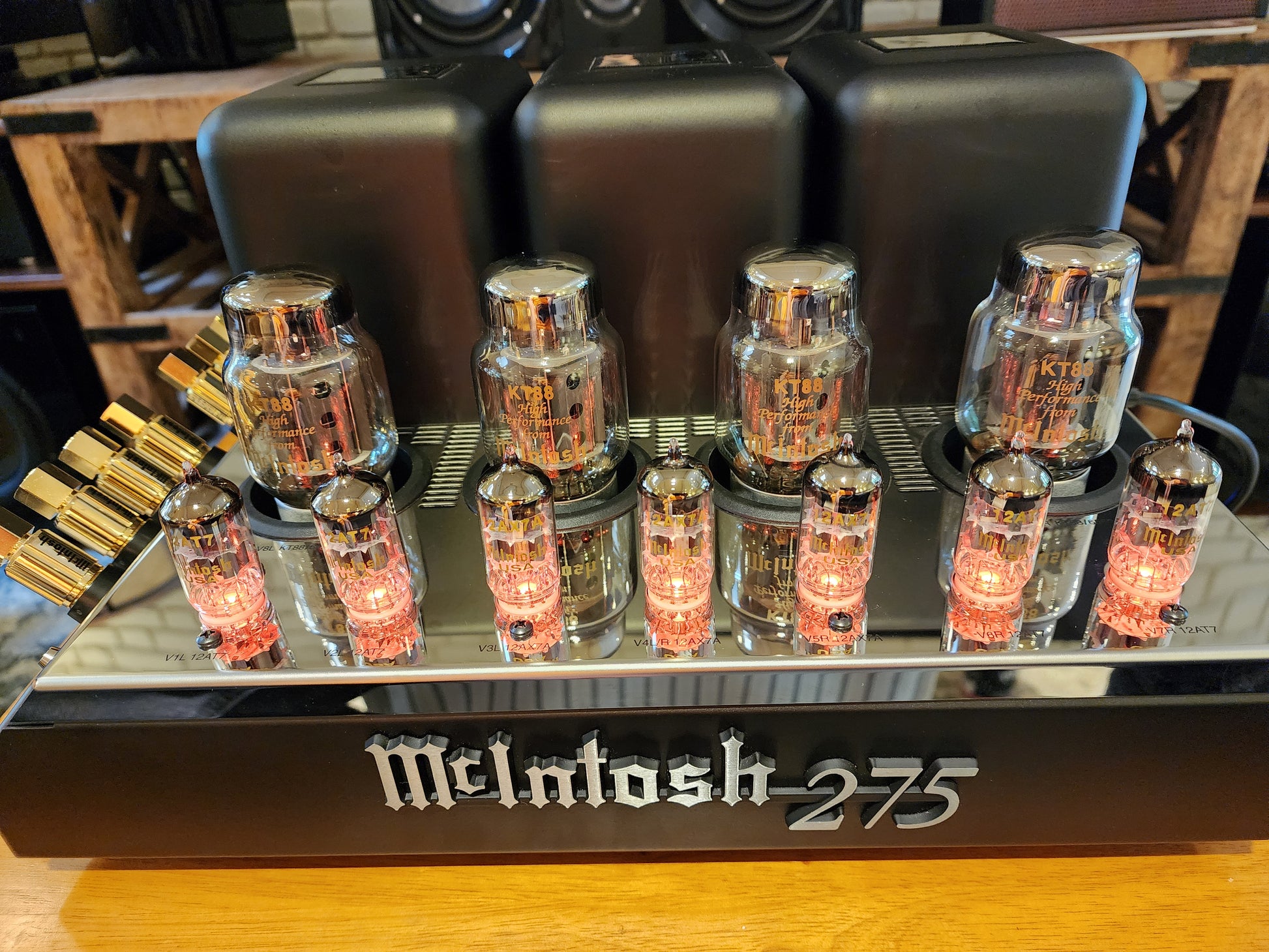

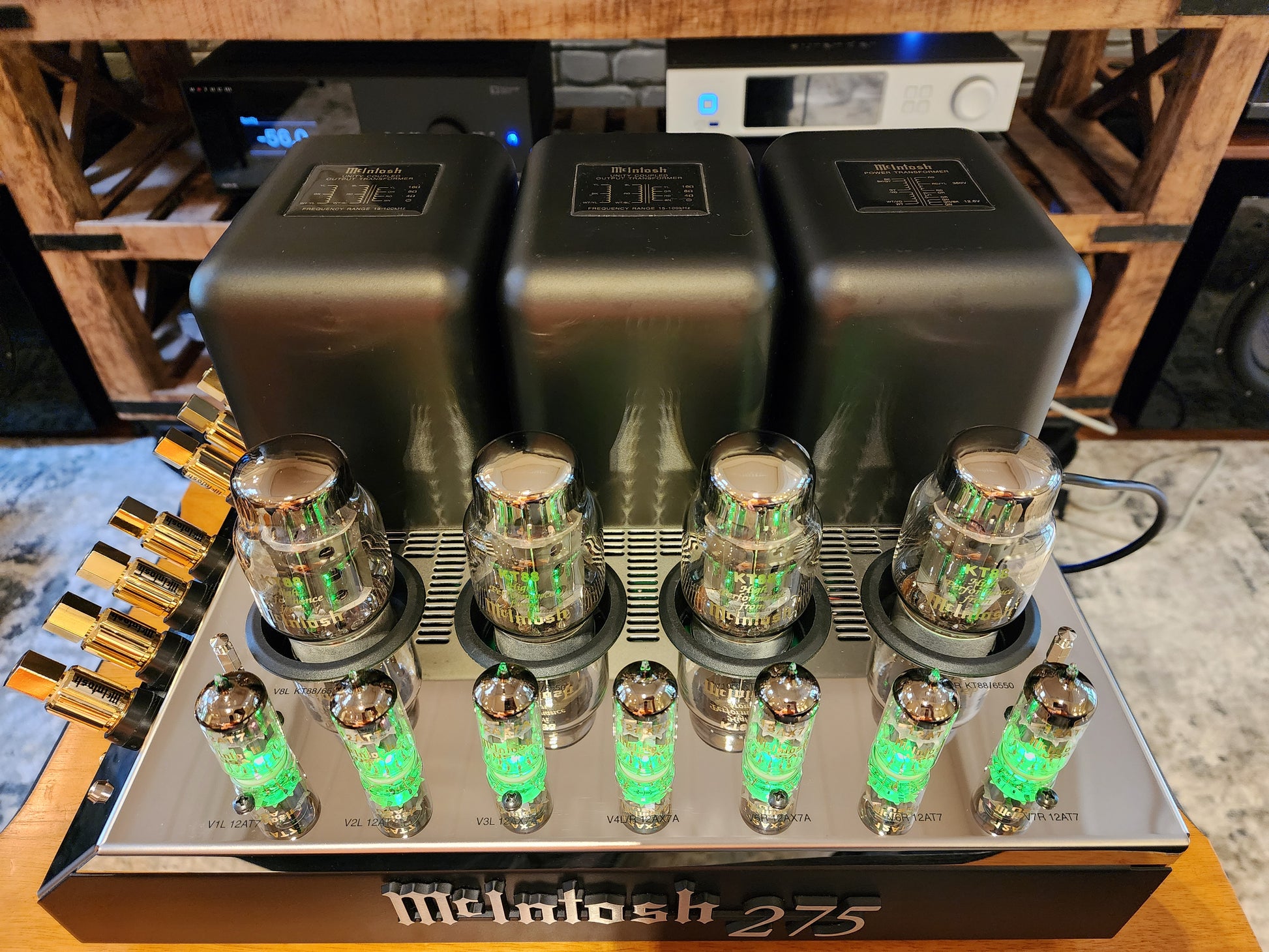

- Illumination
- Small Signal Tubes, LED
-
- Chassis Style
- Polished Stainless Steel

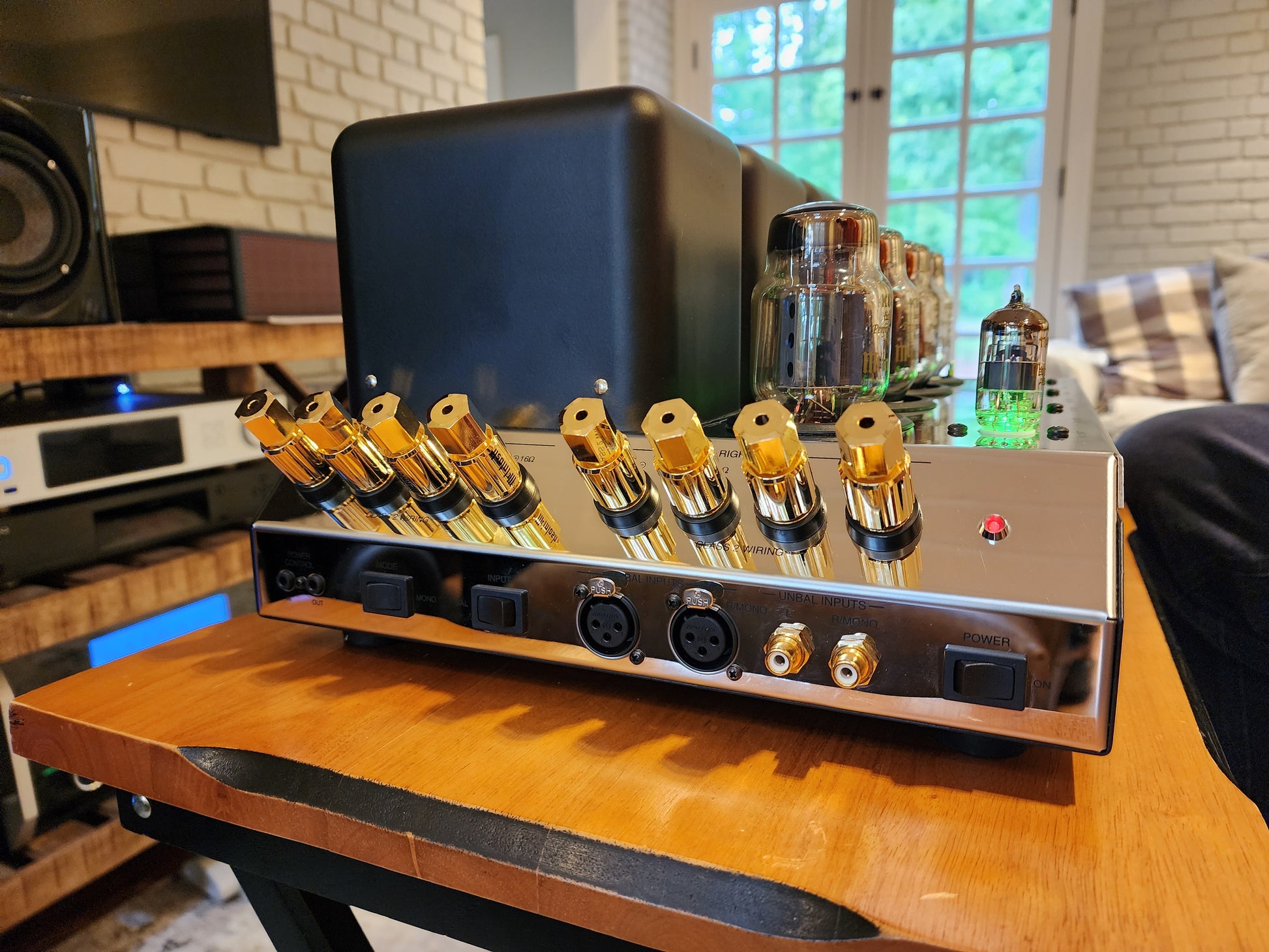

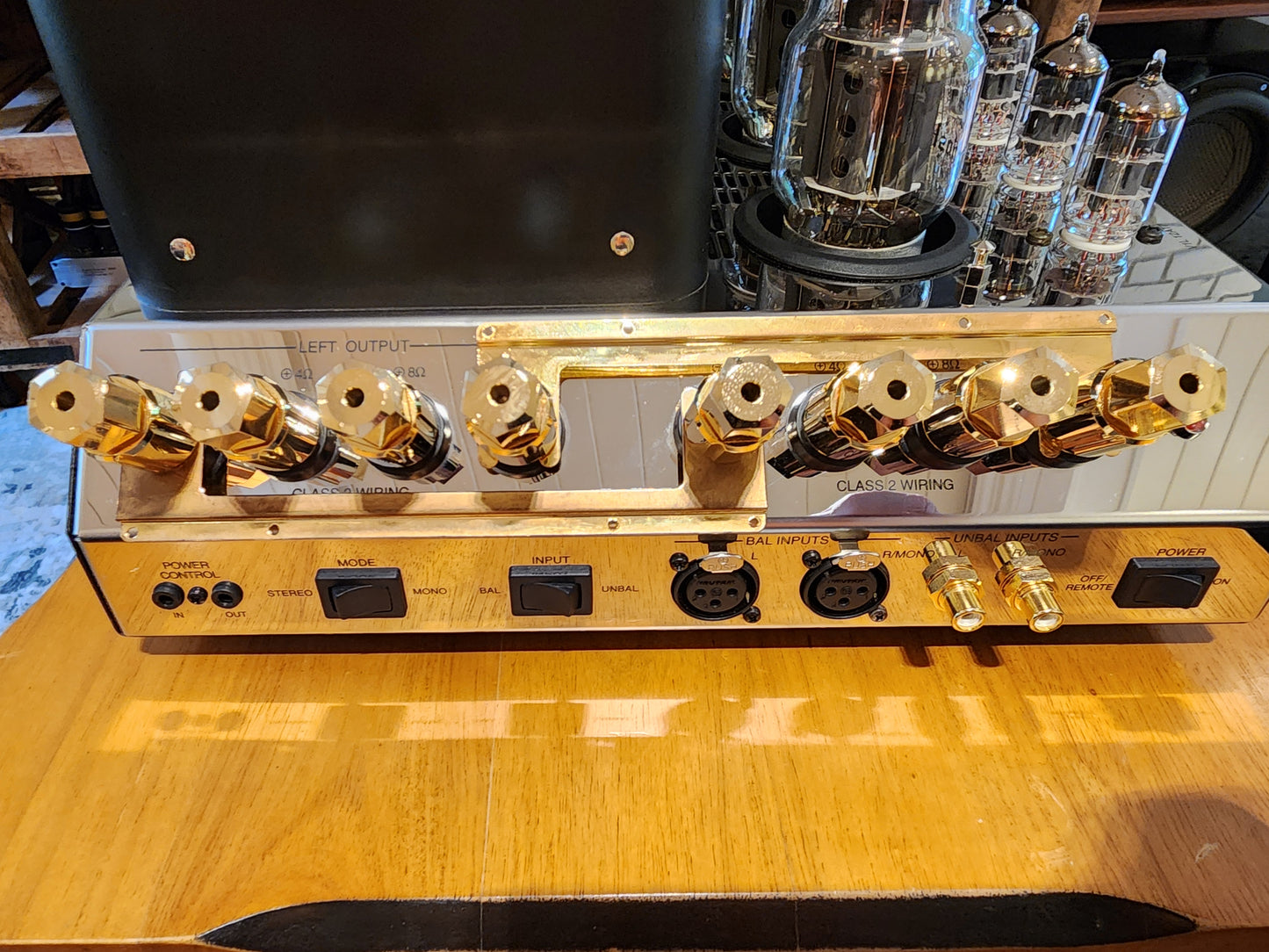

CONNECTIVITY
-

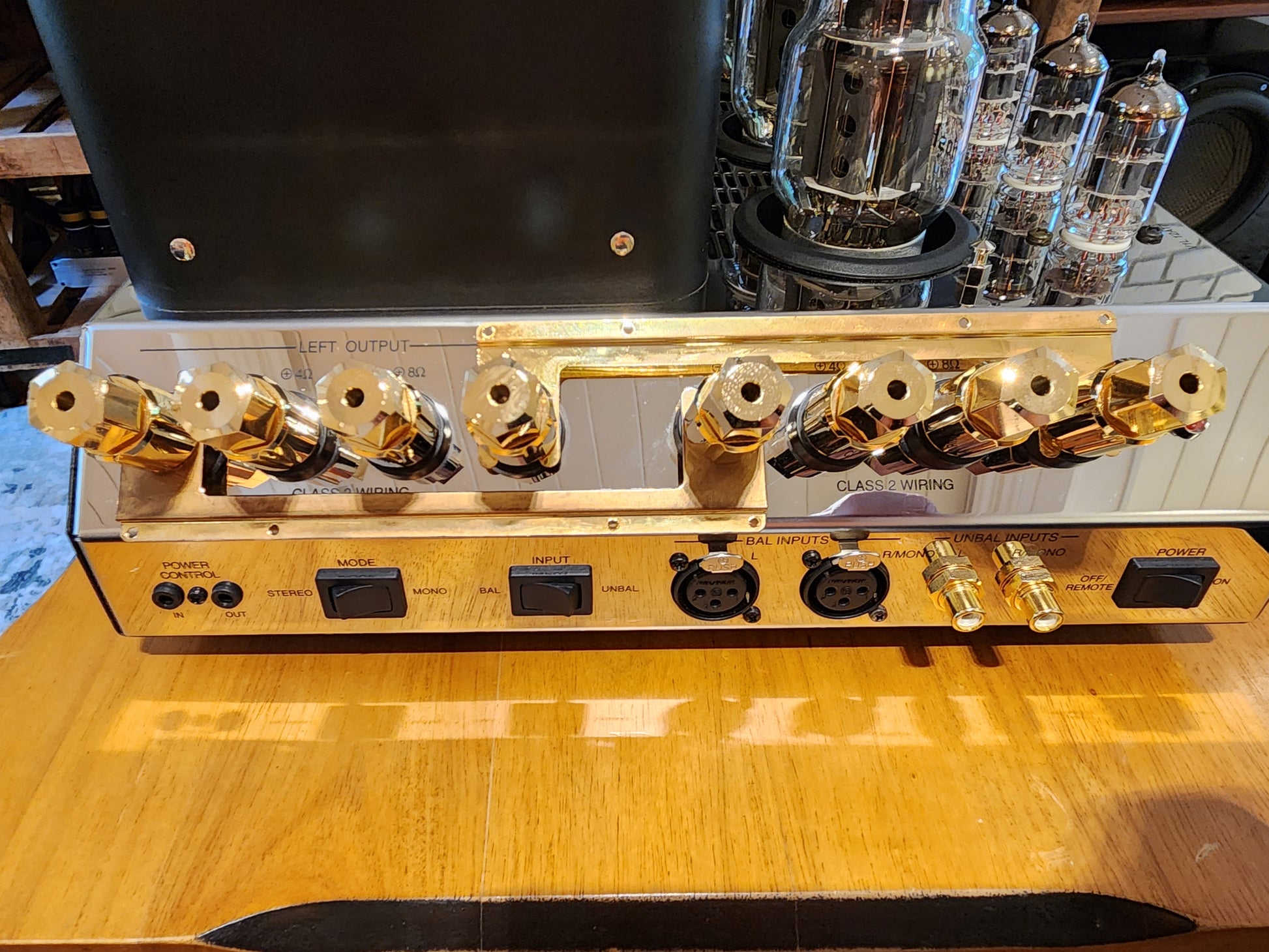

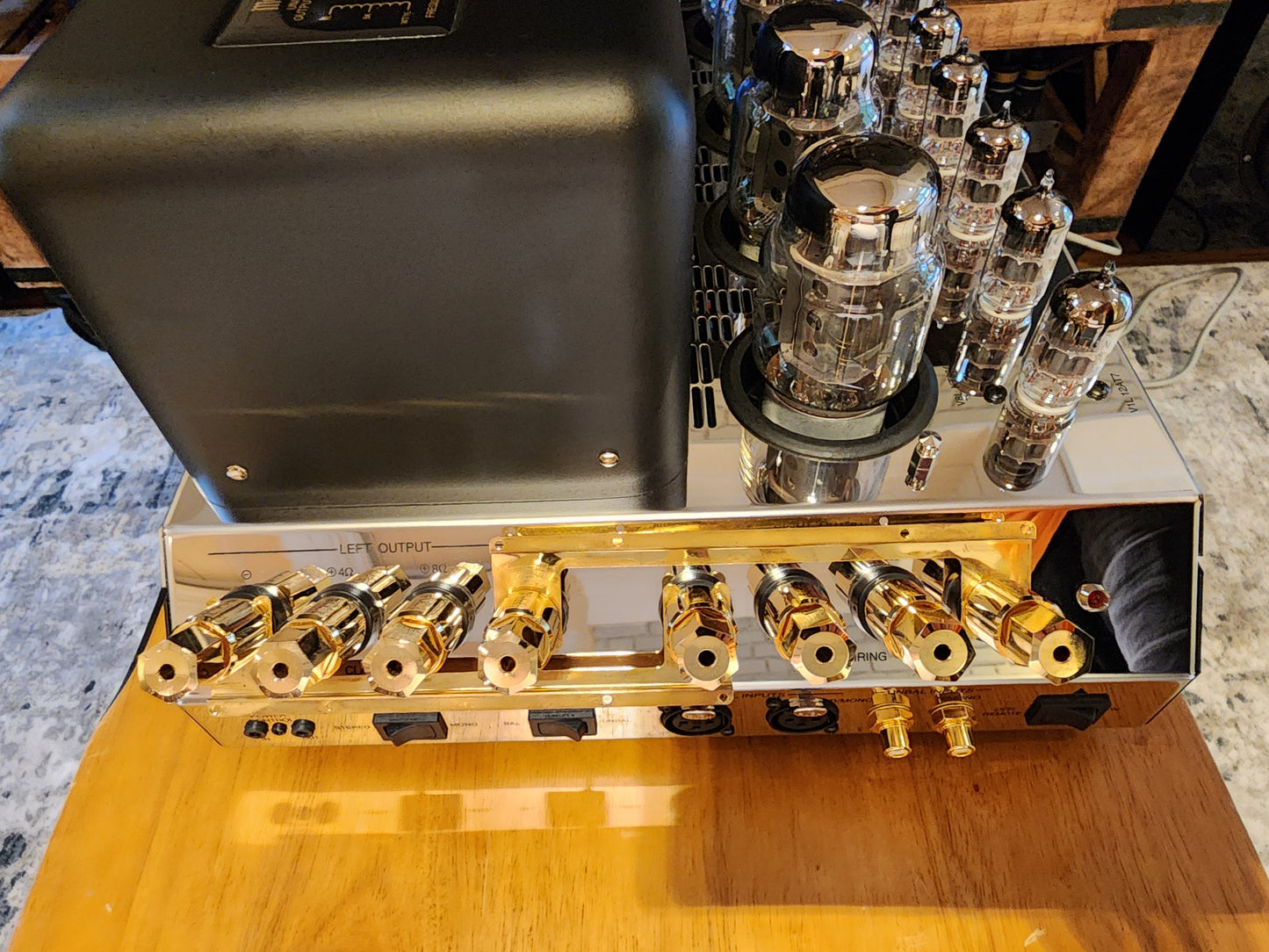

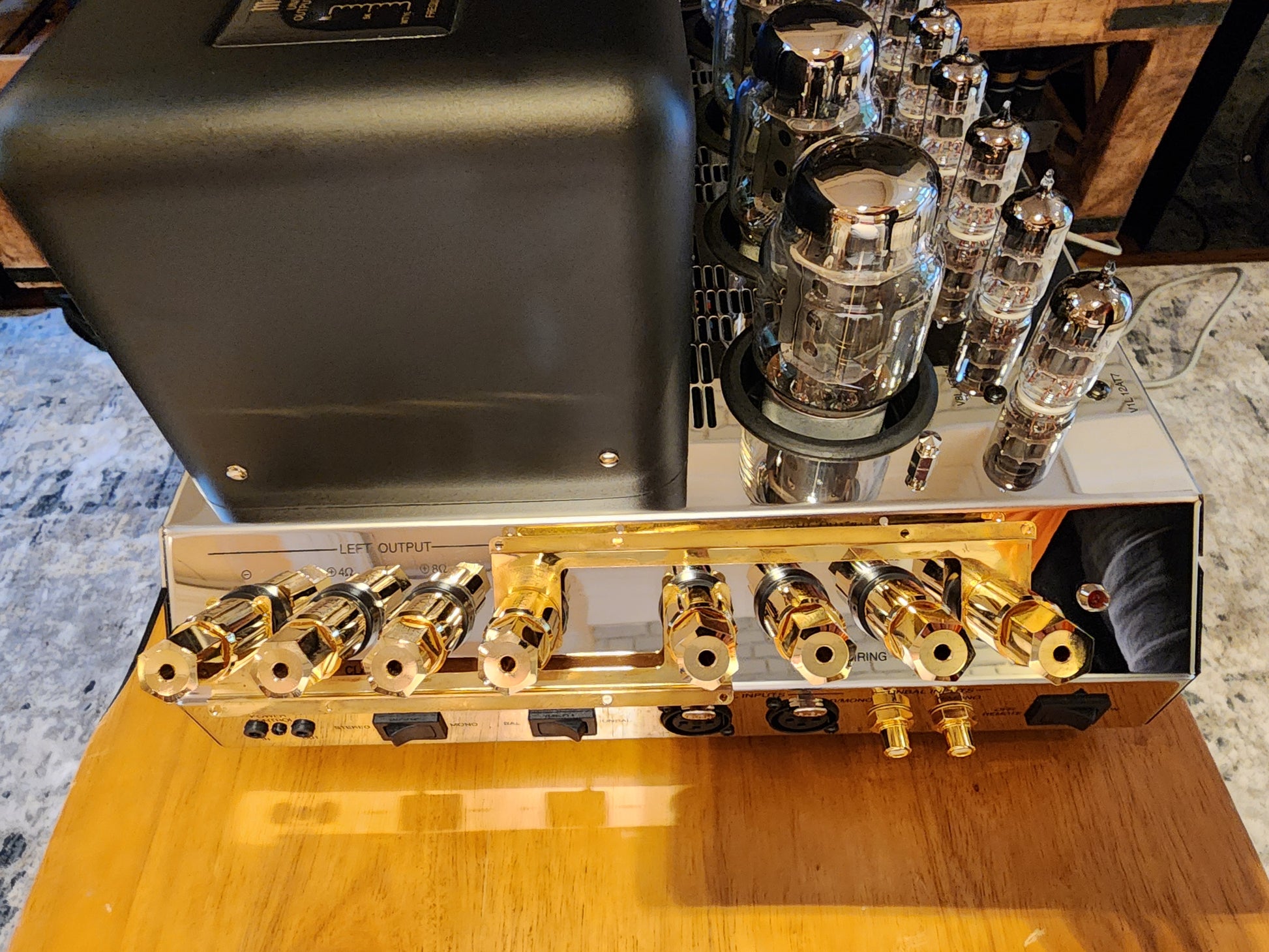

- Speaker Binding Post Type
- Patented Solid Cinch™ Speaker Binding Posts
WEIGHTS & DIMENSIONS
-
- Unit Dimensions (W x H x D)
- 16-1/2" (41.9cm) x 8-1/2" (21.6cm) x 12" (30.5cm)
-
- Unit Weight
- 67 lbs (30.5 kg)
-
- Shipping Weight
- 75 lbs (34.1 kg)
