FREE SHIPPING WITHIN THE CONTINENTAL US! (Place order for local pickup and shipping will be coordinated following the sale)
Original boxes with paperwork and all accessories included.
G3Fi's 30-day limited warranty applies.
This item does not include a manufacturer's warranty.

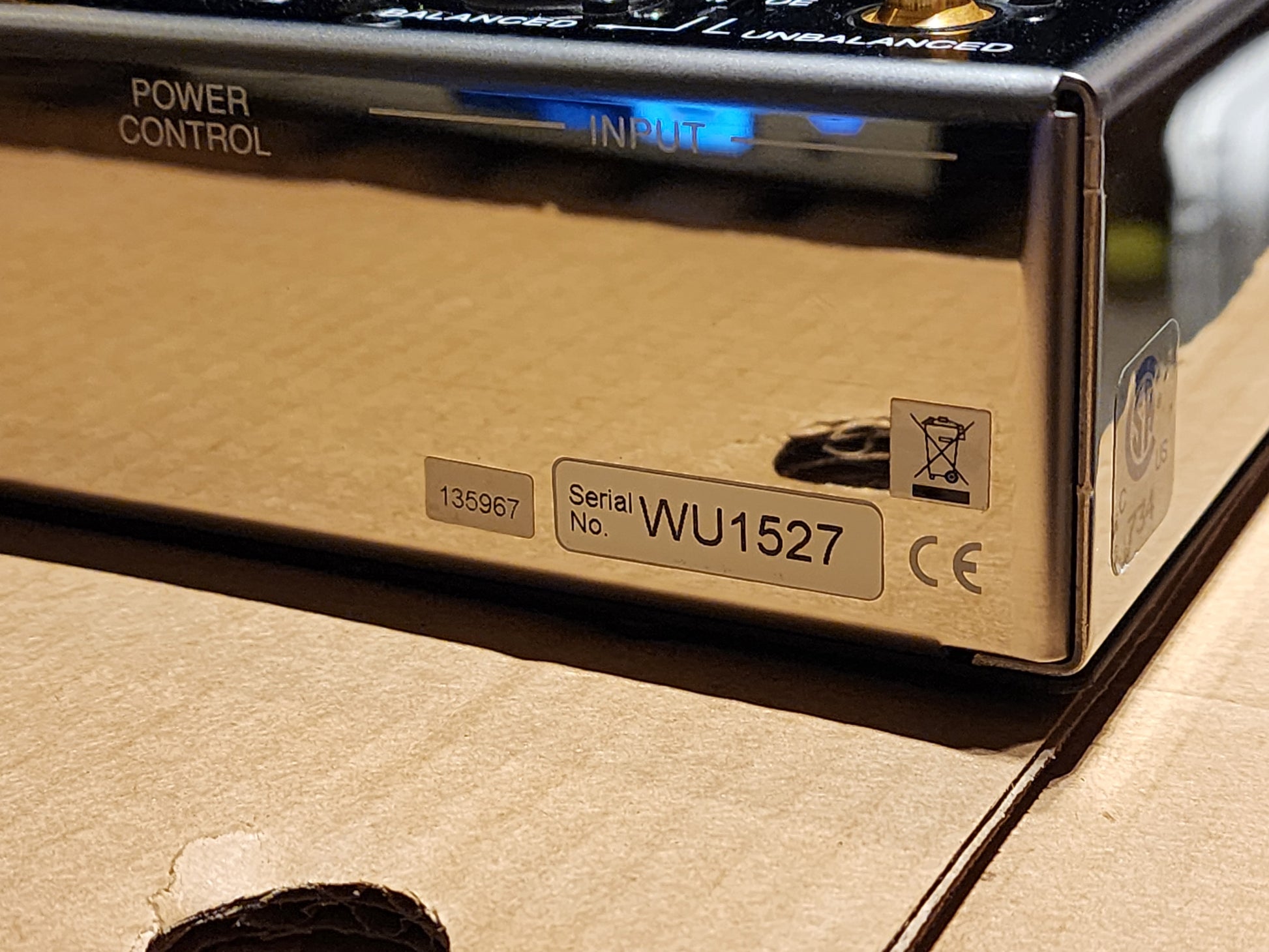

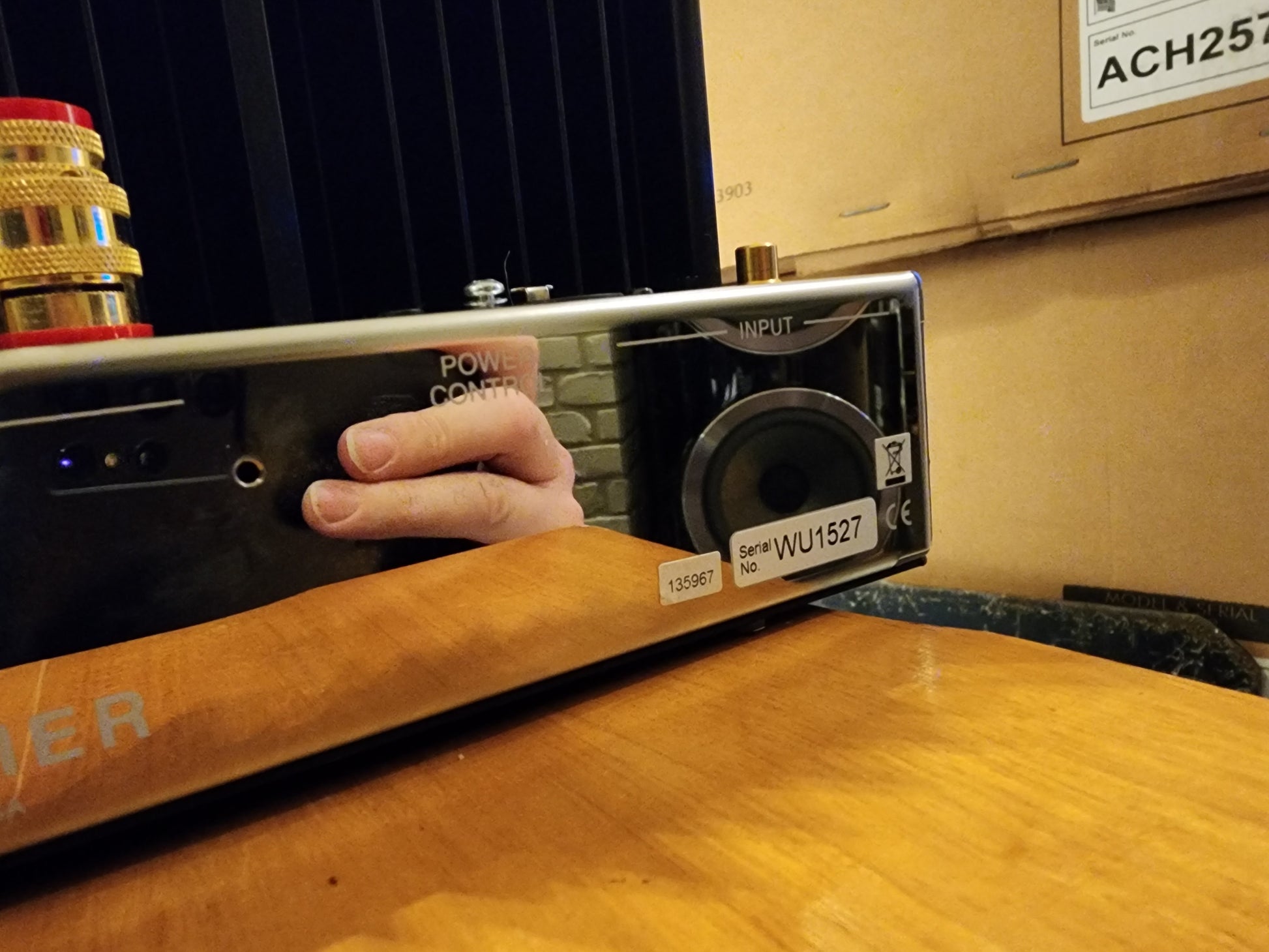

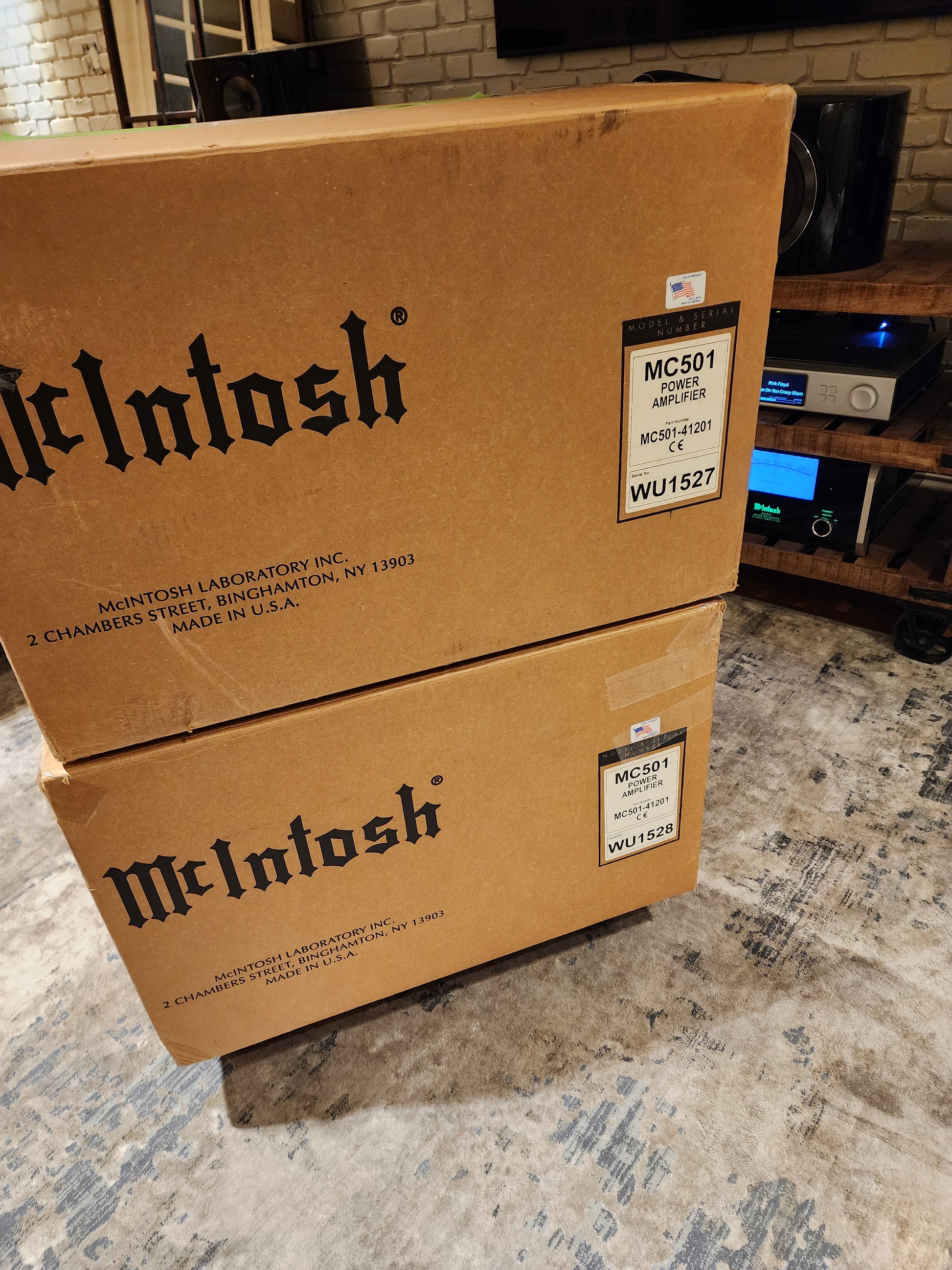

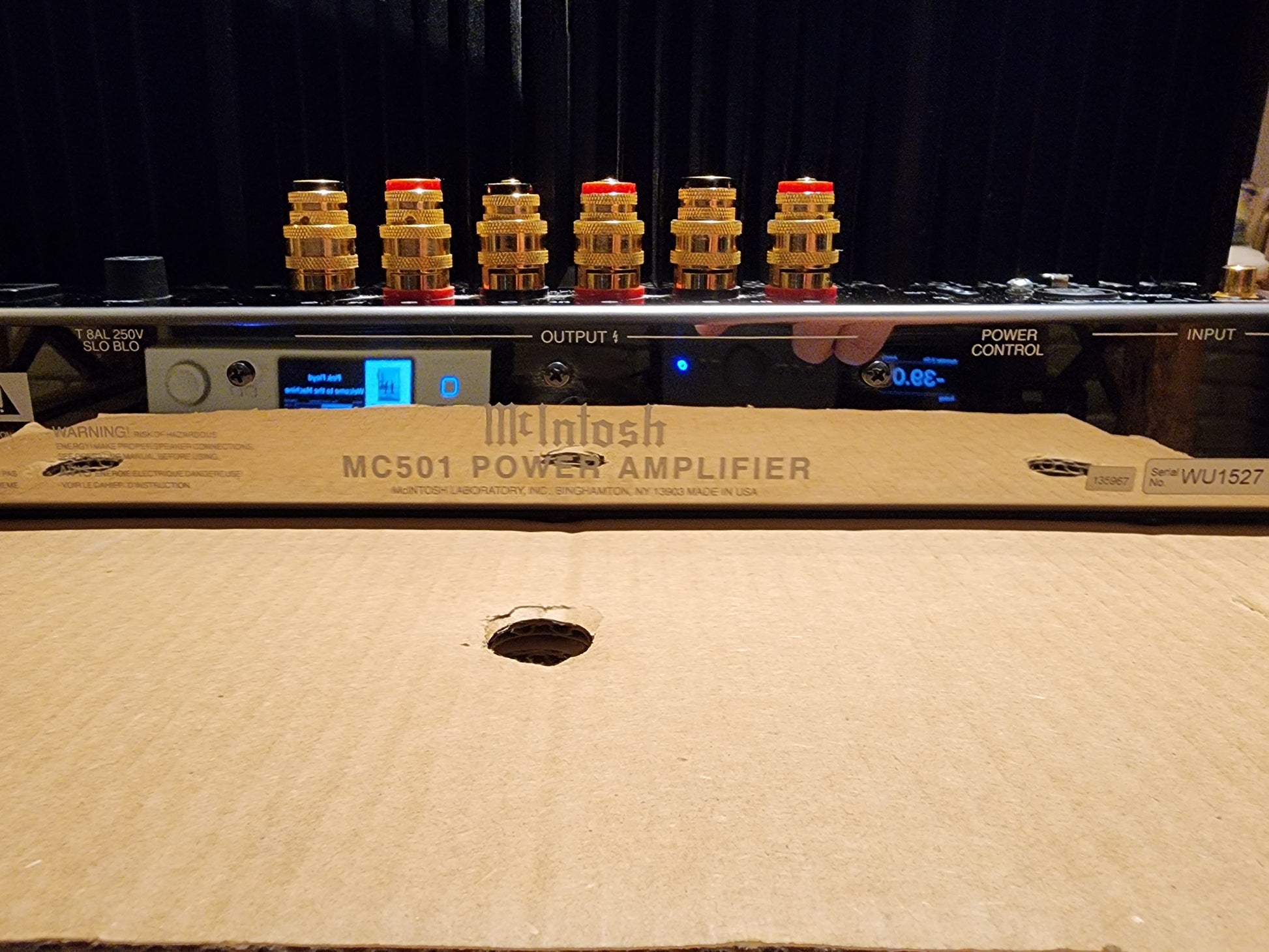

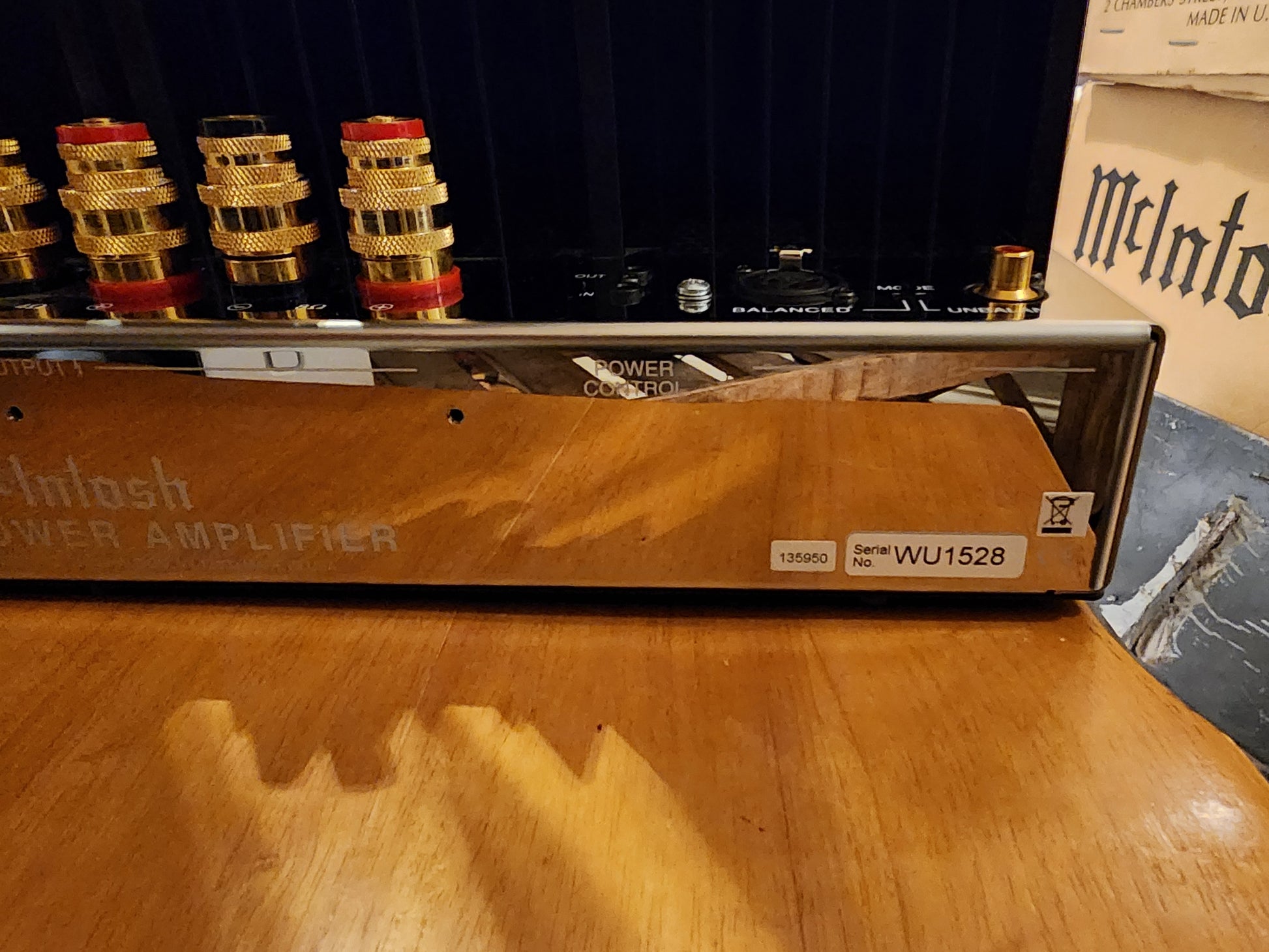

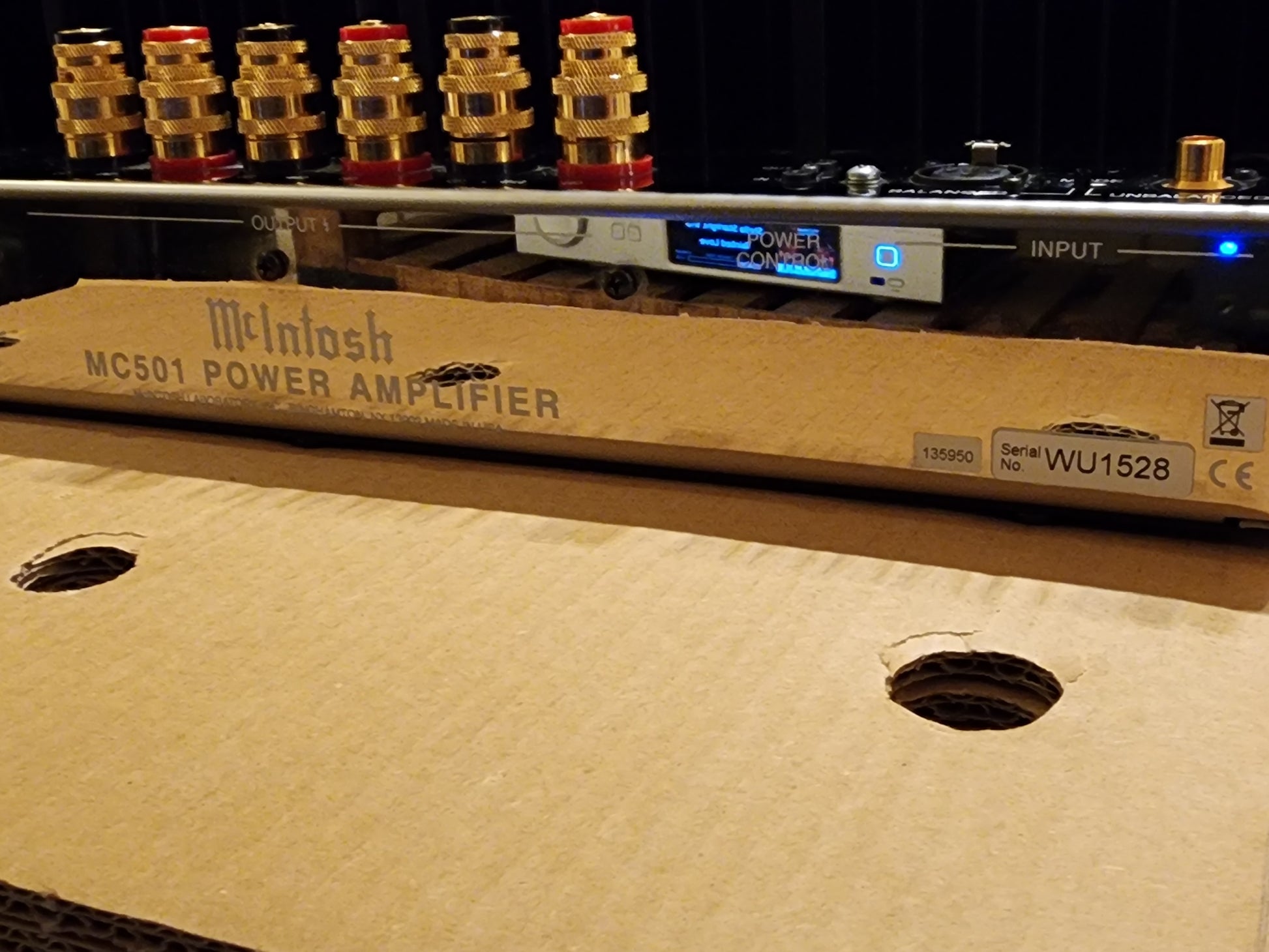

RARE CONSECUTIVE SERIAL NUMBERS (SN# WU1527 & SN# WU1528)!

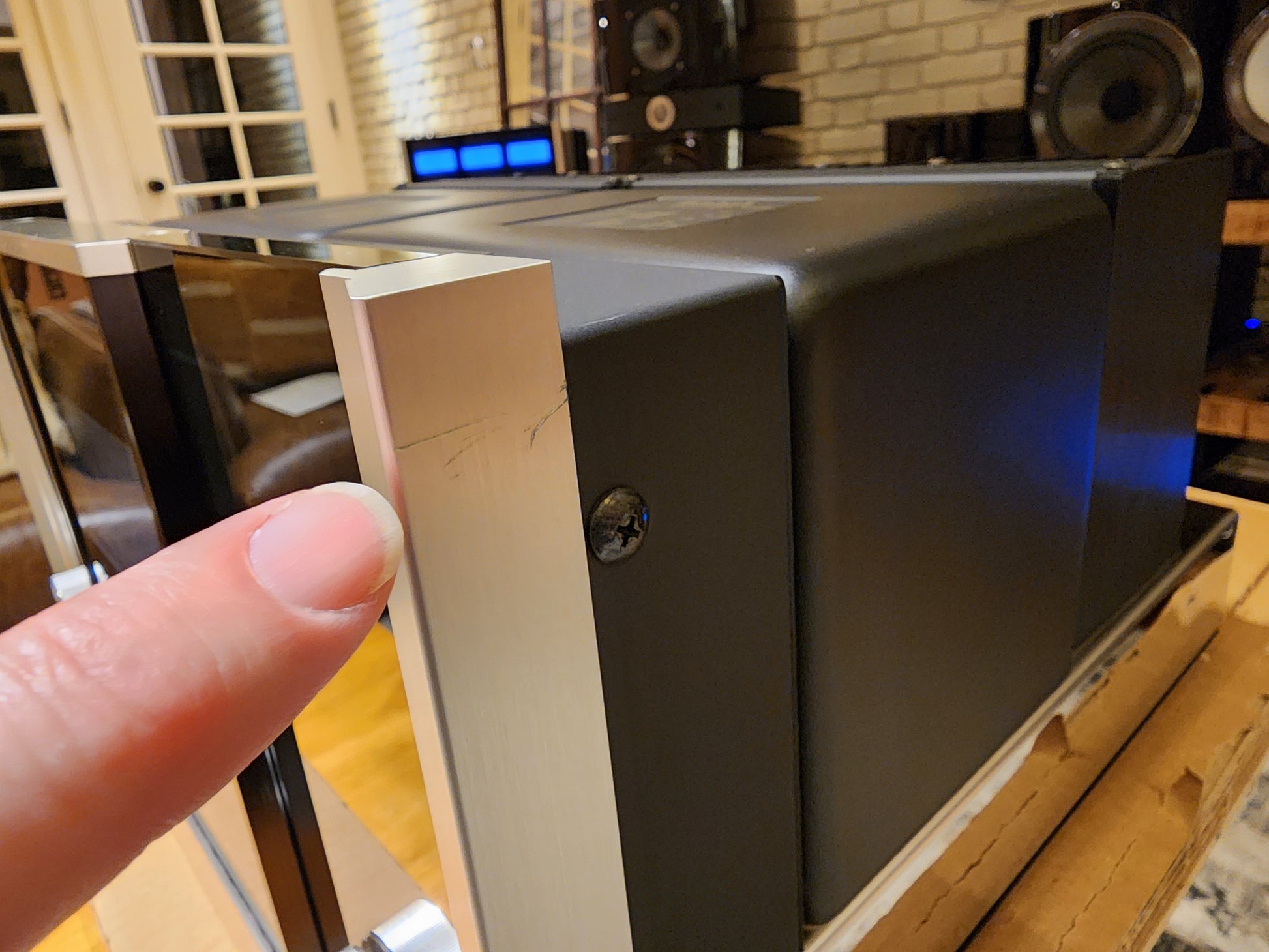

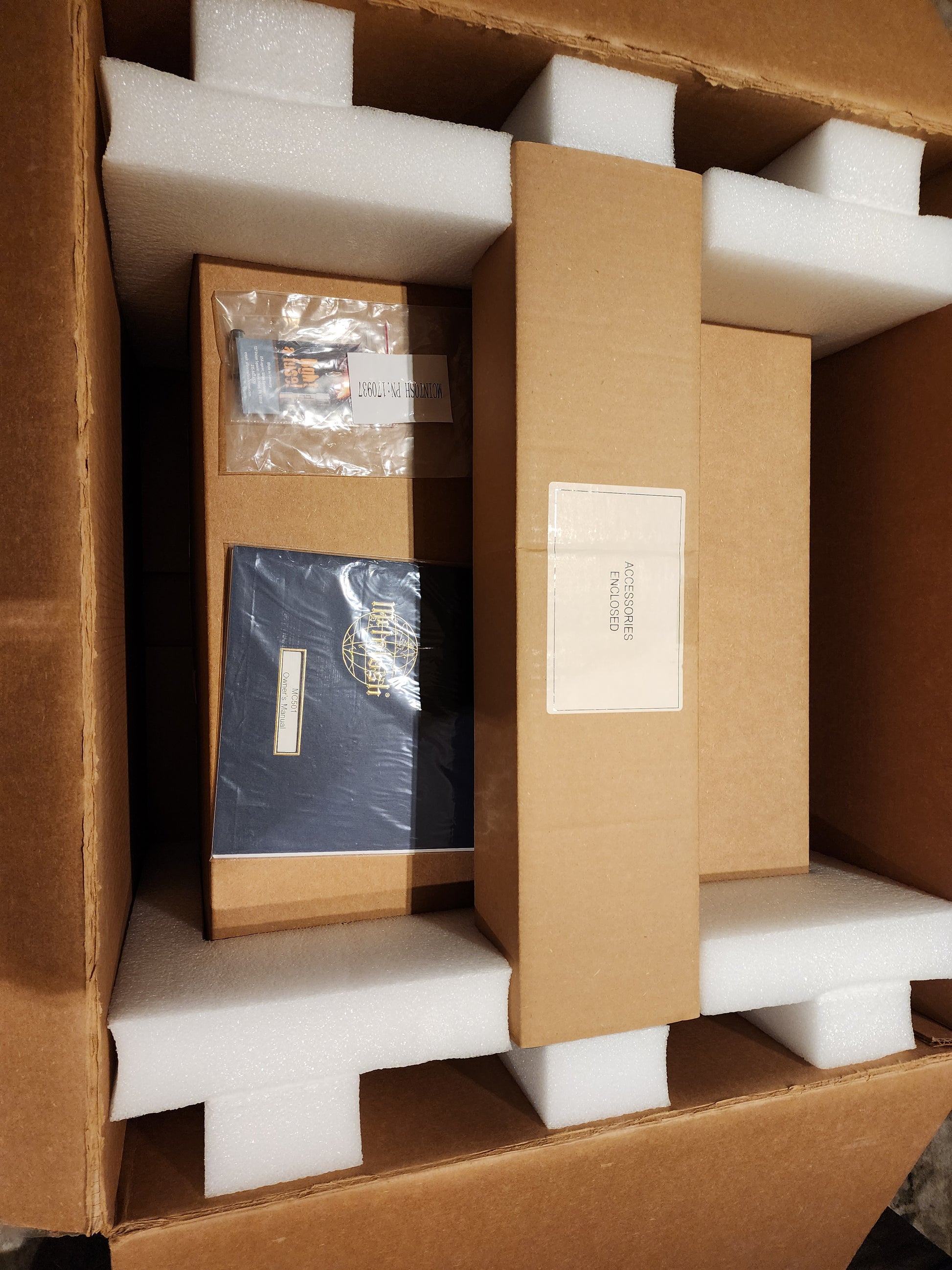

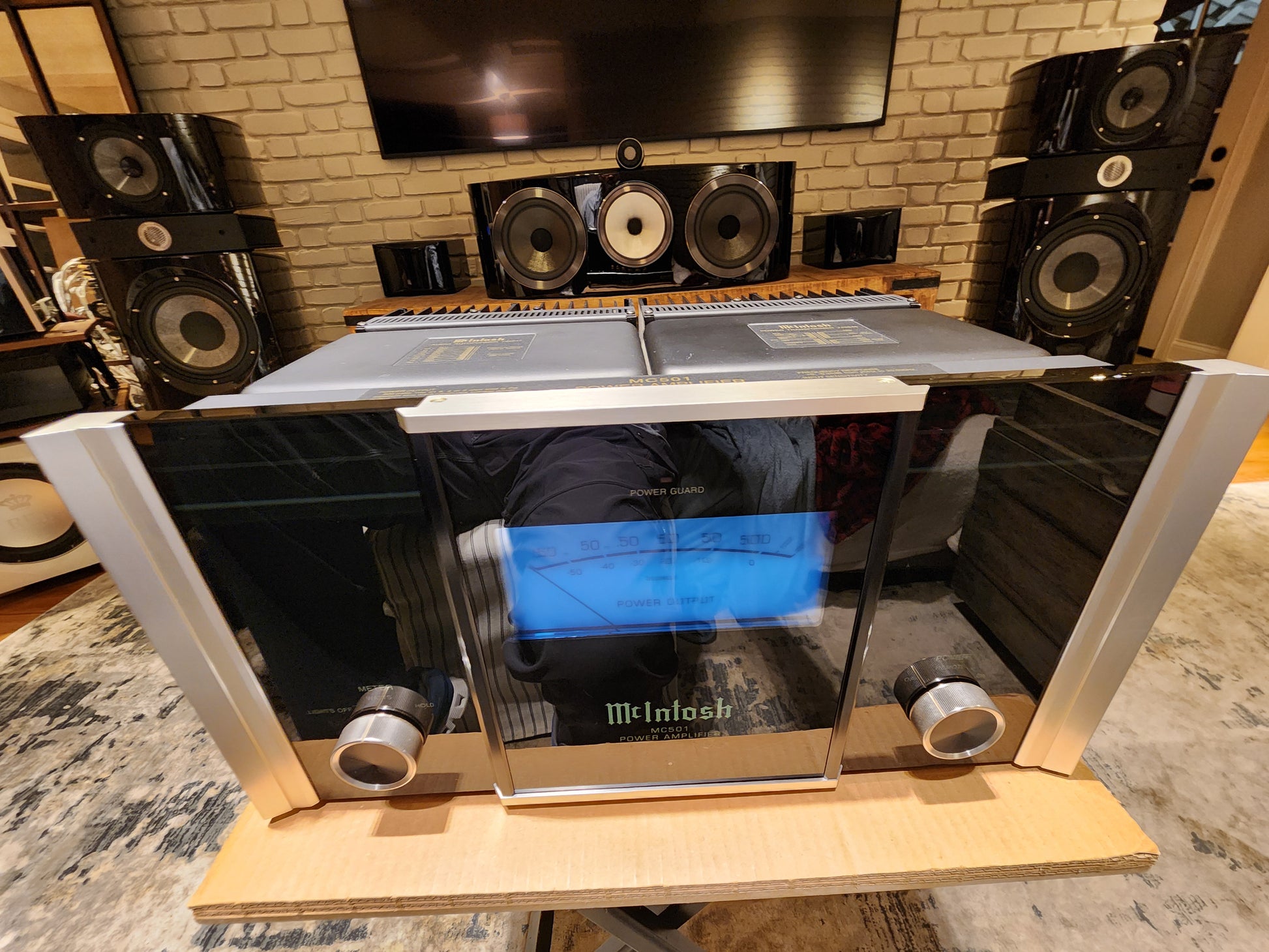

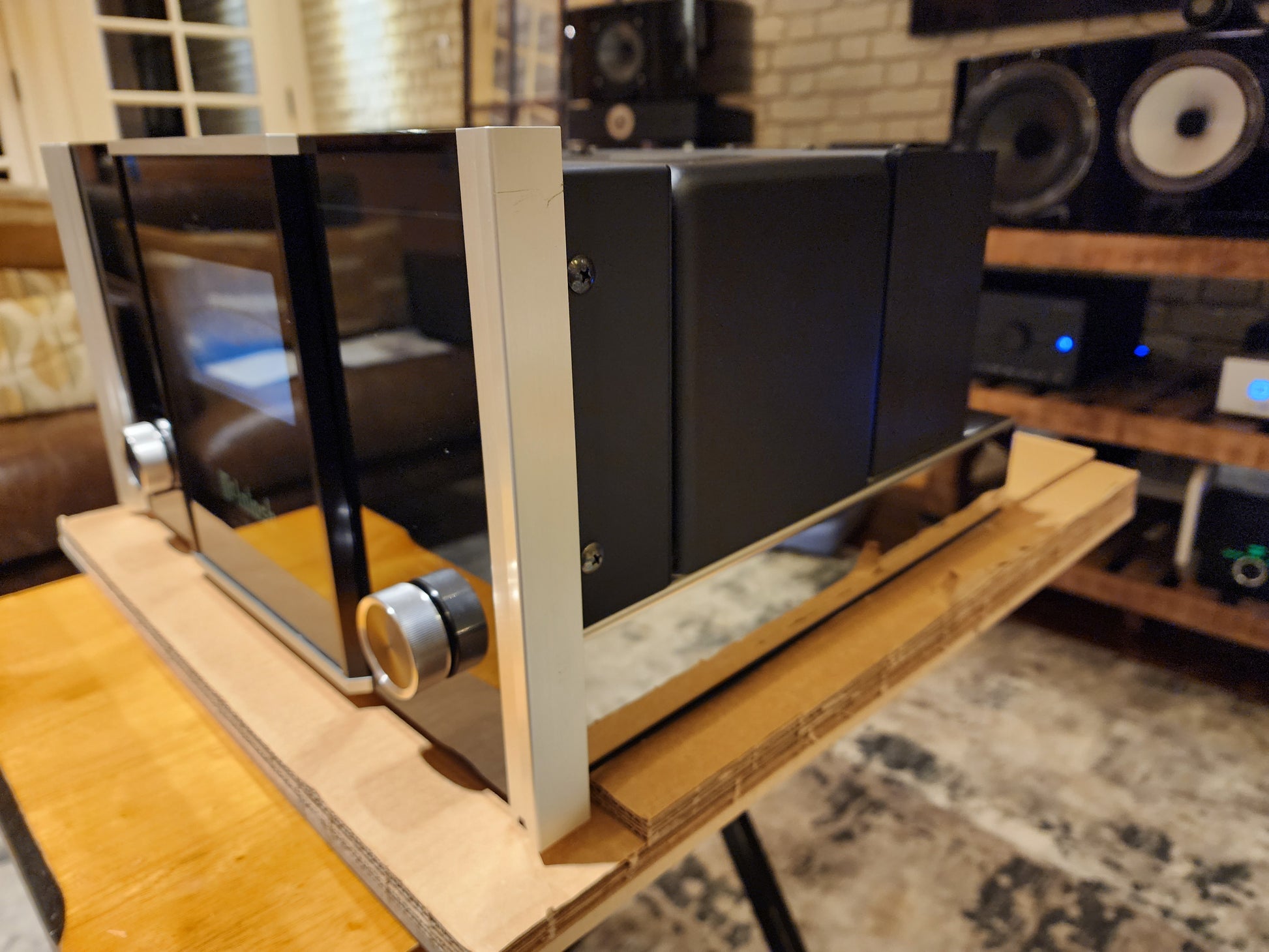

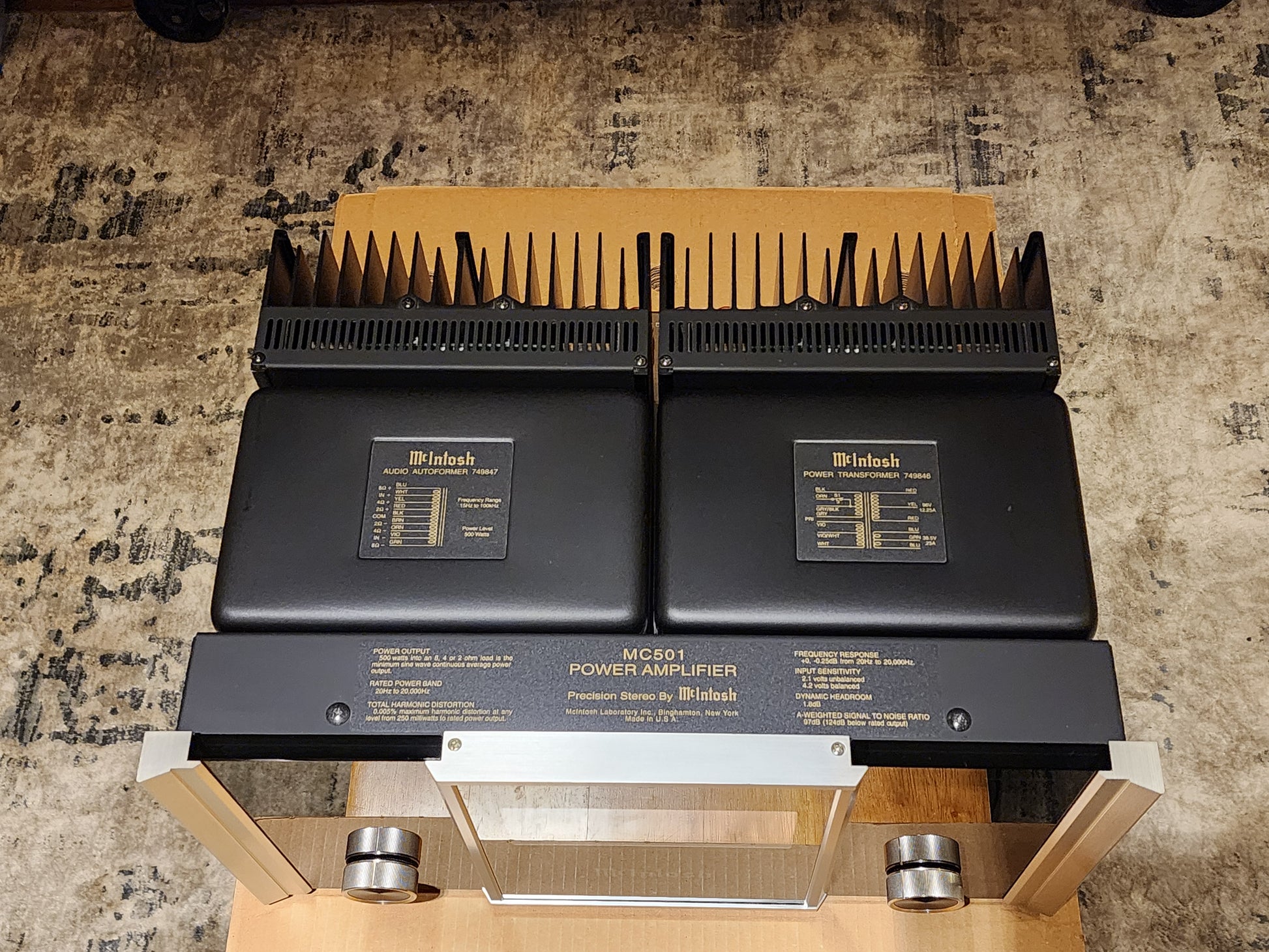

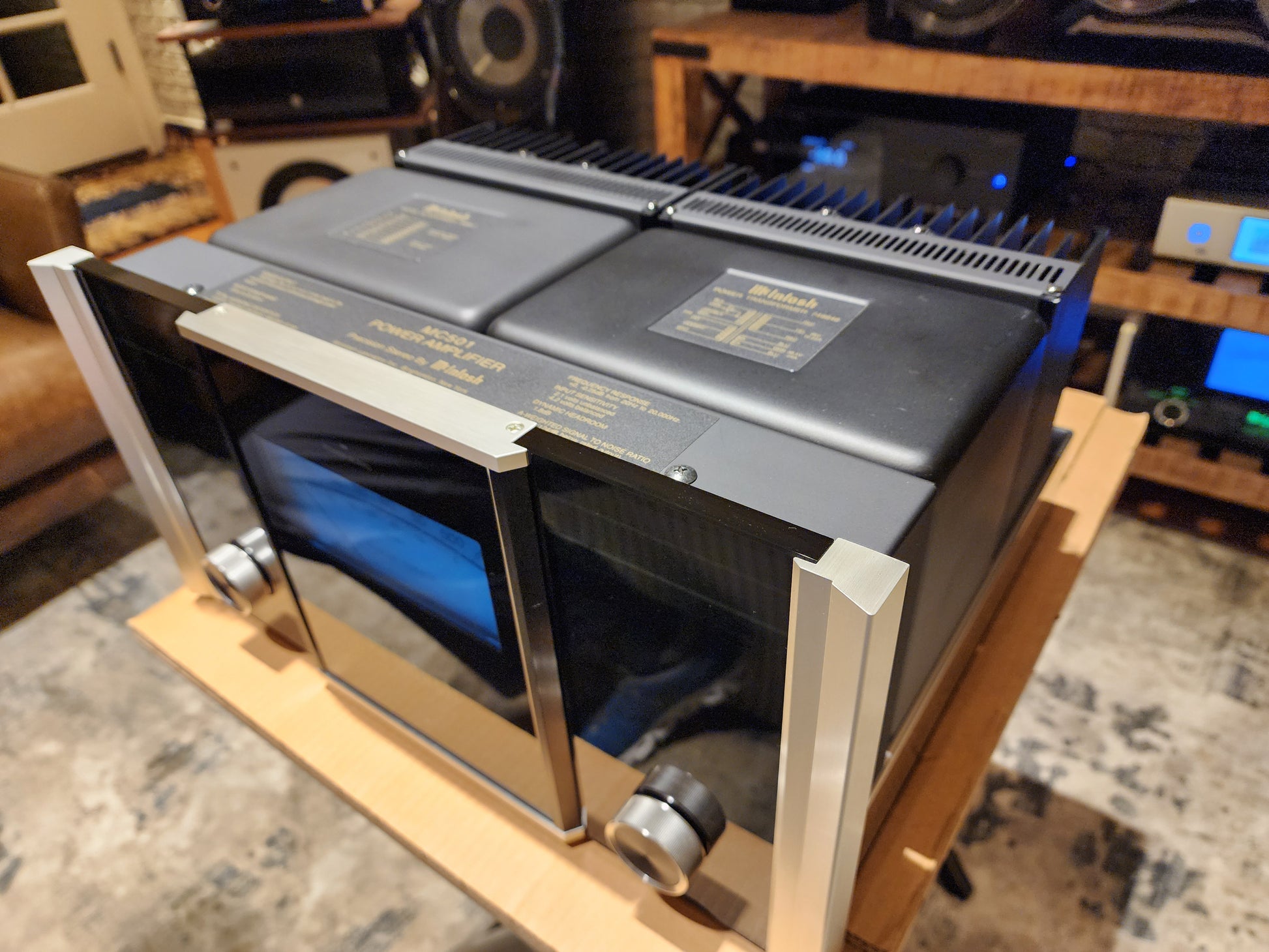

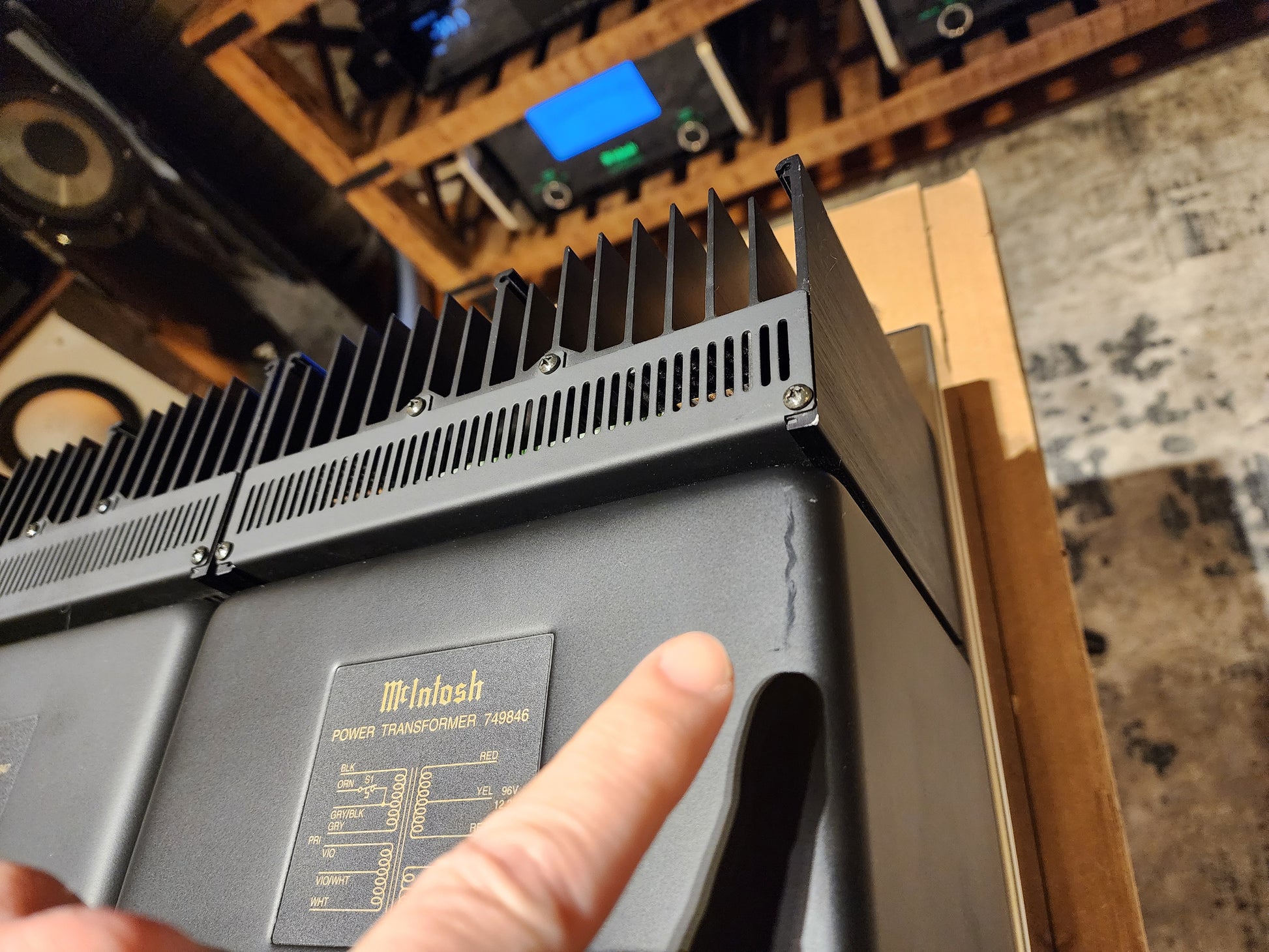

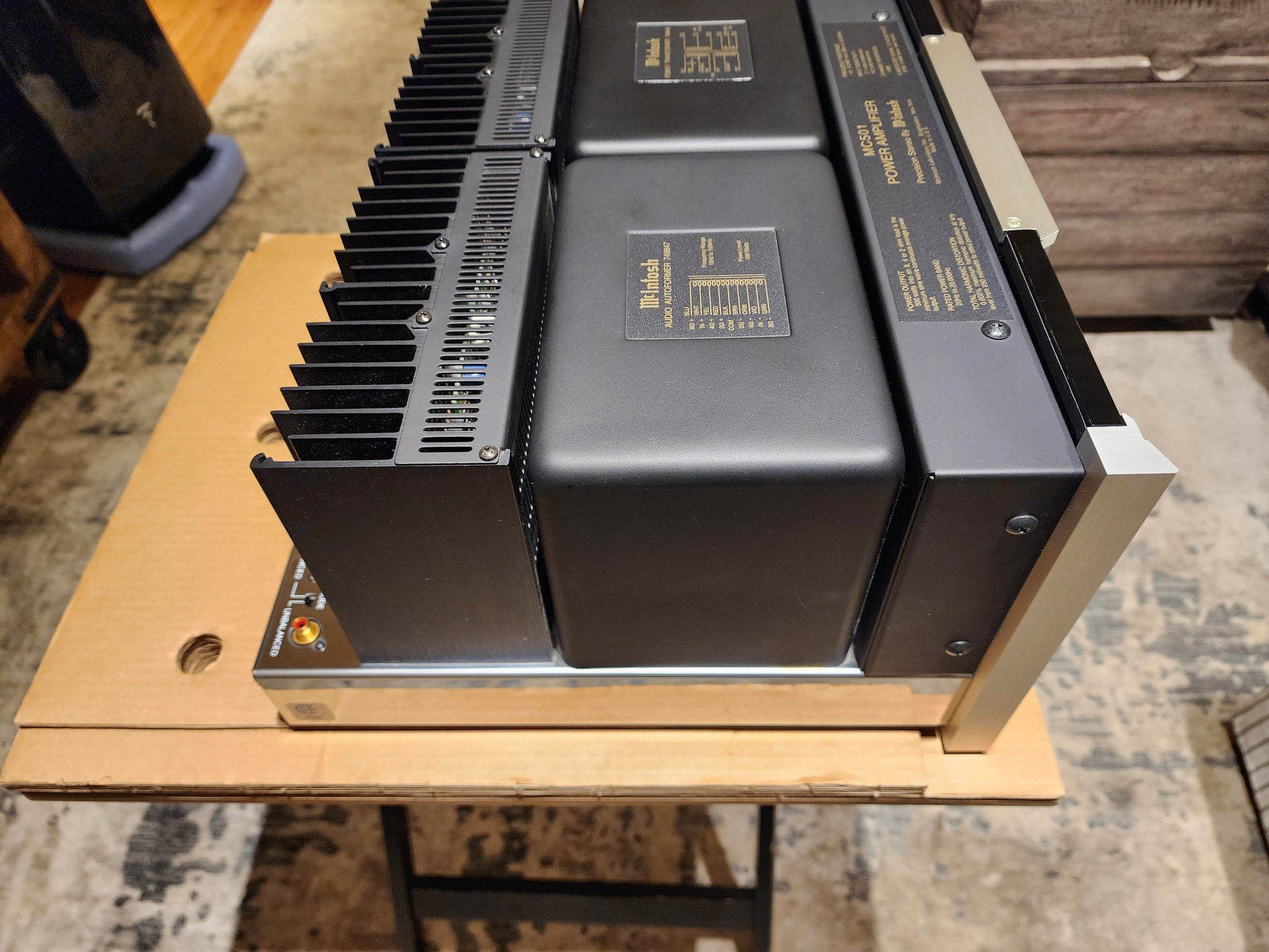

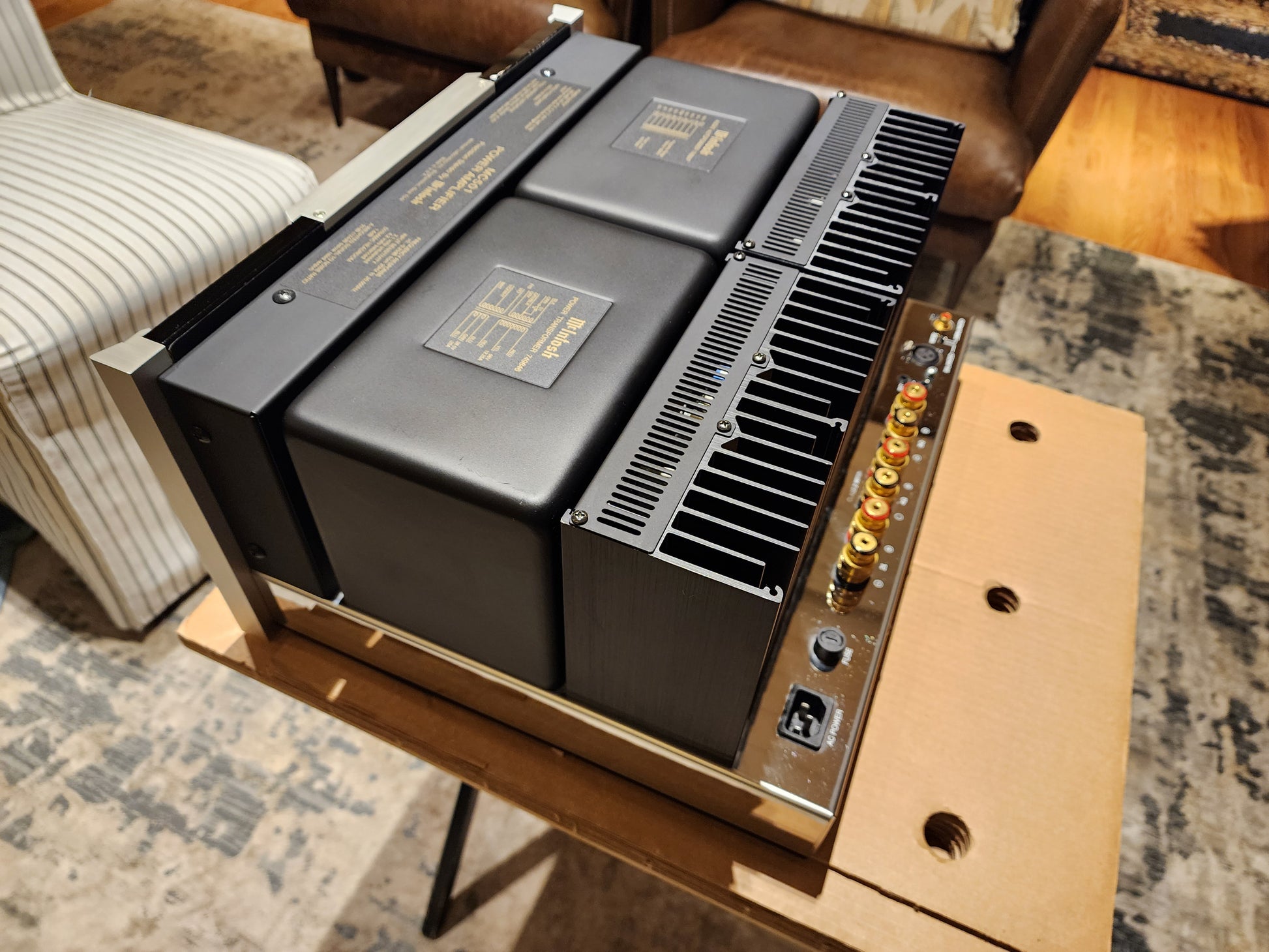

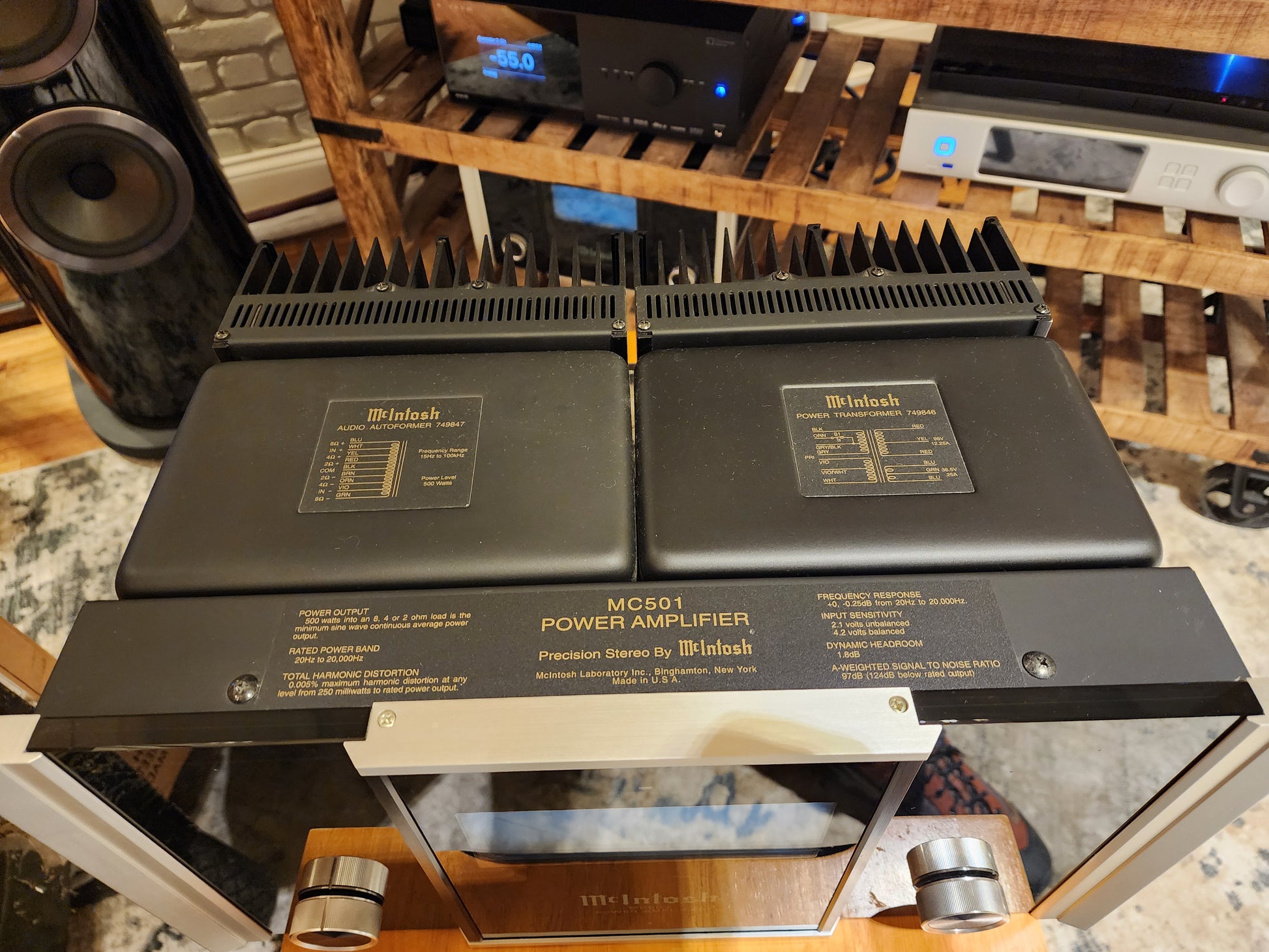

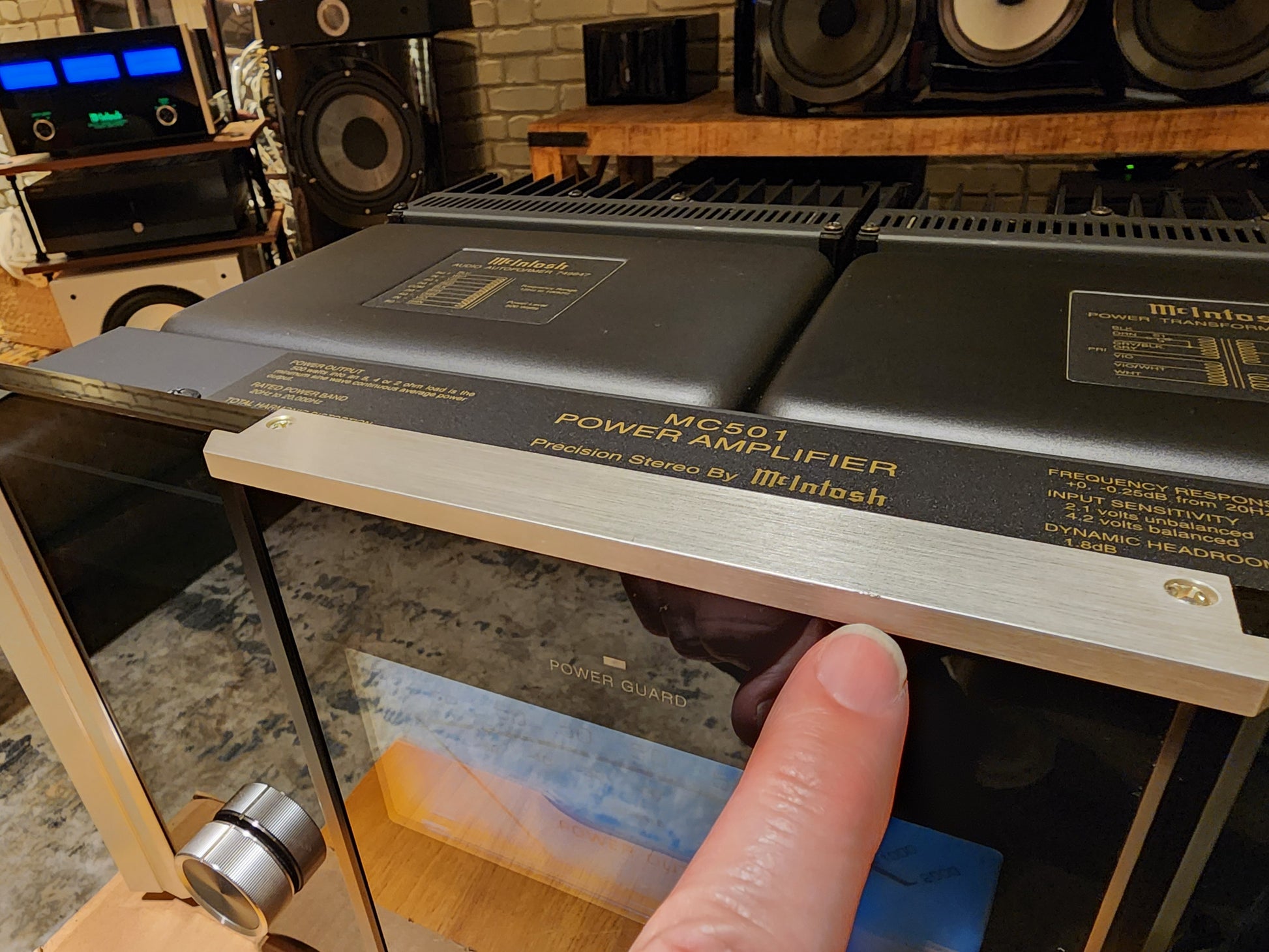

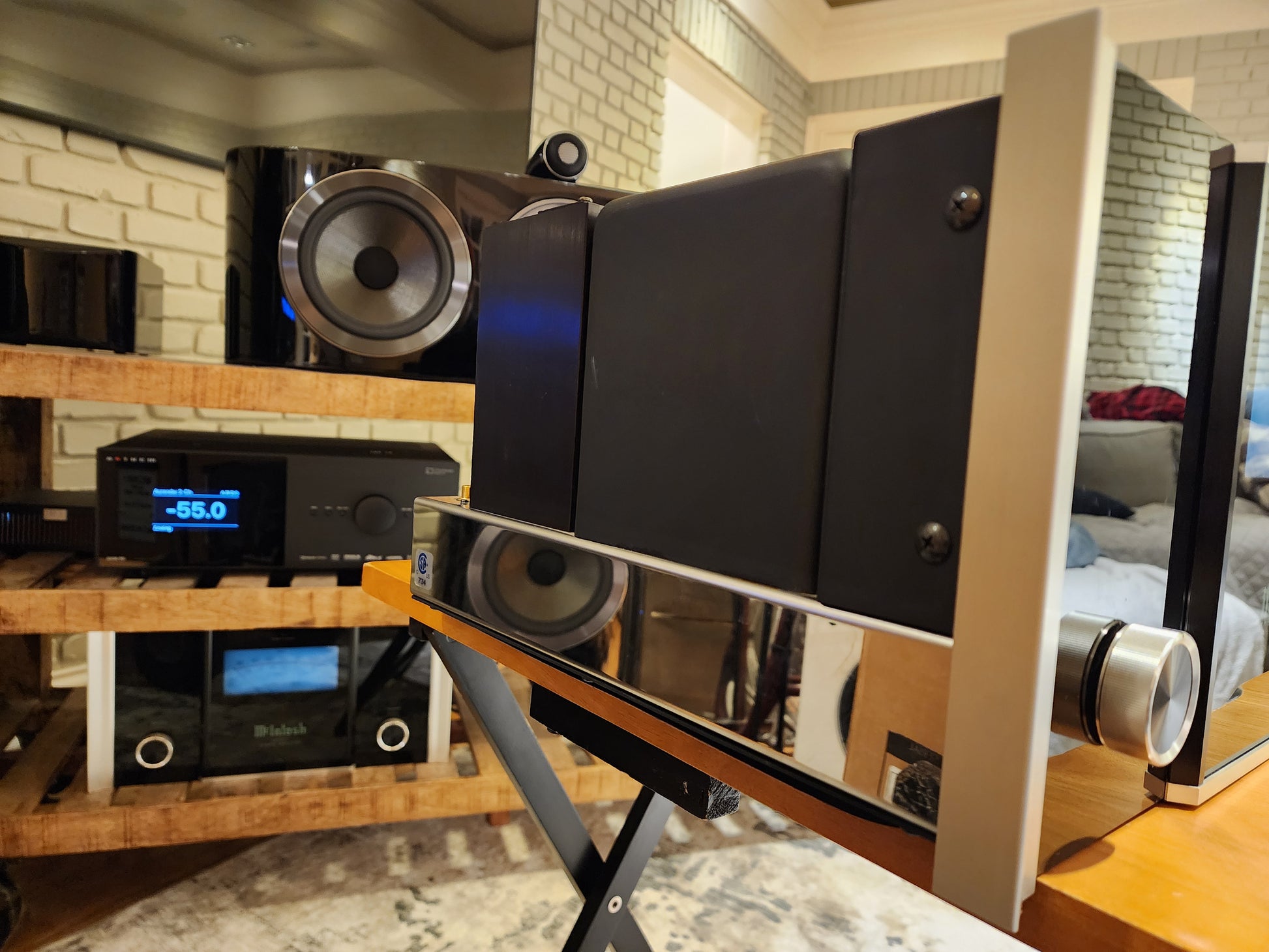

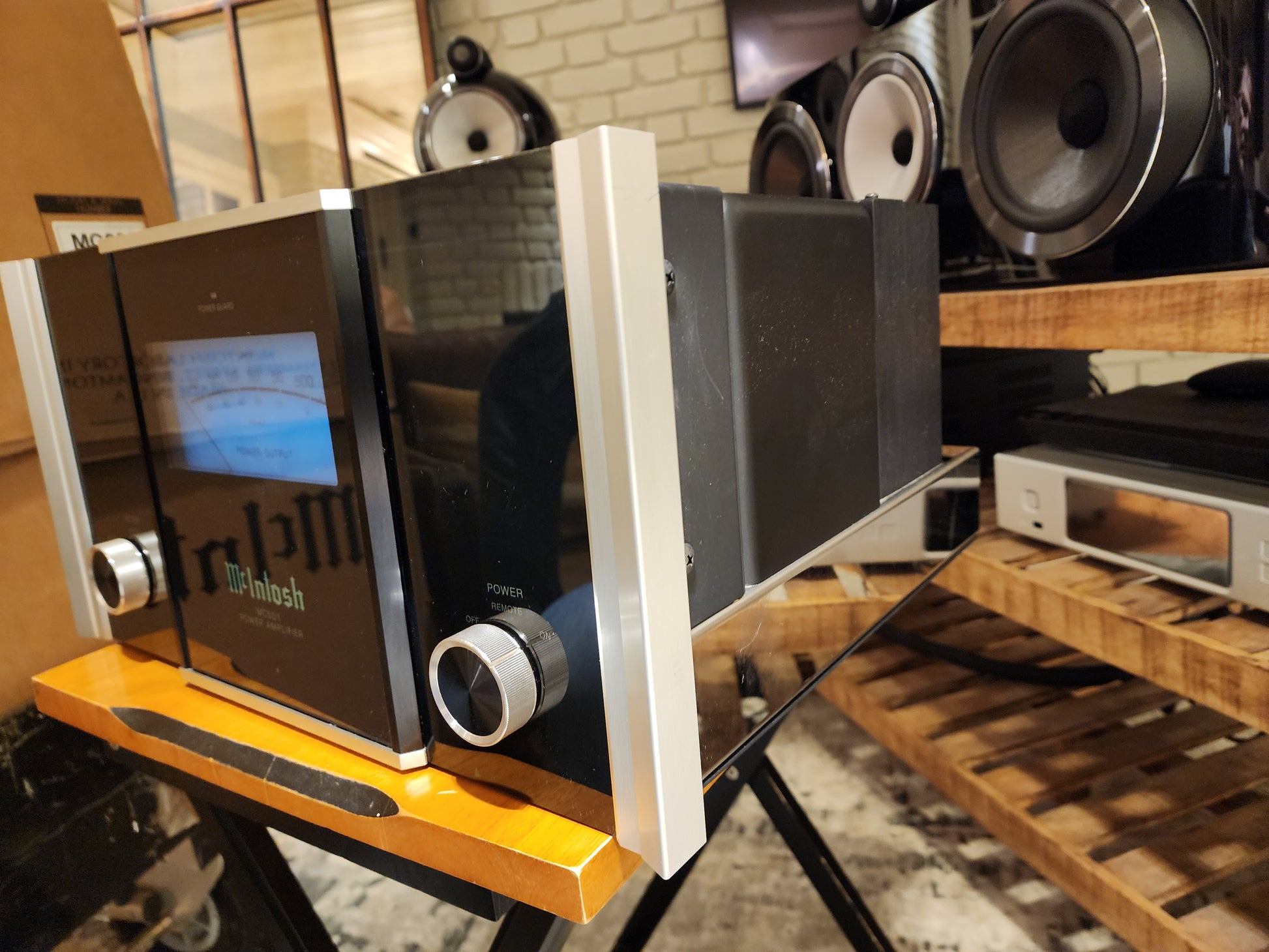

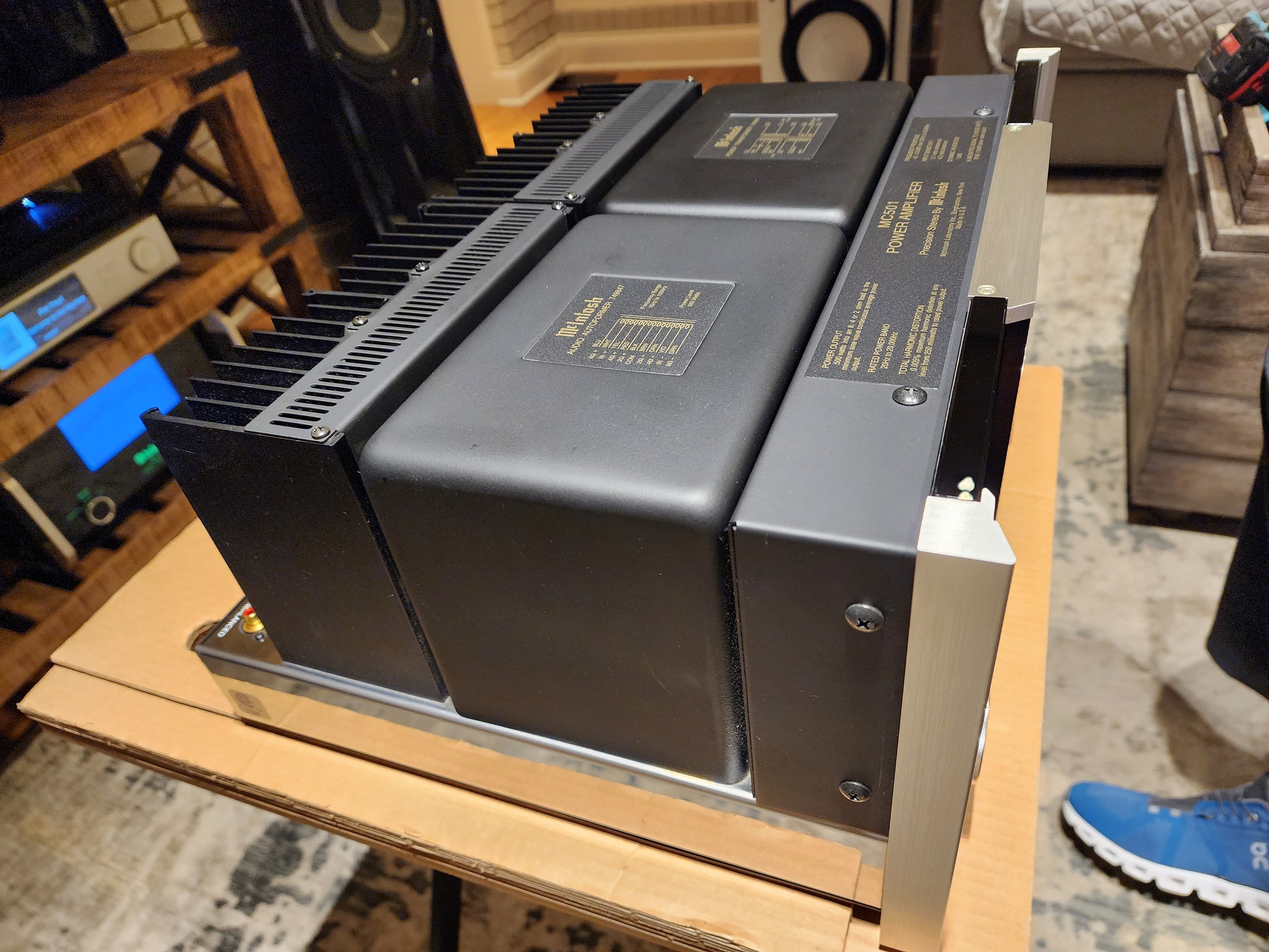

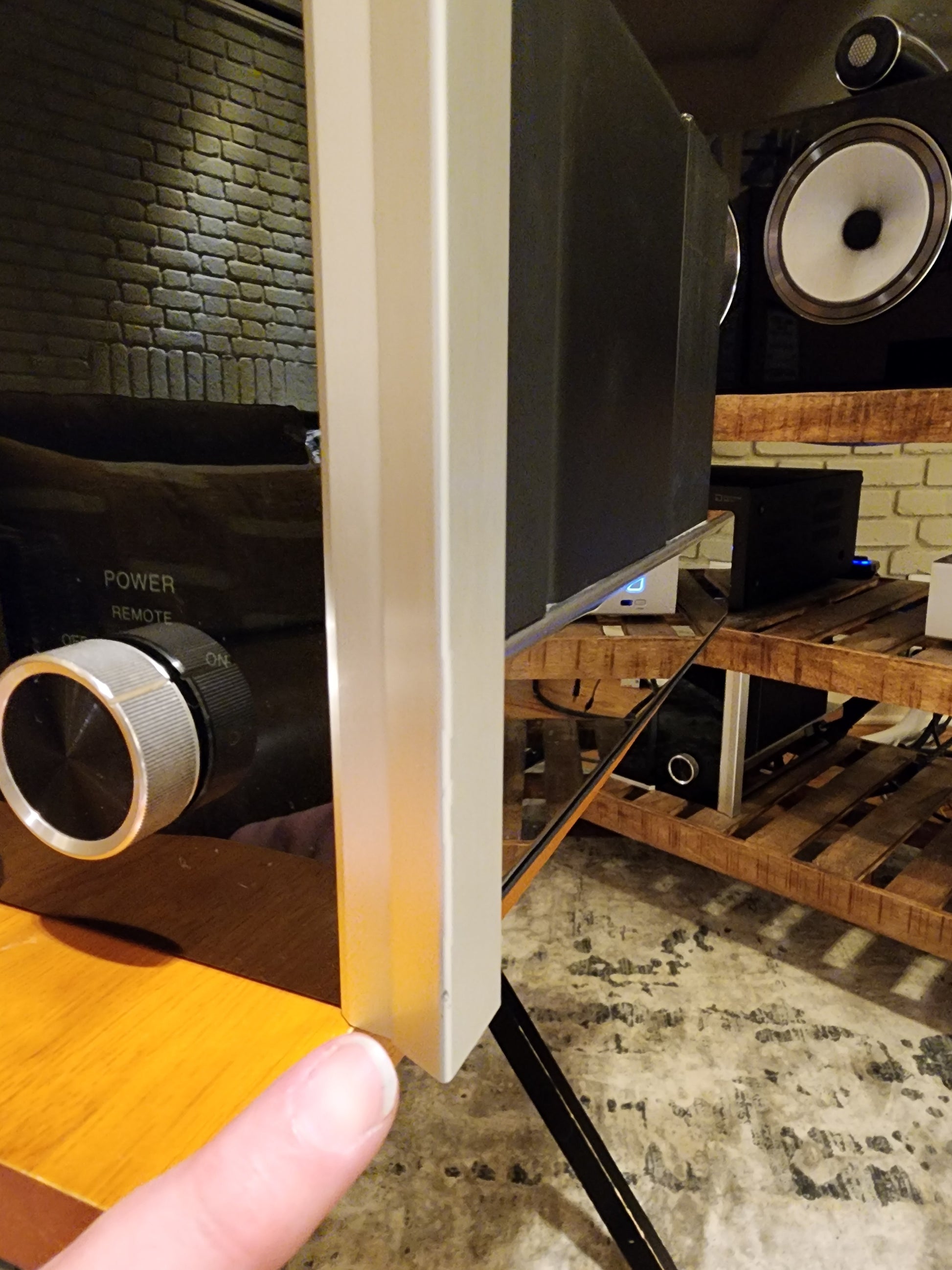

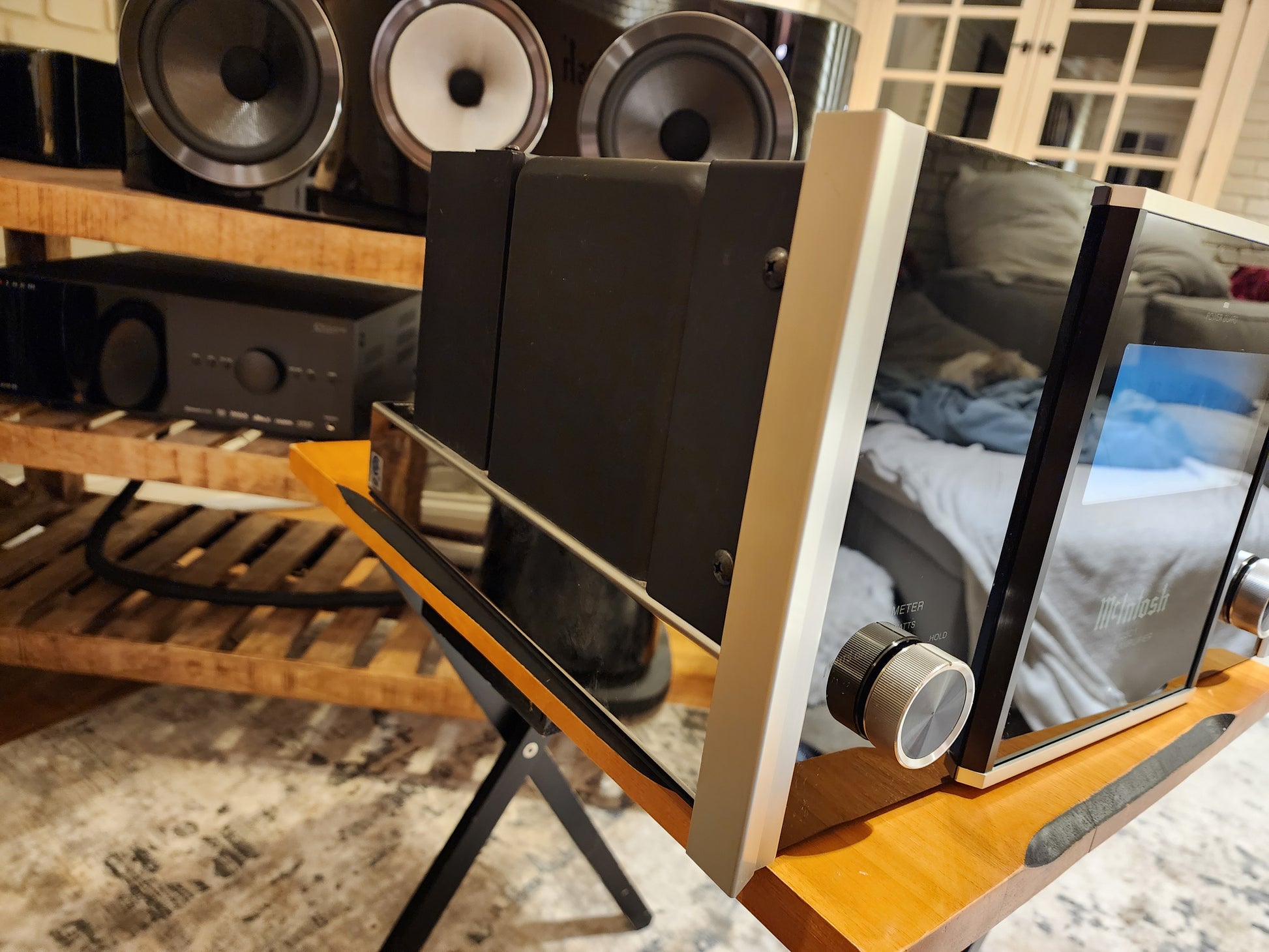

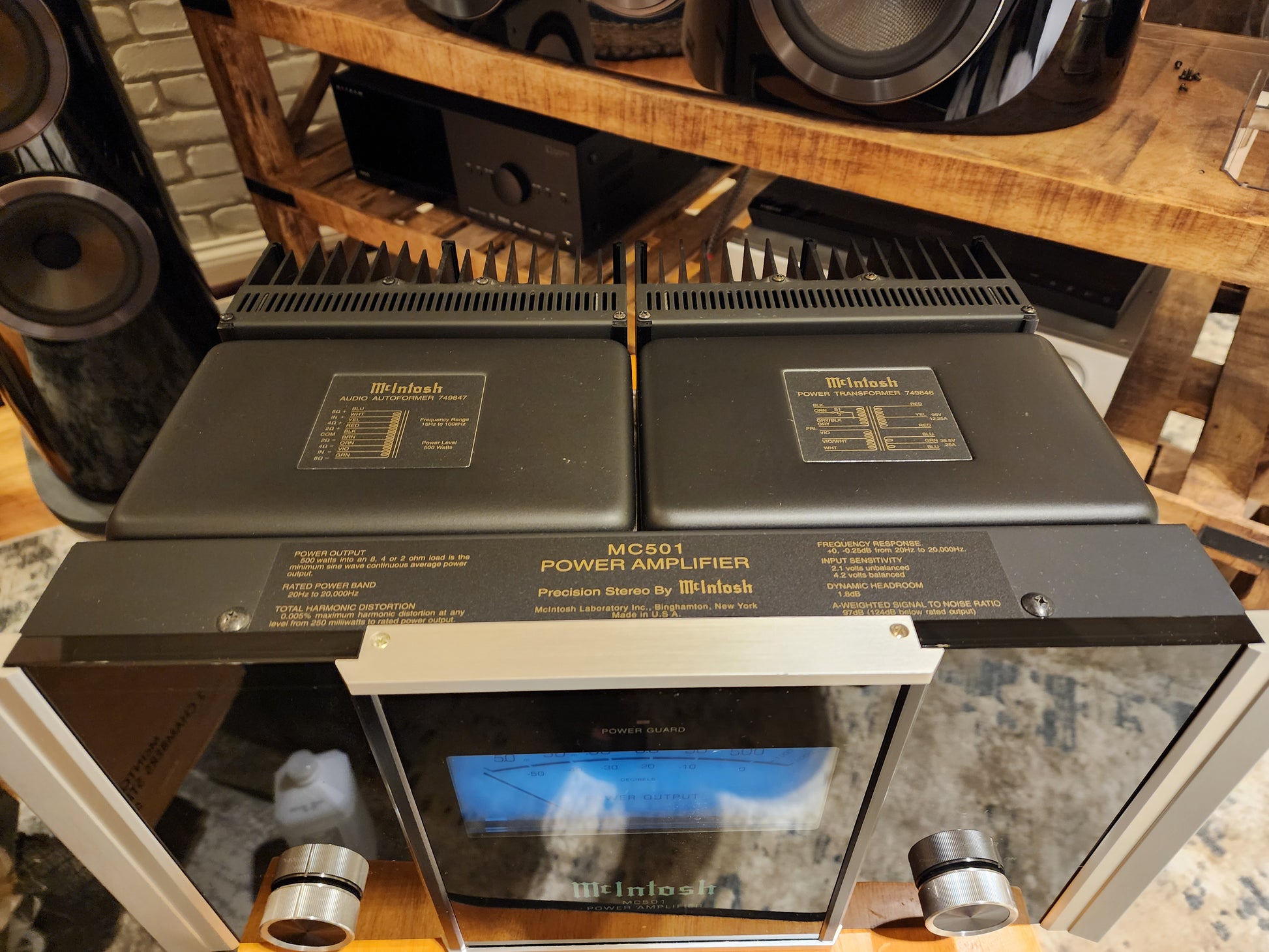

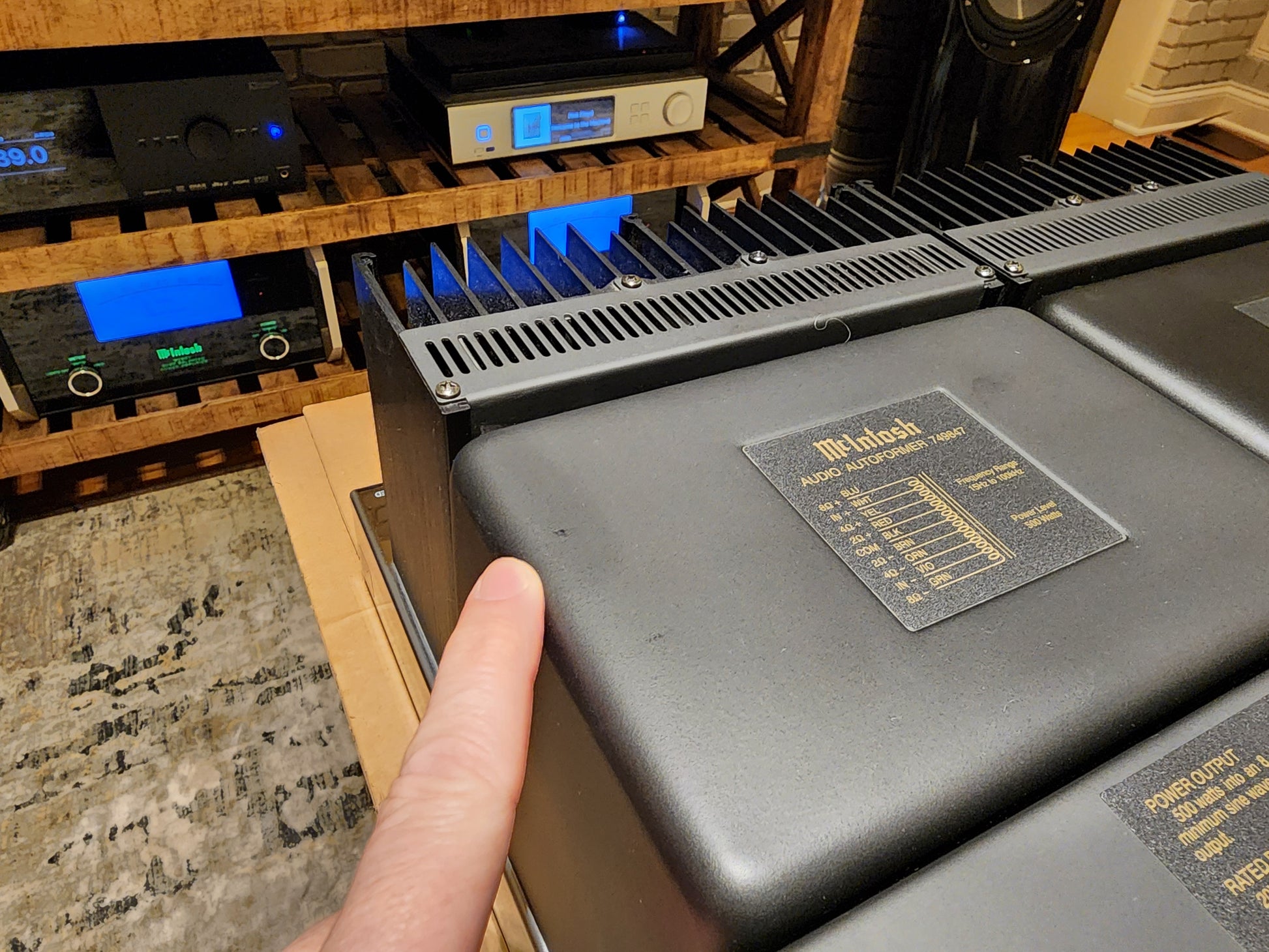

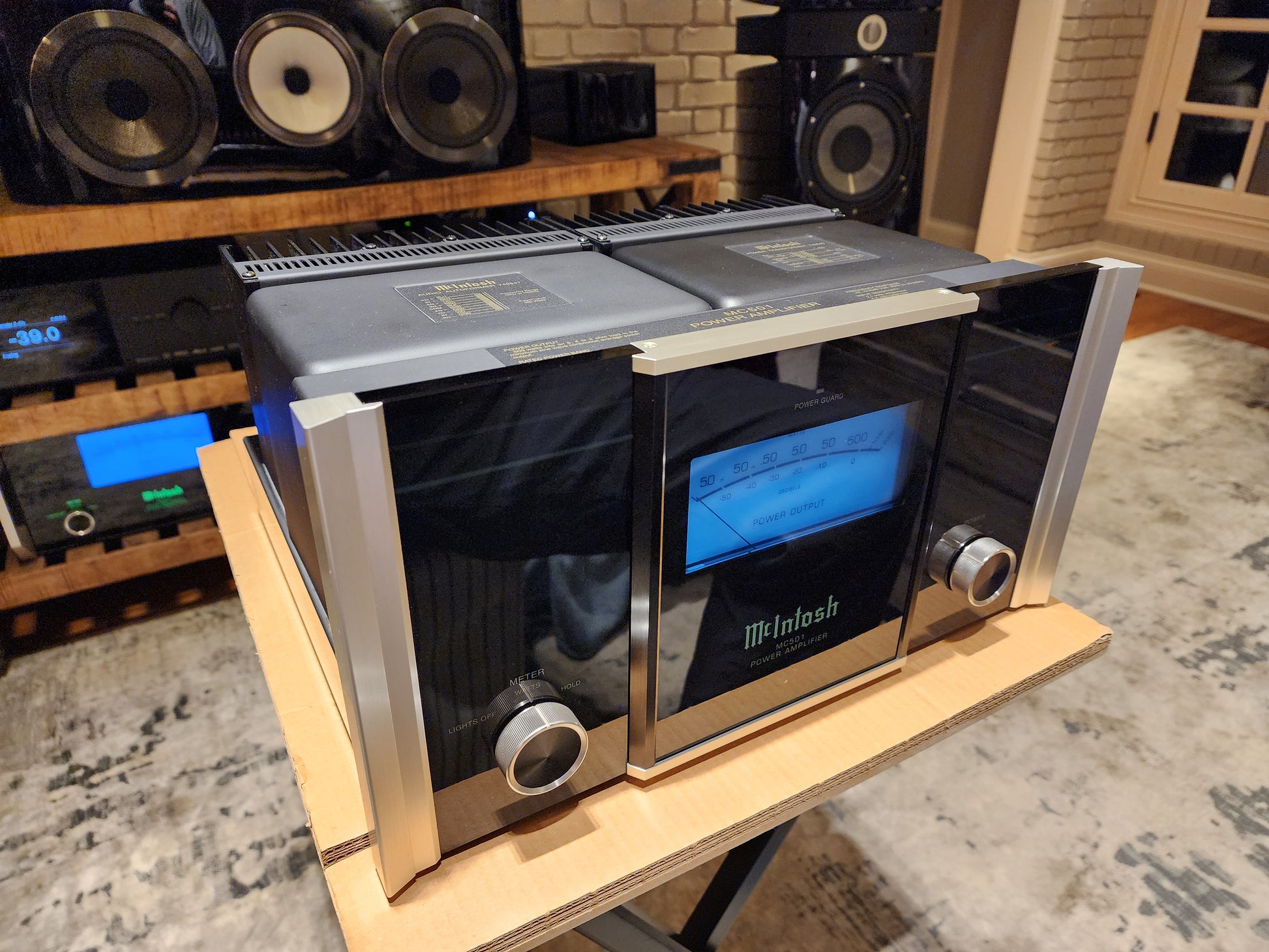

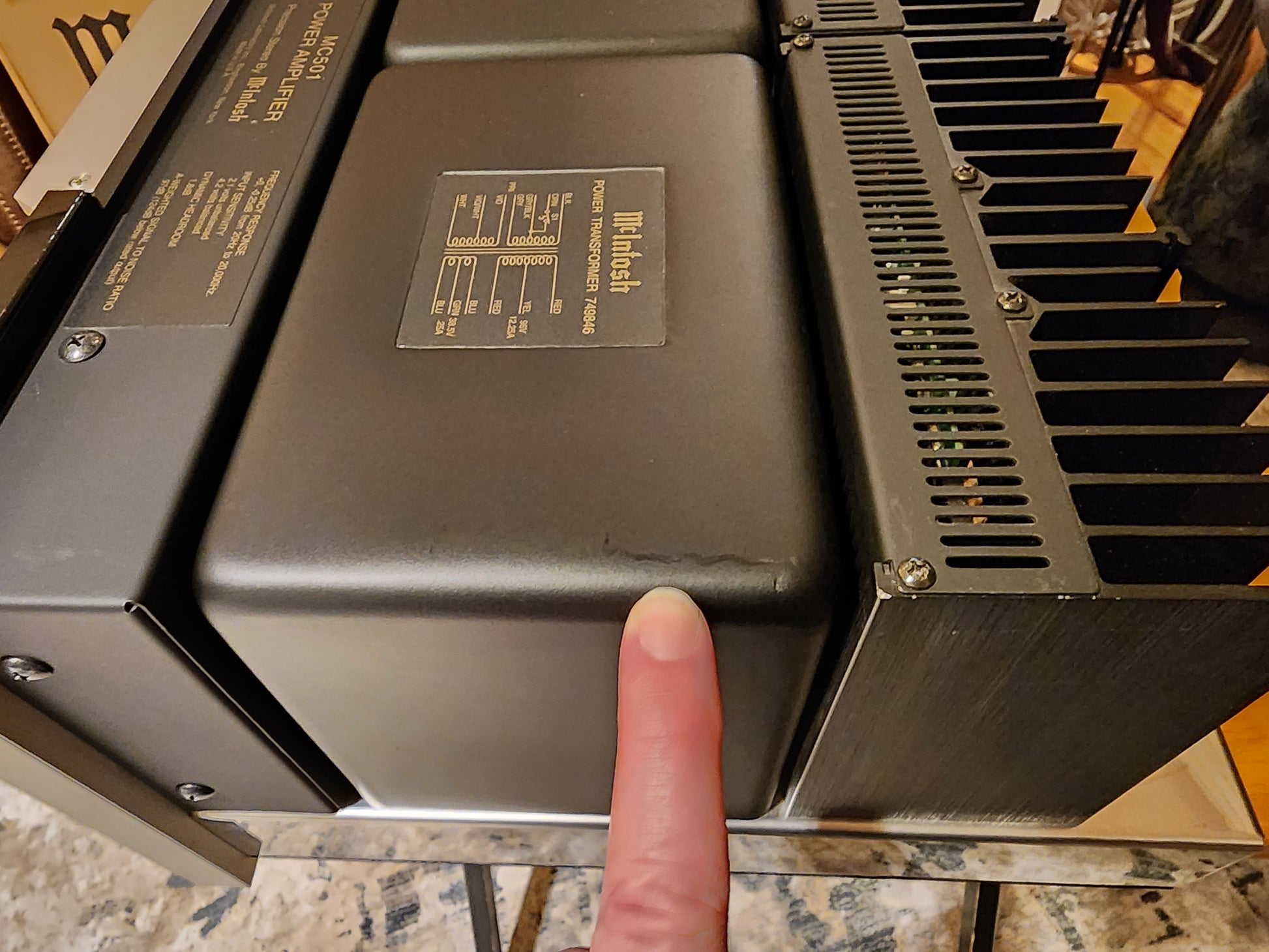

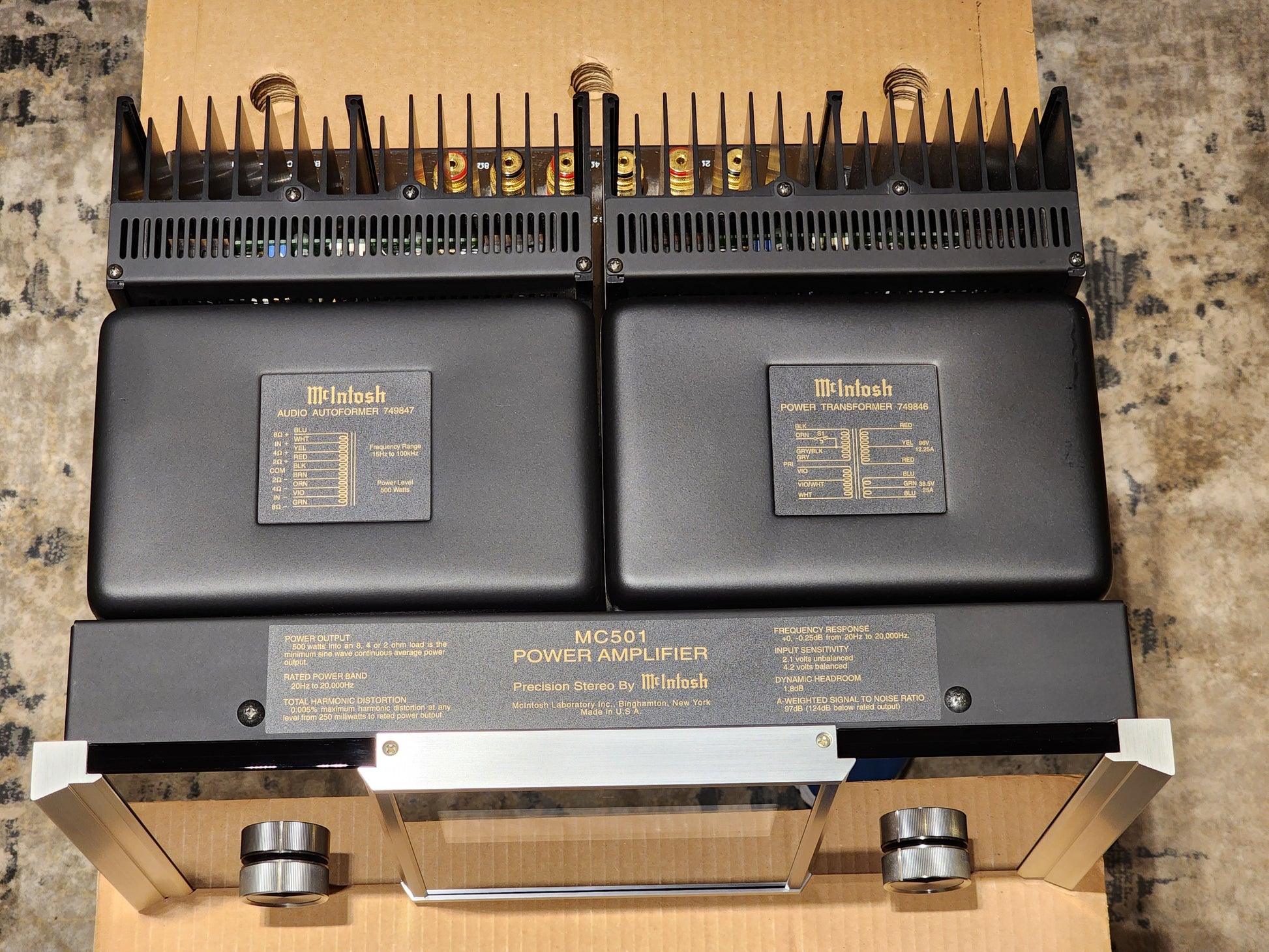

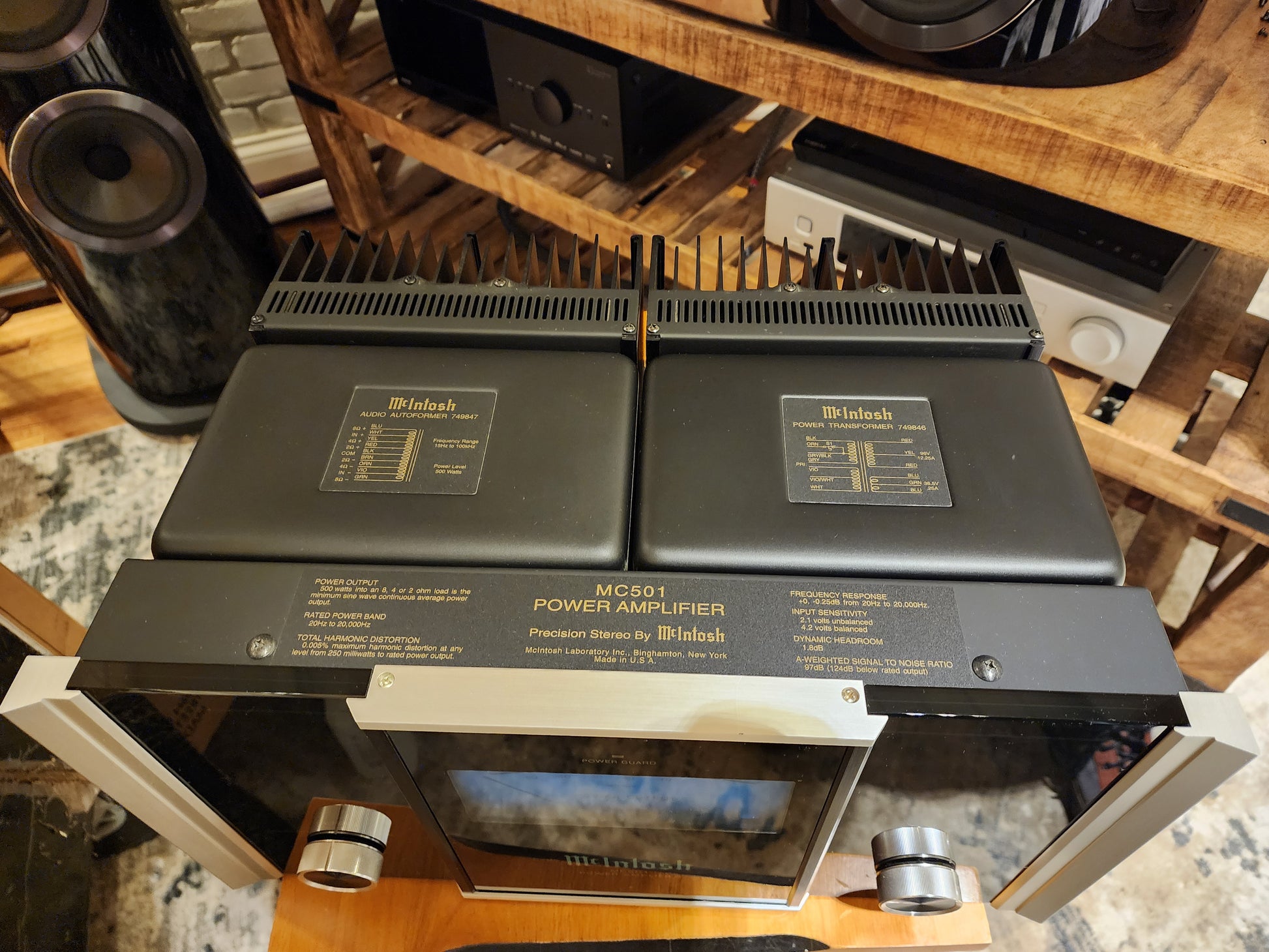

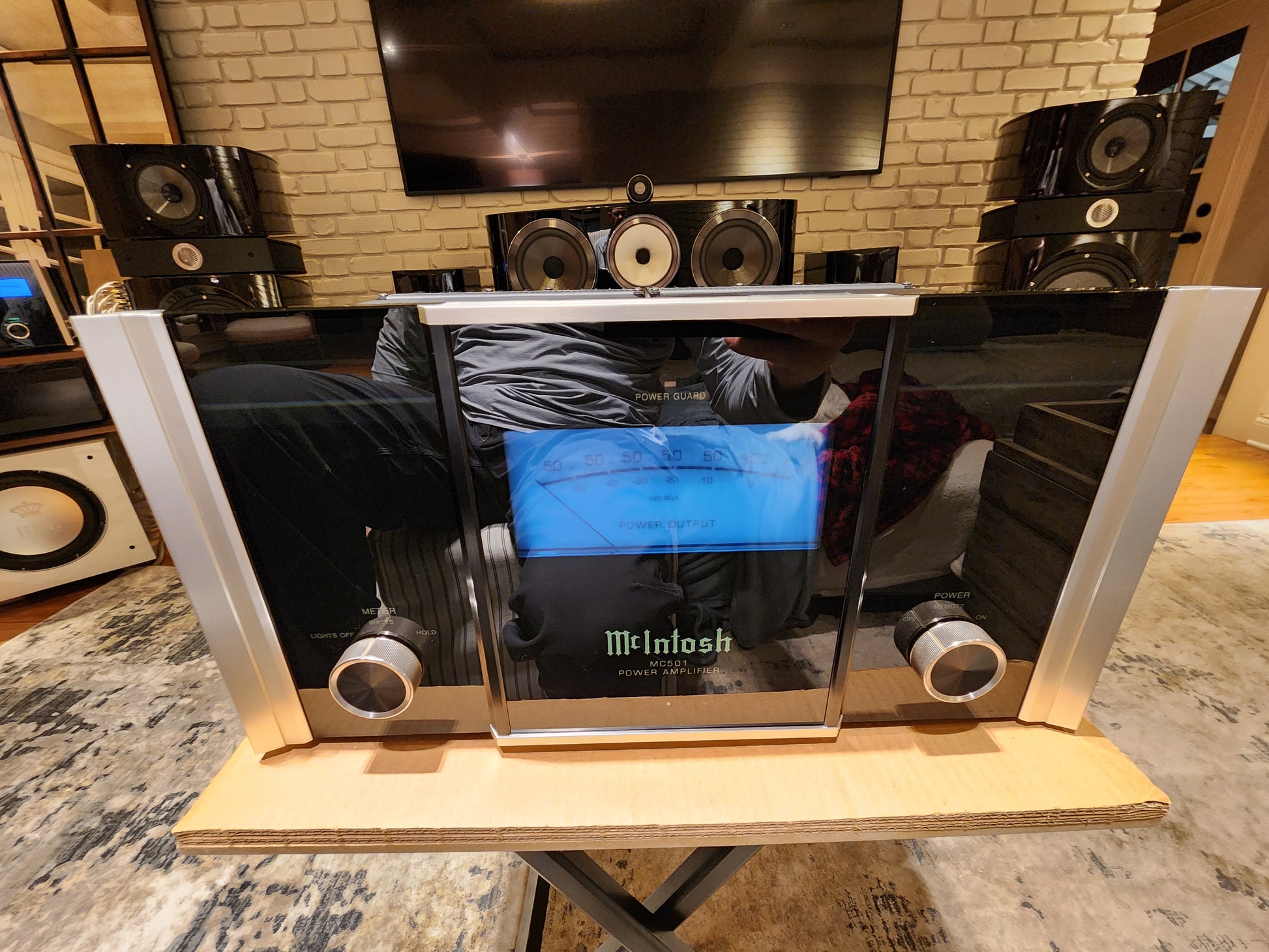

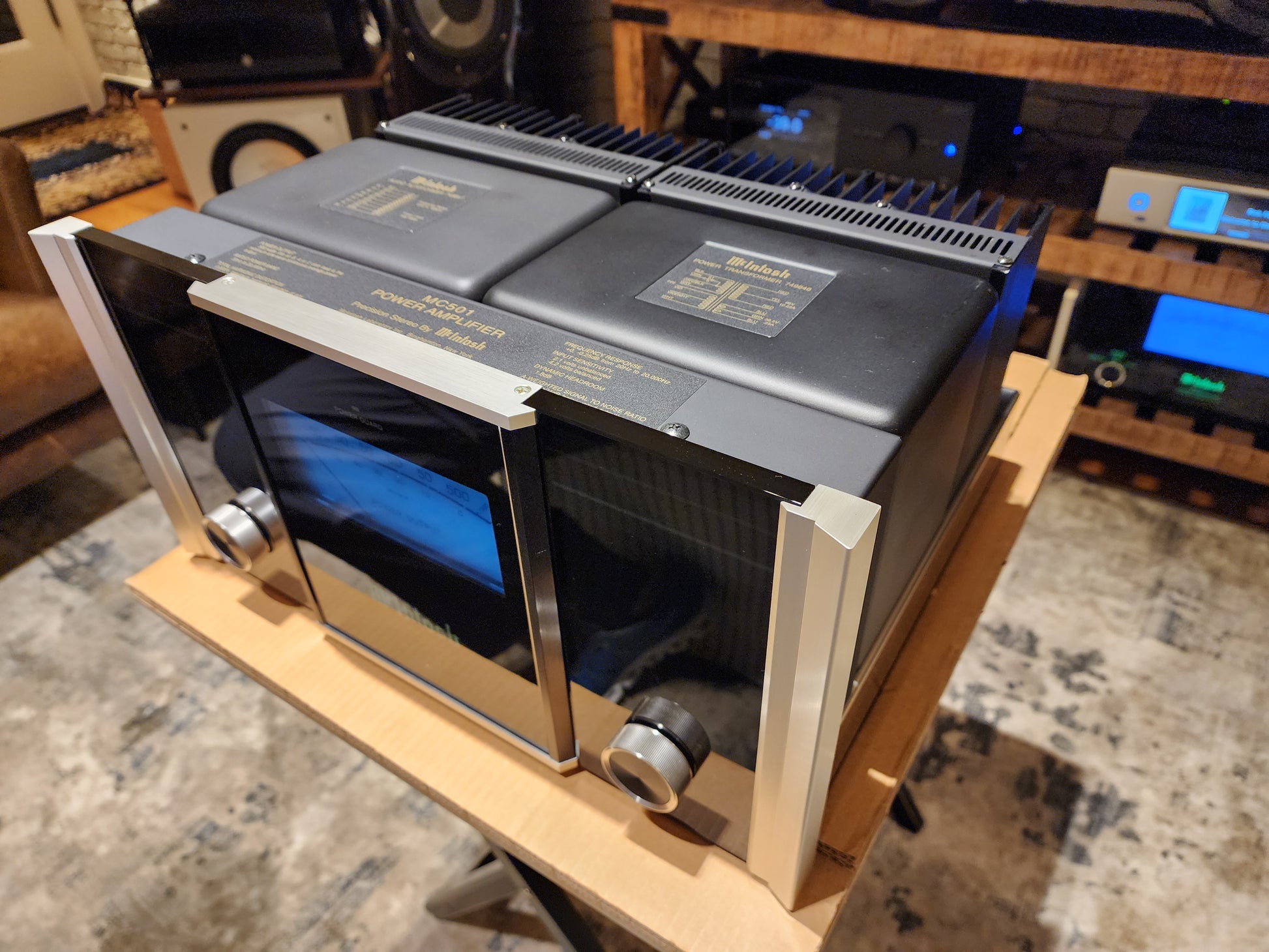

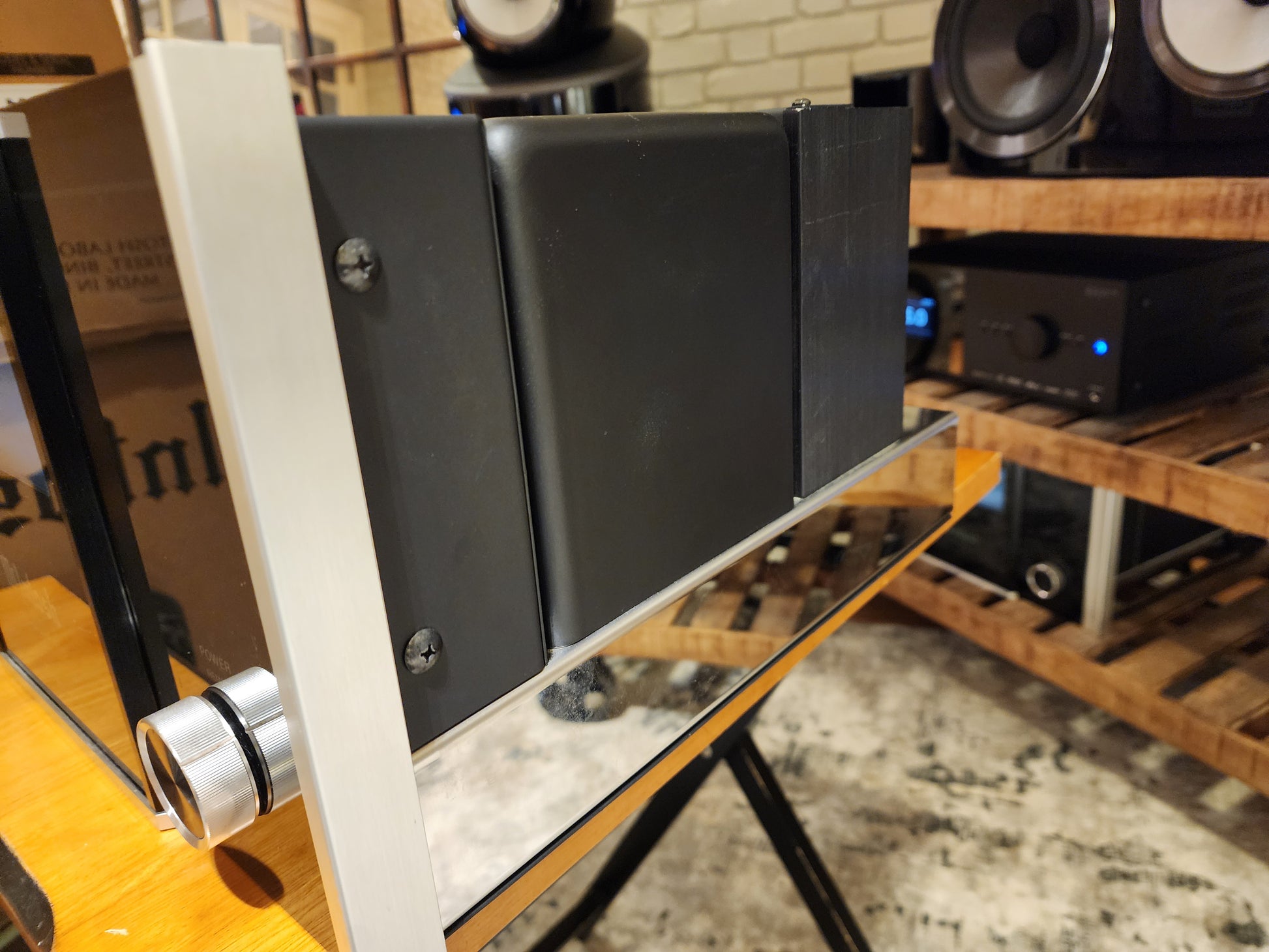

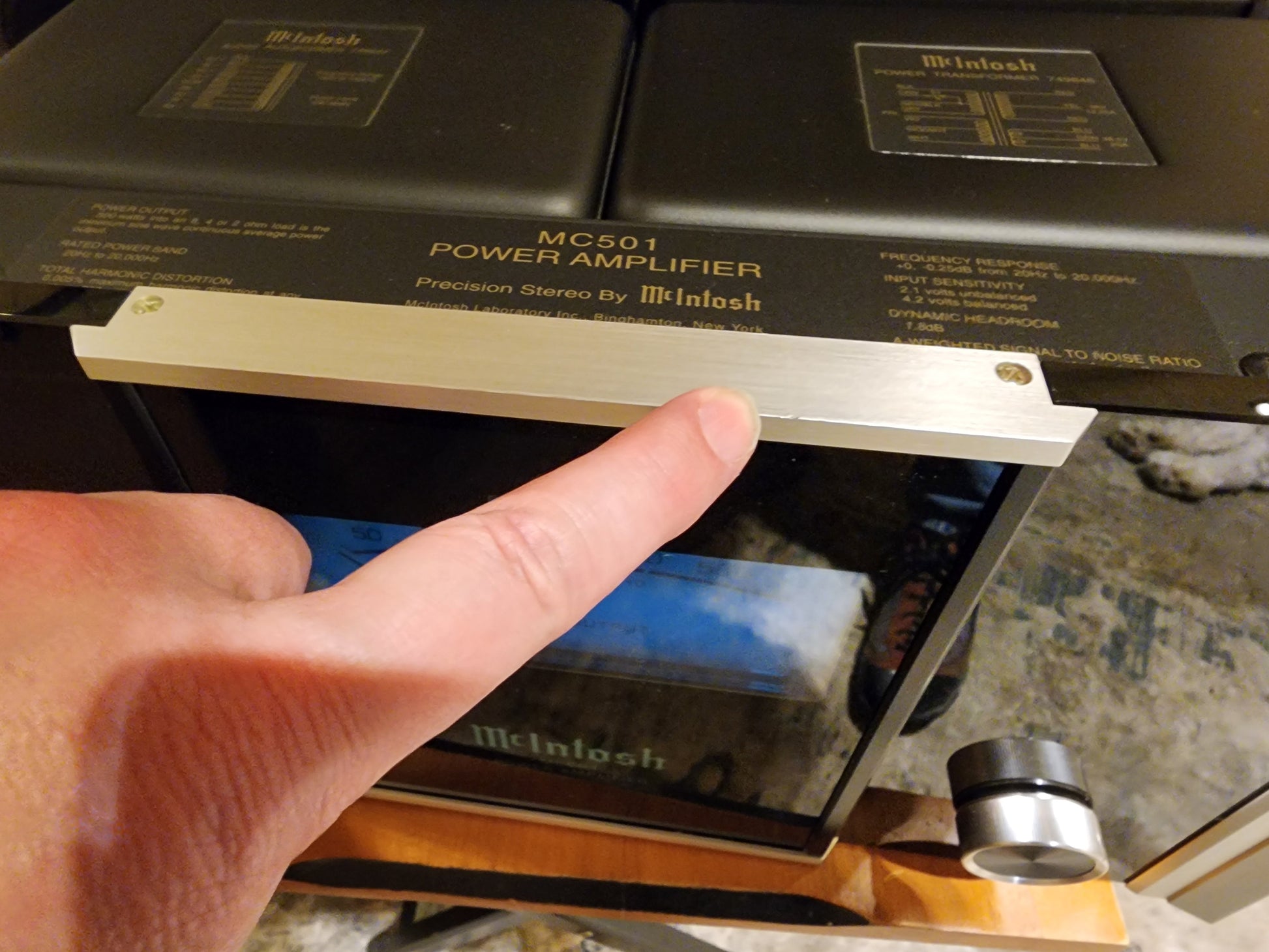

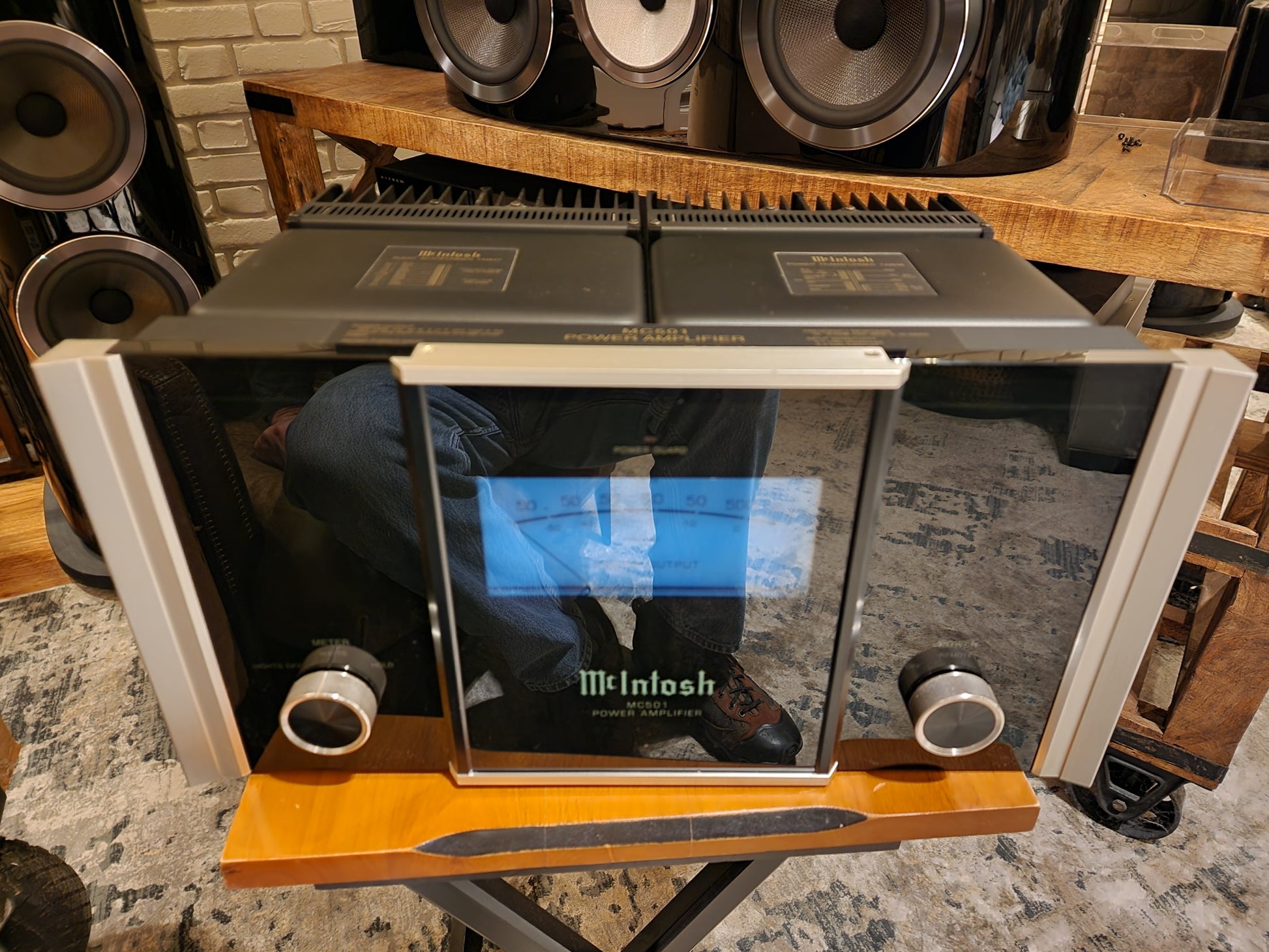

These MC501 dual monoblocks are in very good overall condition and were tested in October 2023 to ensure performance before selling (they passed with flying colors!). Previous G3Fi demo room product with B&W 802 D4s but upgraded the amplifiers to power the demo room's Focal Scala Utopia EVOIIIs, as seen in some of the MC501 pictures. There are a very few cosmetic blemishes as shown in the pictures. Everything else is either a reflection or dust. These monoblocks were purchased from the original owner and original boxes, manuals, and accessories are included.
Stereophile Magazine Review: McIntosh MC501 monoblock power amplifier | Stereophile.com
The MC501 Monoblock Power Amplifier has been designed to meet the expectations of
the most demanding audiophile. Delegating an individual amplifier to each speaker eliminates any chance of interaction between channels and expanding into multi-channel formats is as easy as adding additional amplifiers. Quad-Differential Circuitry, exclusive to McIntosh, reduces noise and distortion to their lowest possible level. While the MC501 delivers a massive 500 watts continuous power into 2, 4 or 8-Ohms and over 1200 watts of peak power into low impedances, its noise levels are 124dB below rated output. This means that the MC501 combines super-high power with record-low levels of noise…nearly an impossible combination!

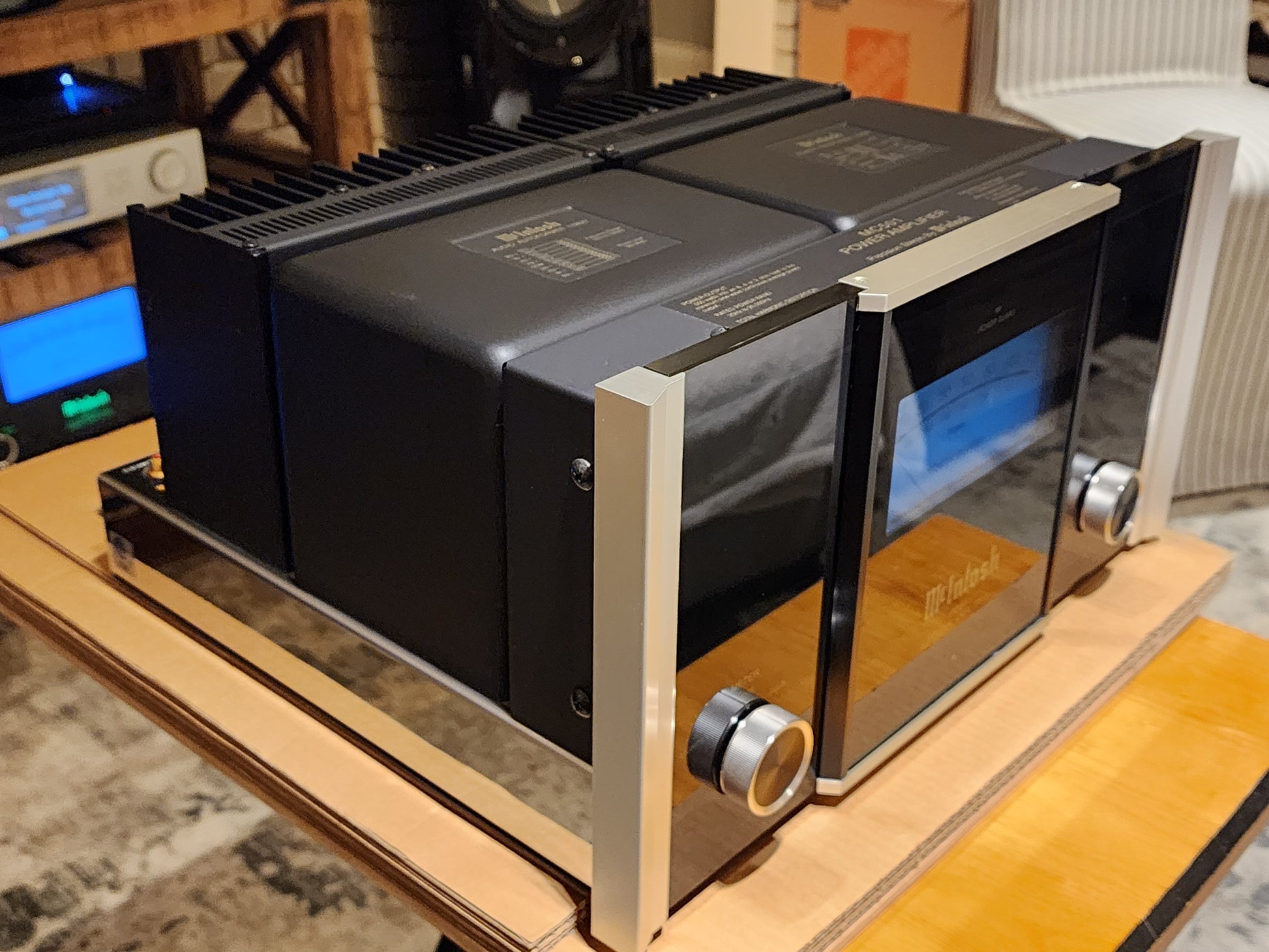

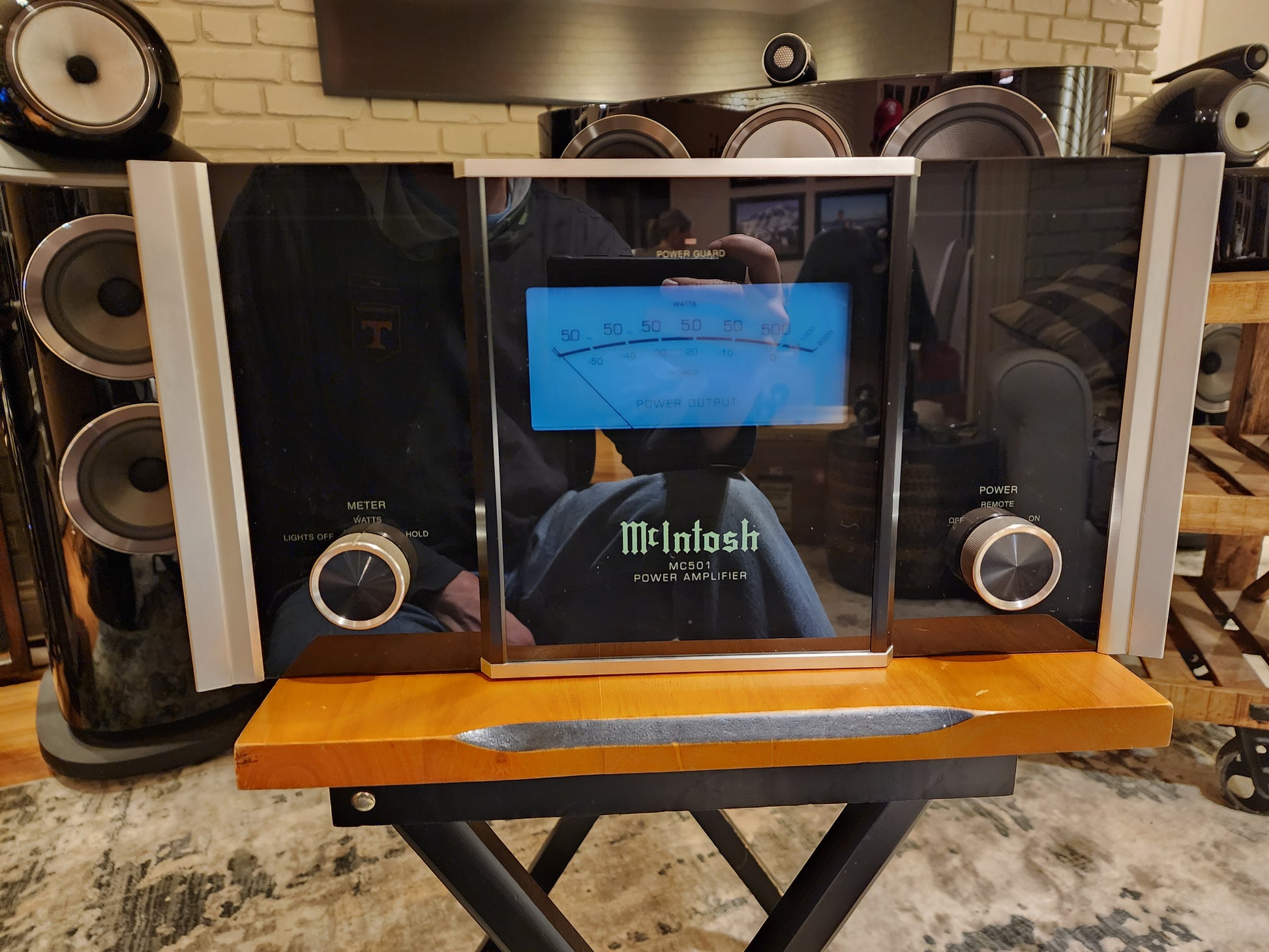

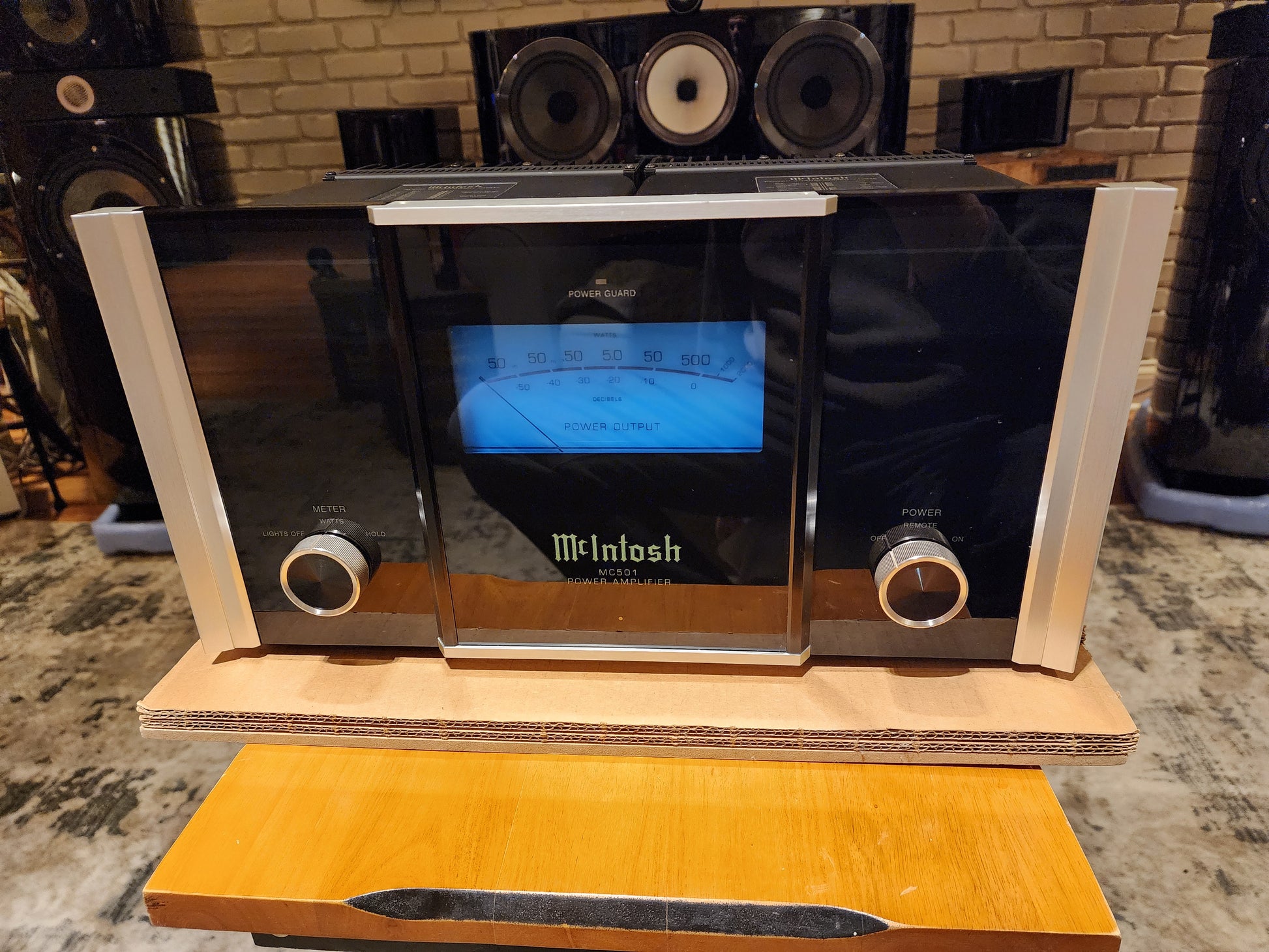

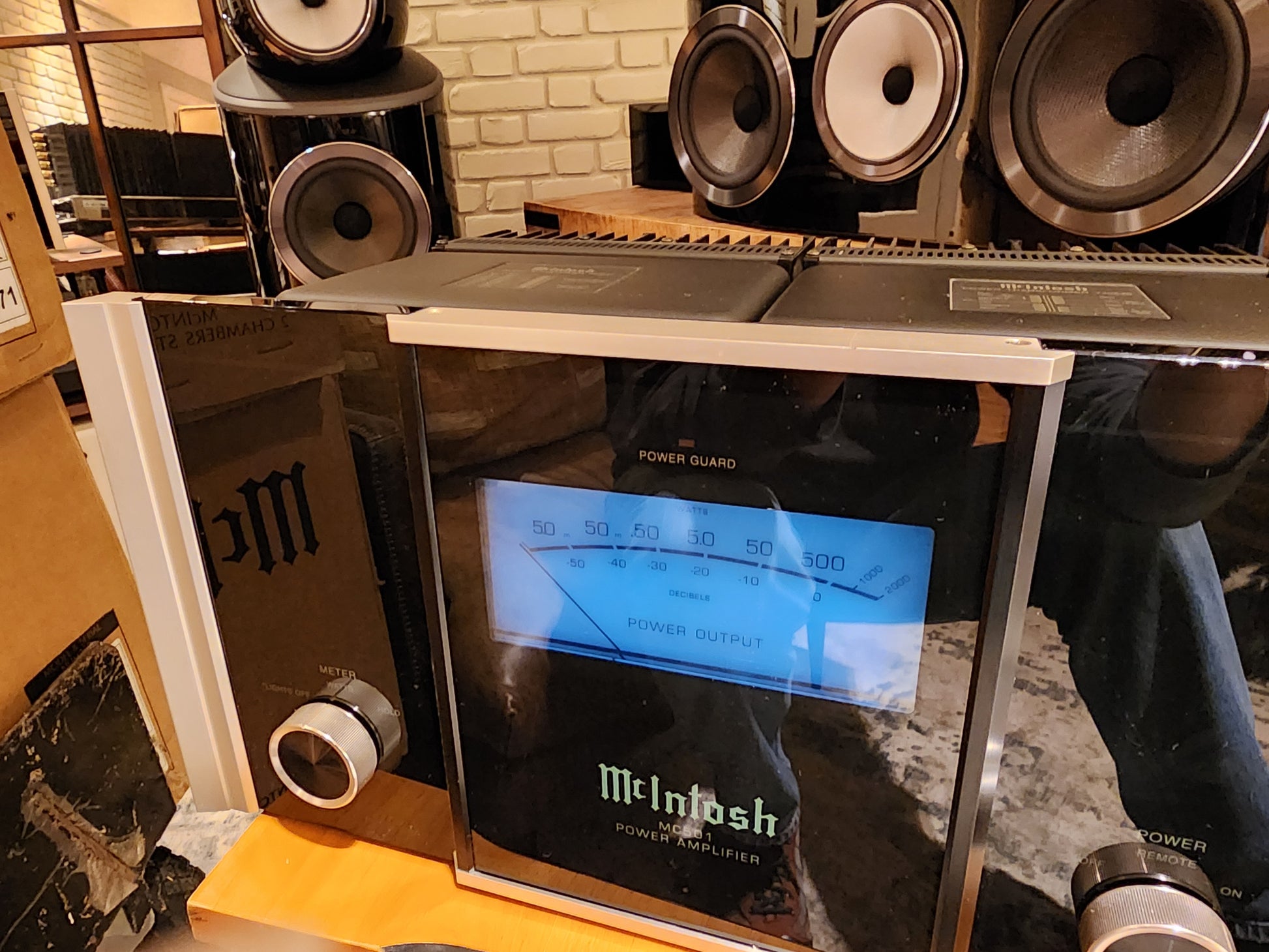

The MC501 has a bold look yet is unmistakably a McIntosh. It features a 2-dimensional
glass front panel containing a large peak-responding true-wattmeter, all illuminated with

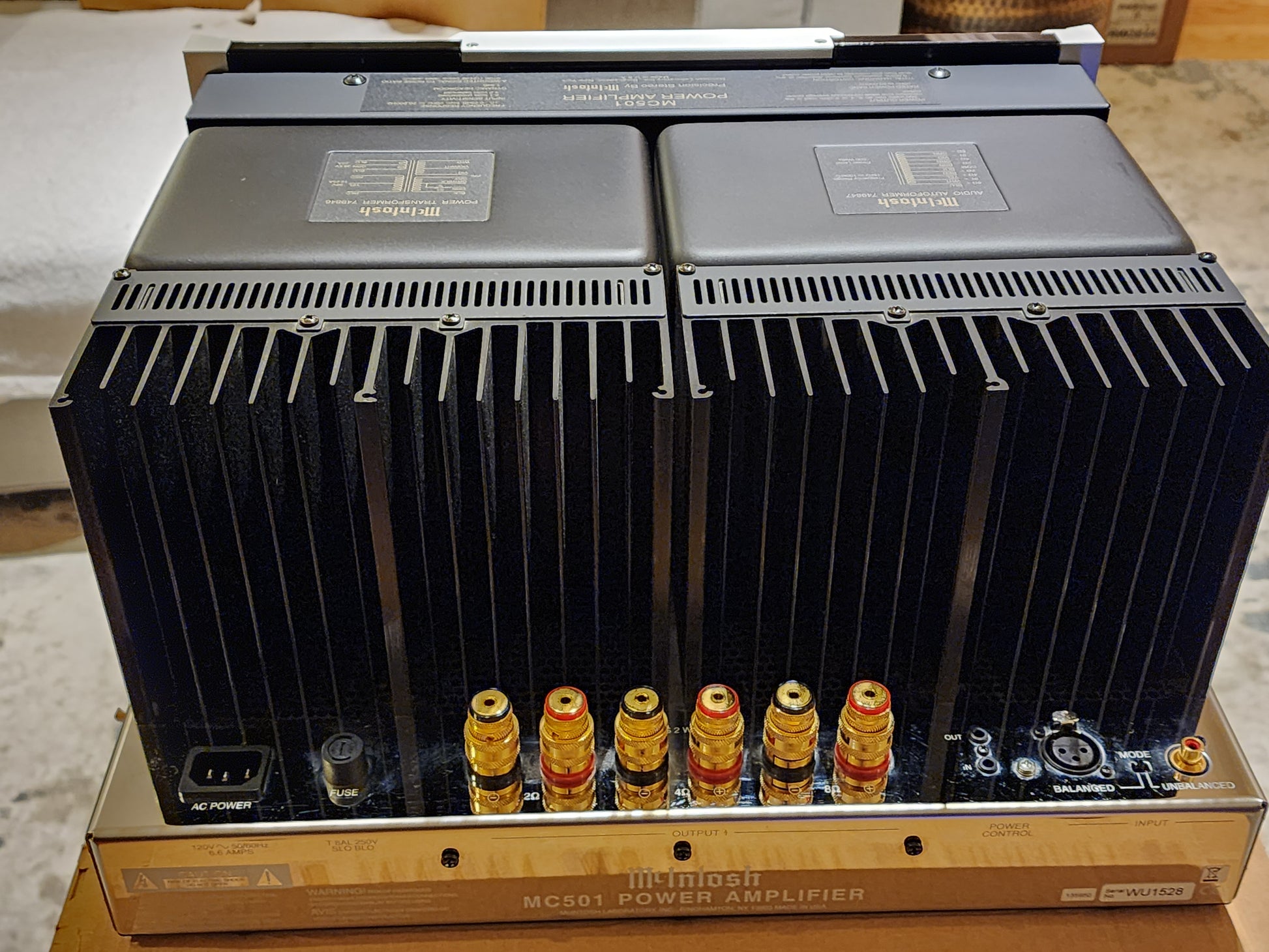

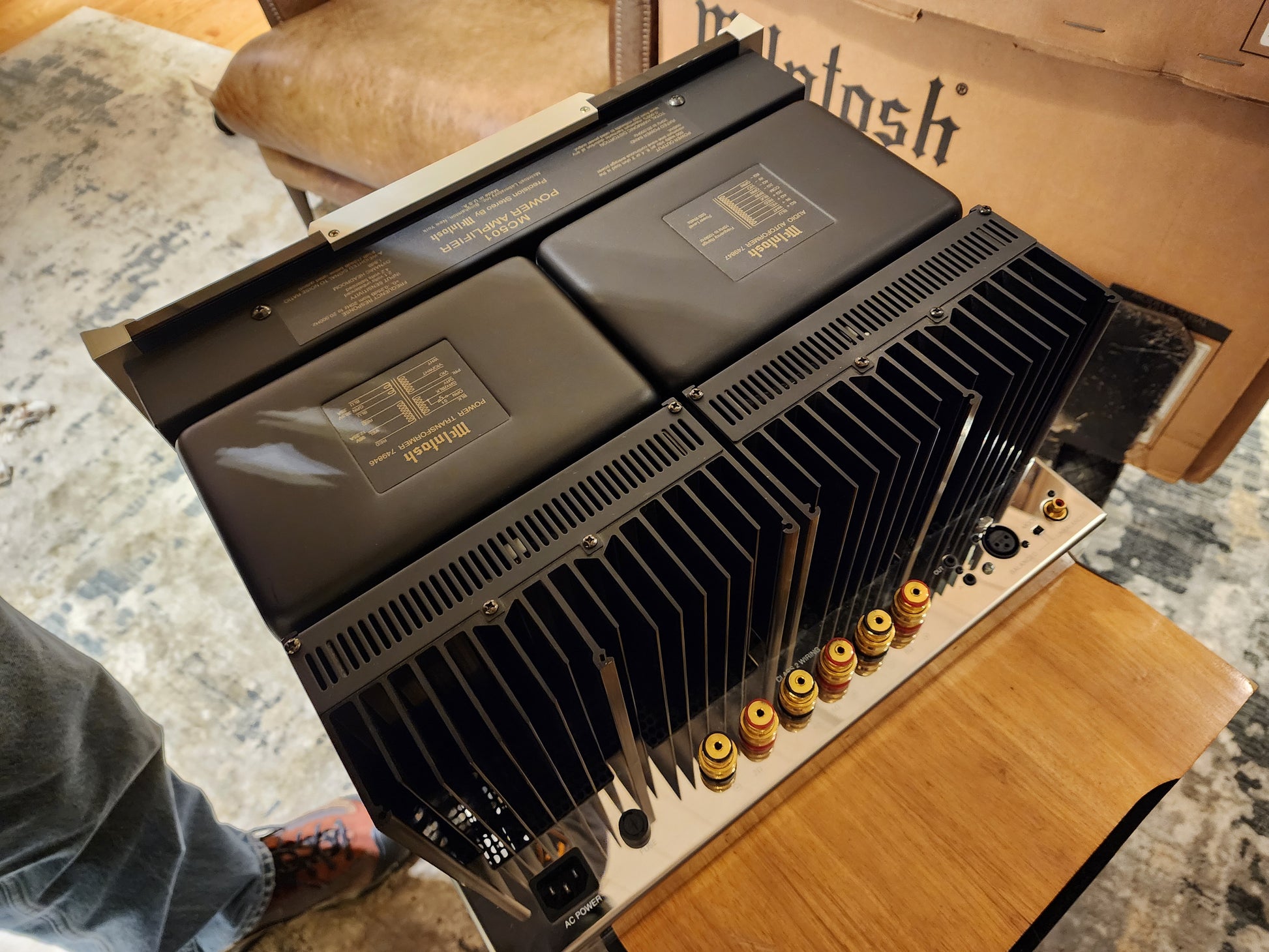

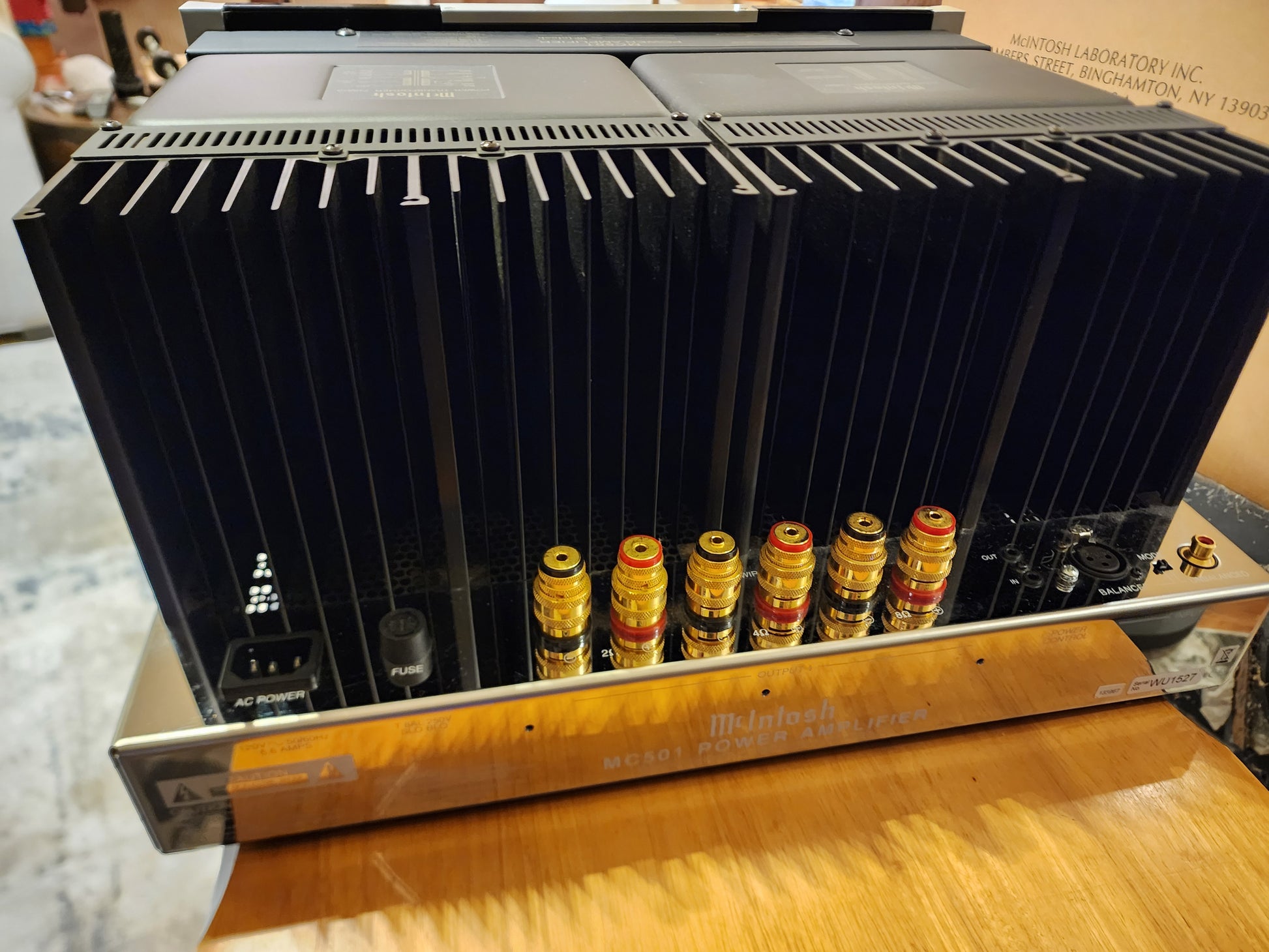

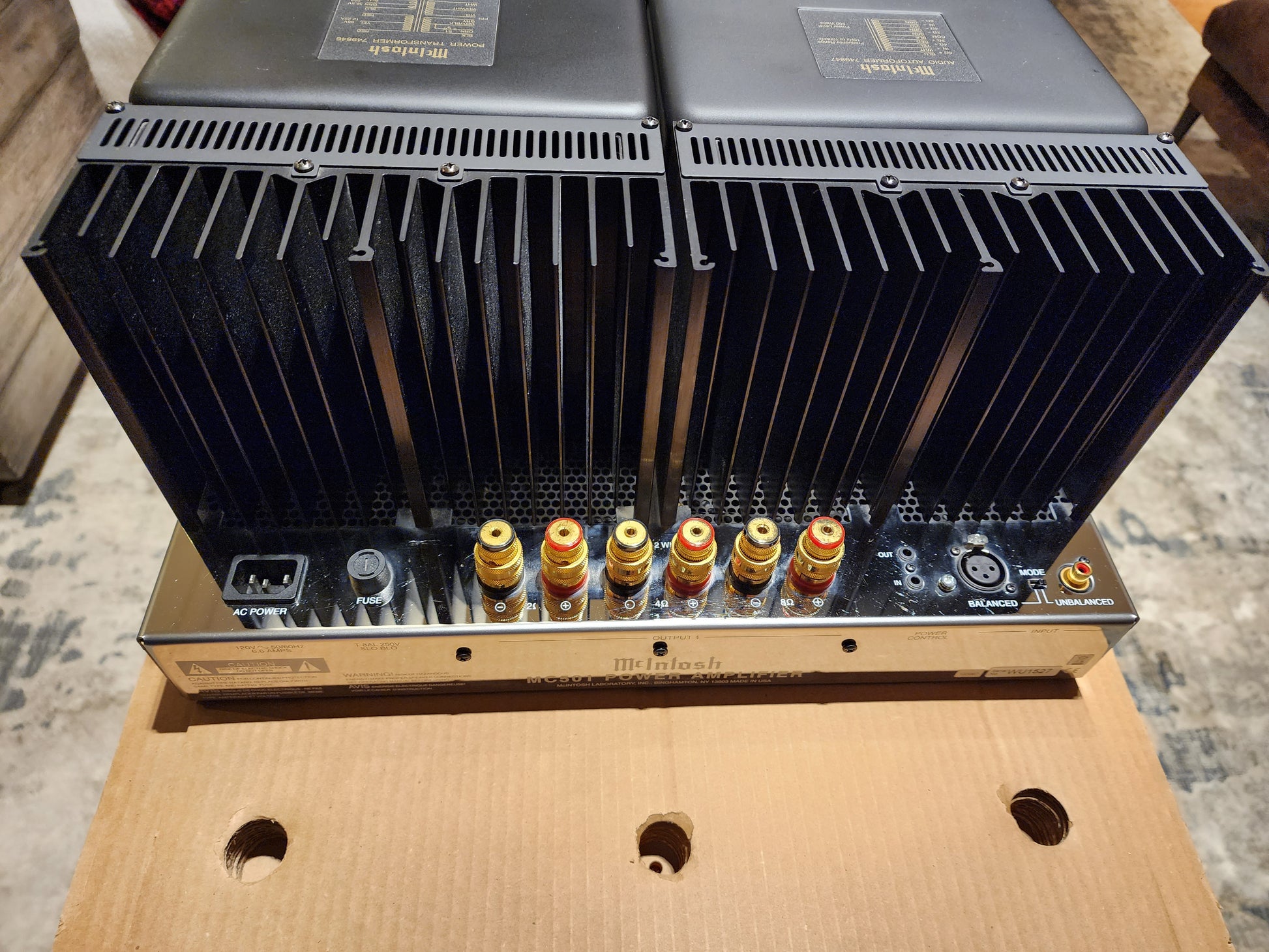

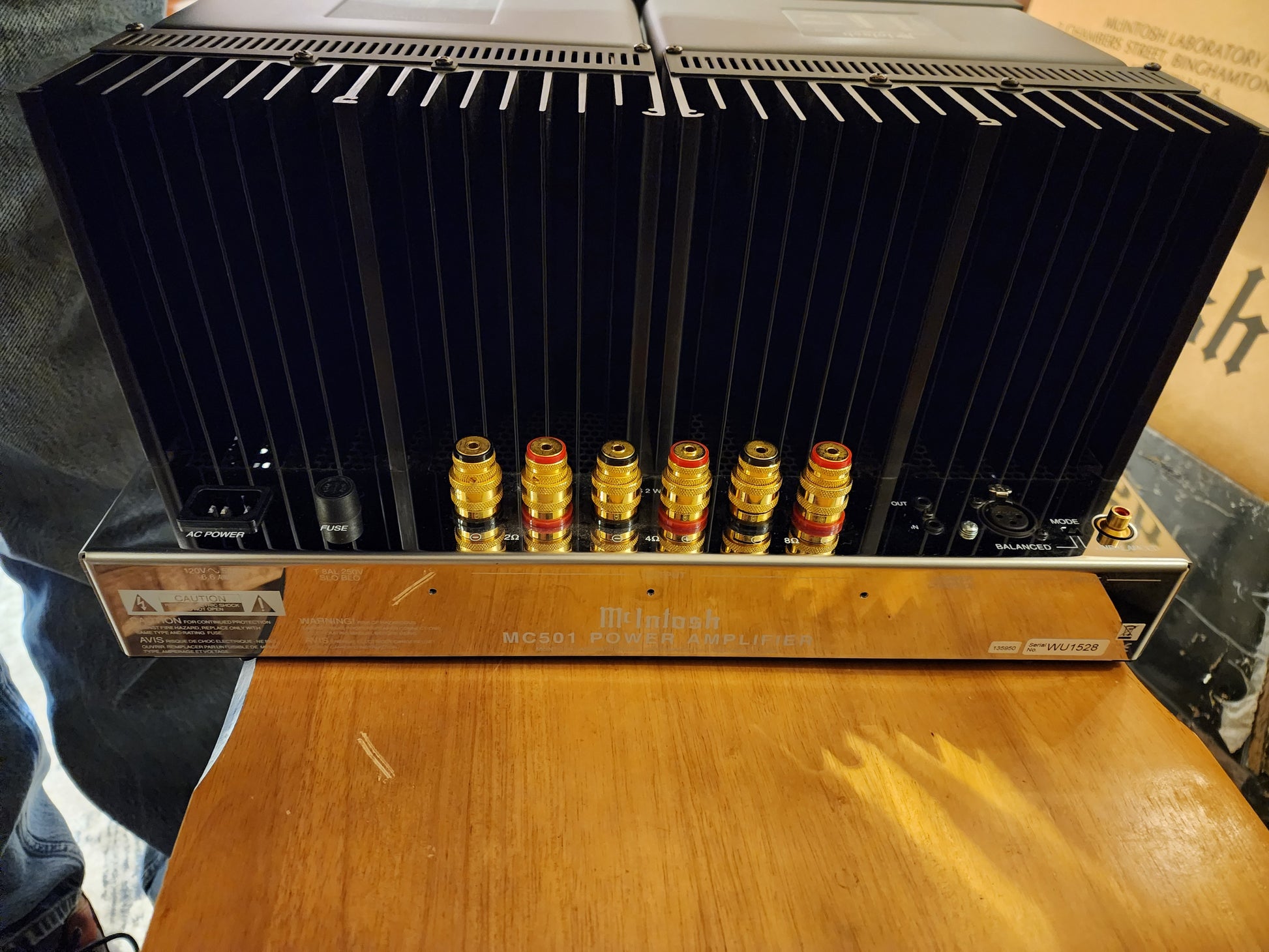

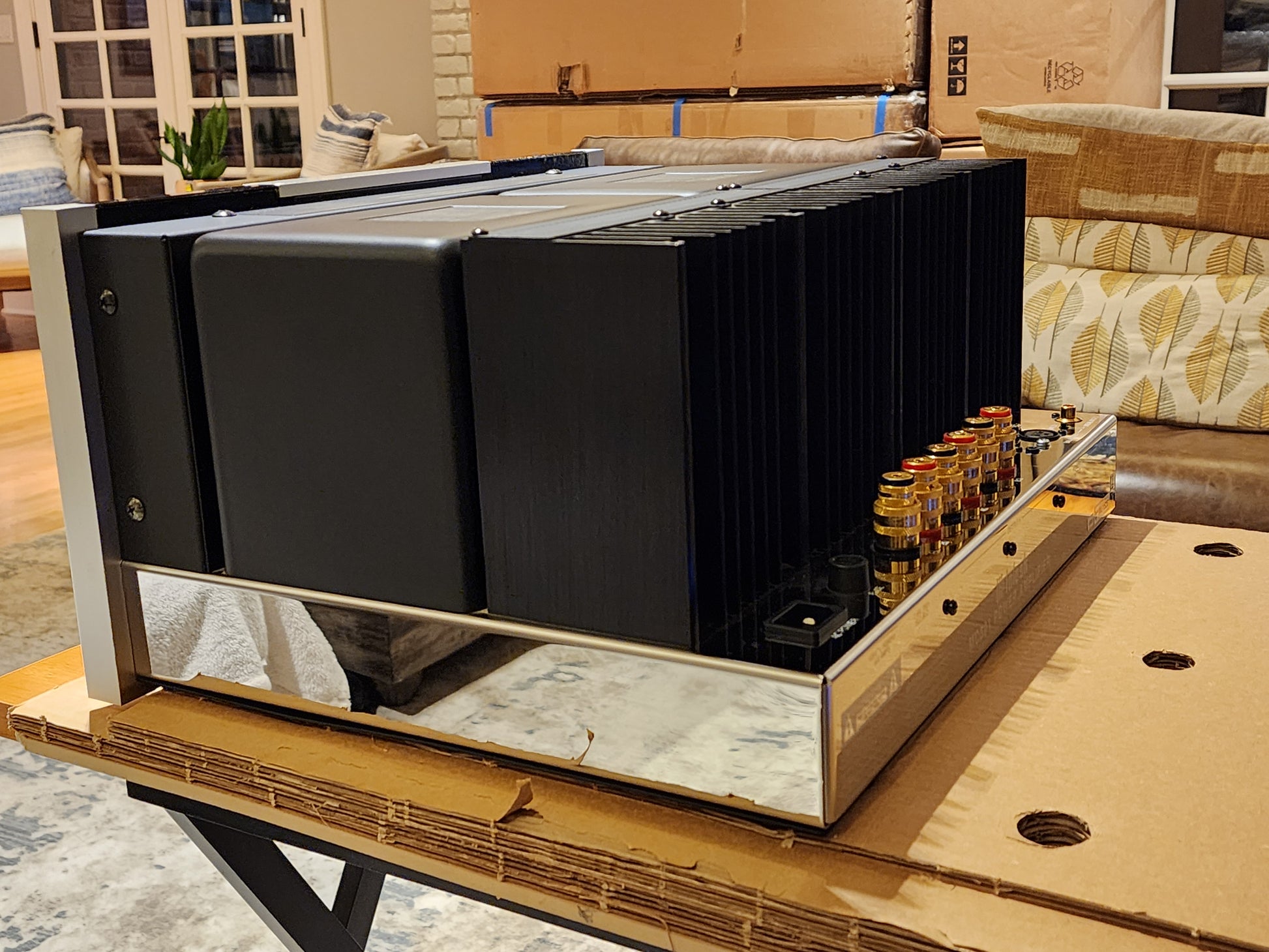

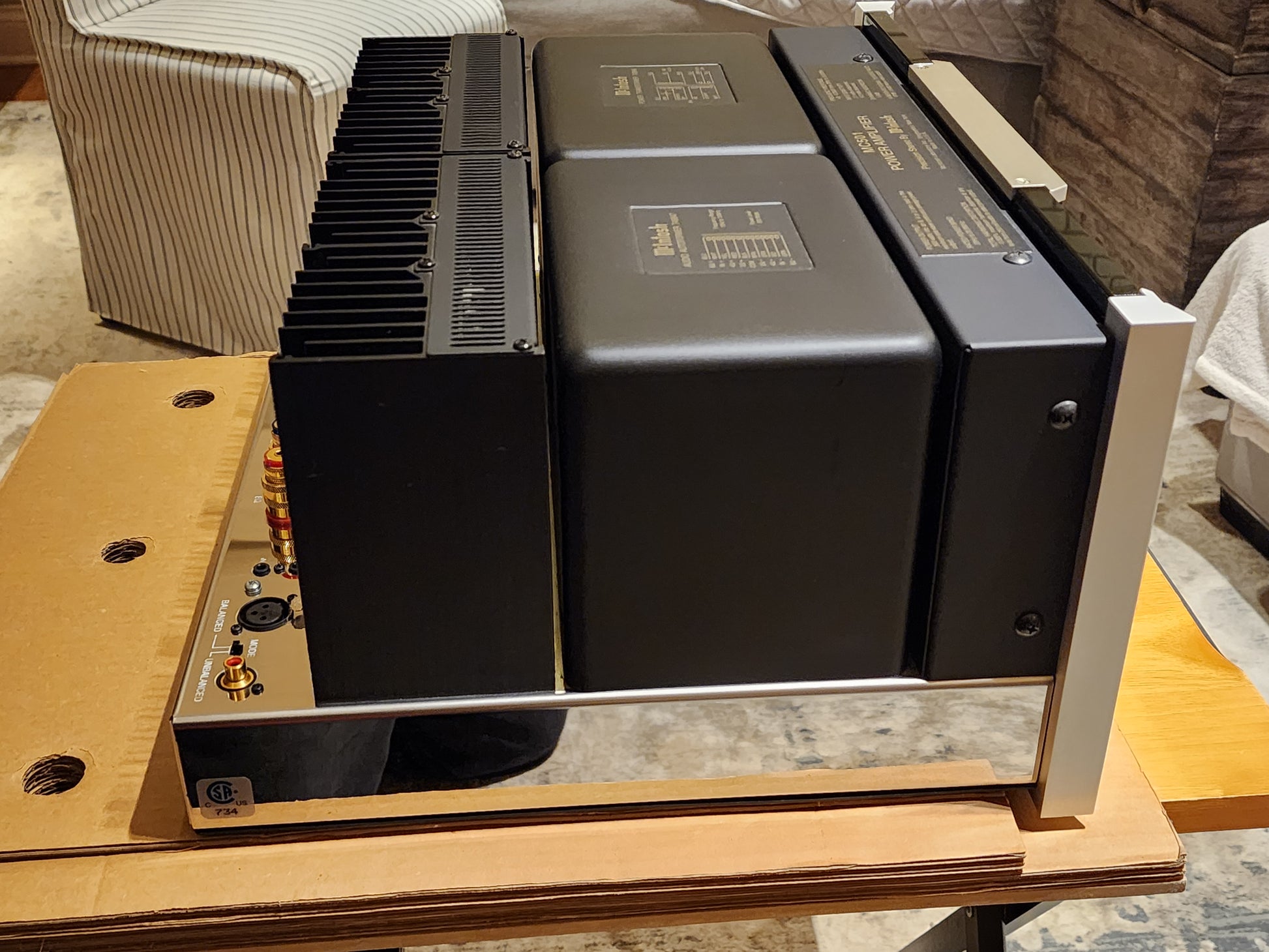

cool running, ultra long-life LED fiber-optic lighting. The chassis gleams in polished stainless steel and vertically mounted connectors at the back make attaching cables easier and takes up less shelf space. Both unbalanced and balanced inputs are provided along with three sets of huge, gold-plated speaker binding posts for high-performance
speaker cables.
MC501 Specifications:
- 500 Watt mono block power
- Cool running long life LED faceplate illumination
- Compact shallow design for ease of placement
- Included Autoformer
- Manufactured 2003 - 2012
FREQUENCY RESPONSE
+0, -0.25dB from 20Hz to 20kHz
+0, -3dB from 10Hz to 100kHz
TOTAL HARMONIC DISTORTION
0.005% maximum at any level from 250mW
to rated power output.
INTERMODULATION DISTORTION
SMPTE 0.005% maximum if instantaneous
peak output does not exceed twice the
output rating.
A-WEIGHTED SIGNAL-TO-NOISE RATIO
Unbalanced and Balanced: 97dB
(124dB below rated output)
RMS POWER OUTPUT
500W minimum sine wave continuous
average power output from 20Hz to 20kHz.
INPUT IMPEDANCE
10,000 Ohms (unbalanced)
20,000 Ohms (balanced)
INPUT SENSITIVITY
2.1 Volts unbalanced, 4.2 Volts balanced
WIDE BAND DAMPING FACTOR
100 @ 8-Ohms
DYNAMIC HEADROOM
1.8dB
RATED POWER BAND
20Hz to 20kHz
POWER GUARD®
Clipping is prevented and THD does not exceed 2%
with up to 14dB overdrive at 1kHz.
POWER REQUIREMENTS
120V 50/60Hz, 6.6A
OVERALL DIMENSIONS (H x W x D)
9-7/16” (22.86cm) x 17-1/2” (44.45cm) x
14-13/16” (37.62cm) including front
panel and knobs.
WEIGHT
91.5 lbs. (41.6 kg) net
105.5 lbs. (48 kg) boxed
ADDITIONAL SPECIFICATION
DC Failure Protection
Thermal Sensors
Turn-on Delay
Soft Start Inrush Protection
Balanced and Unbalanced Inputs
Remote Power Control
Massive Gold Plated Output Binding Posts
Stainless Steel Chassis w/ Super Mirror Finish
