NAD PP 2e Phono Preamp - Used

NAD PP 2e Phono Preamp - Used

Regular price $109.99 USD
Regular price $159.99 USD Sale price $109.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Condition

This item does not include a manufacturer's warranty.

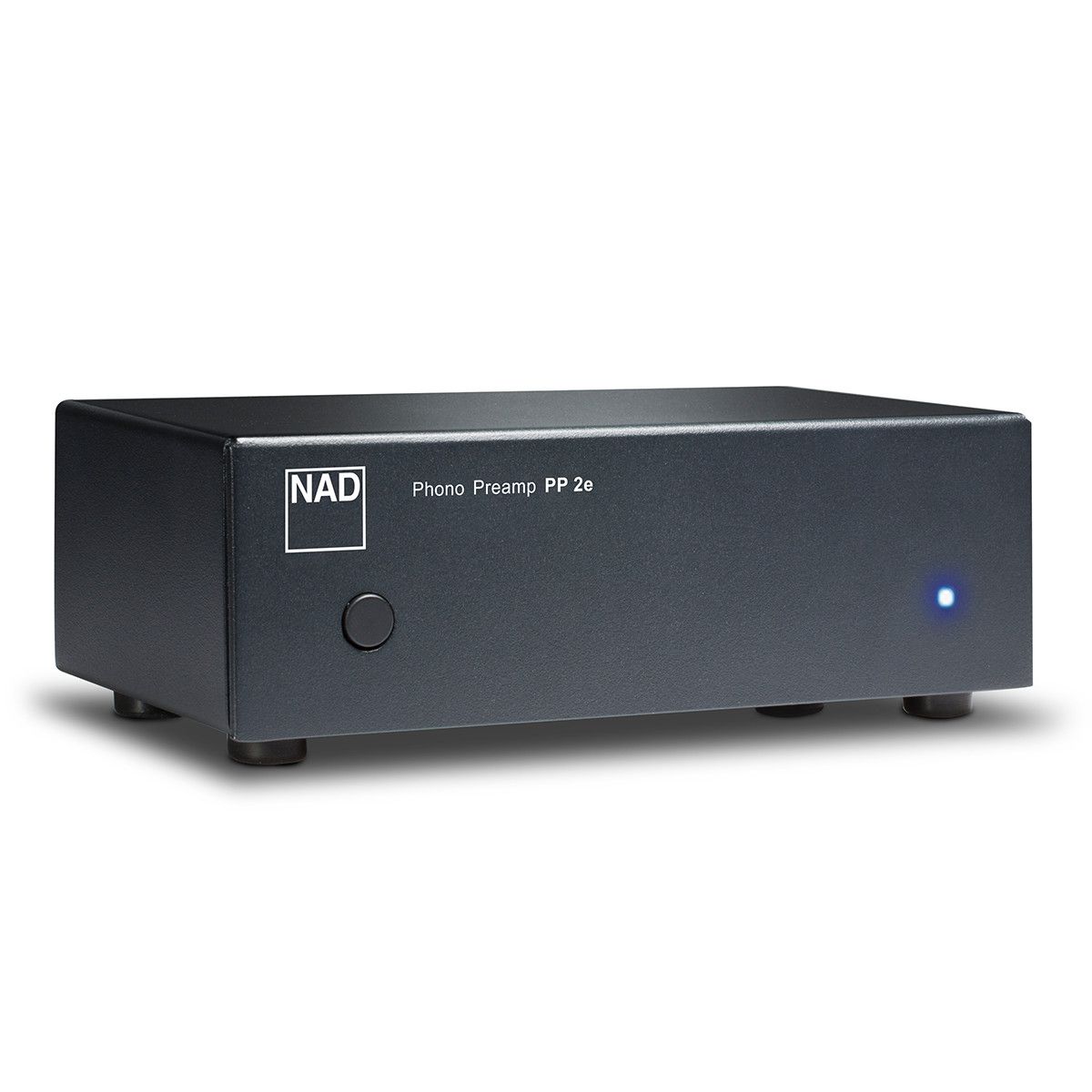

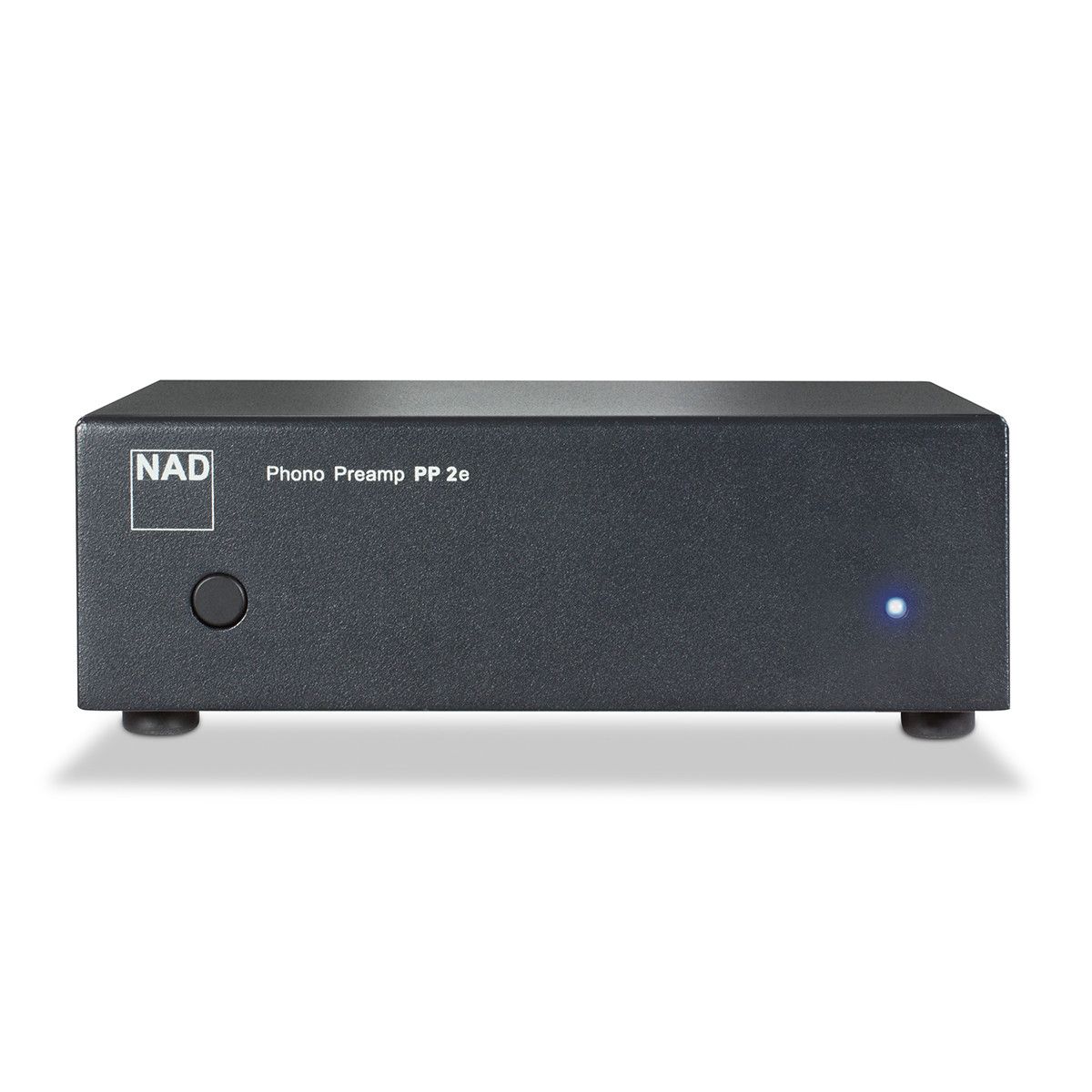

NAD Electronics PP 2e Phono Preamplifier

Improved Energy Saving Phono Preamp

The PP 2e Phono Preamplifier offers superb performance in a clean and simple package for a very reasonable cost. Perfect for the budget-conscious audiophile, the PP 2e’s moving coil/moving magnet input selector provides different phono cartridge options. The PP 2e’s Auto Power Down feature saves energy by automatically powering the PP 2e to OFF when not in use.

  • Low noise, wide band MM & MC phono stage
  • Connect your turntable to almost all amplifiers and receivers
  • External 24 volt power supply
  • Gold plated input sockets
  • High quality components
  • LED power indicator

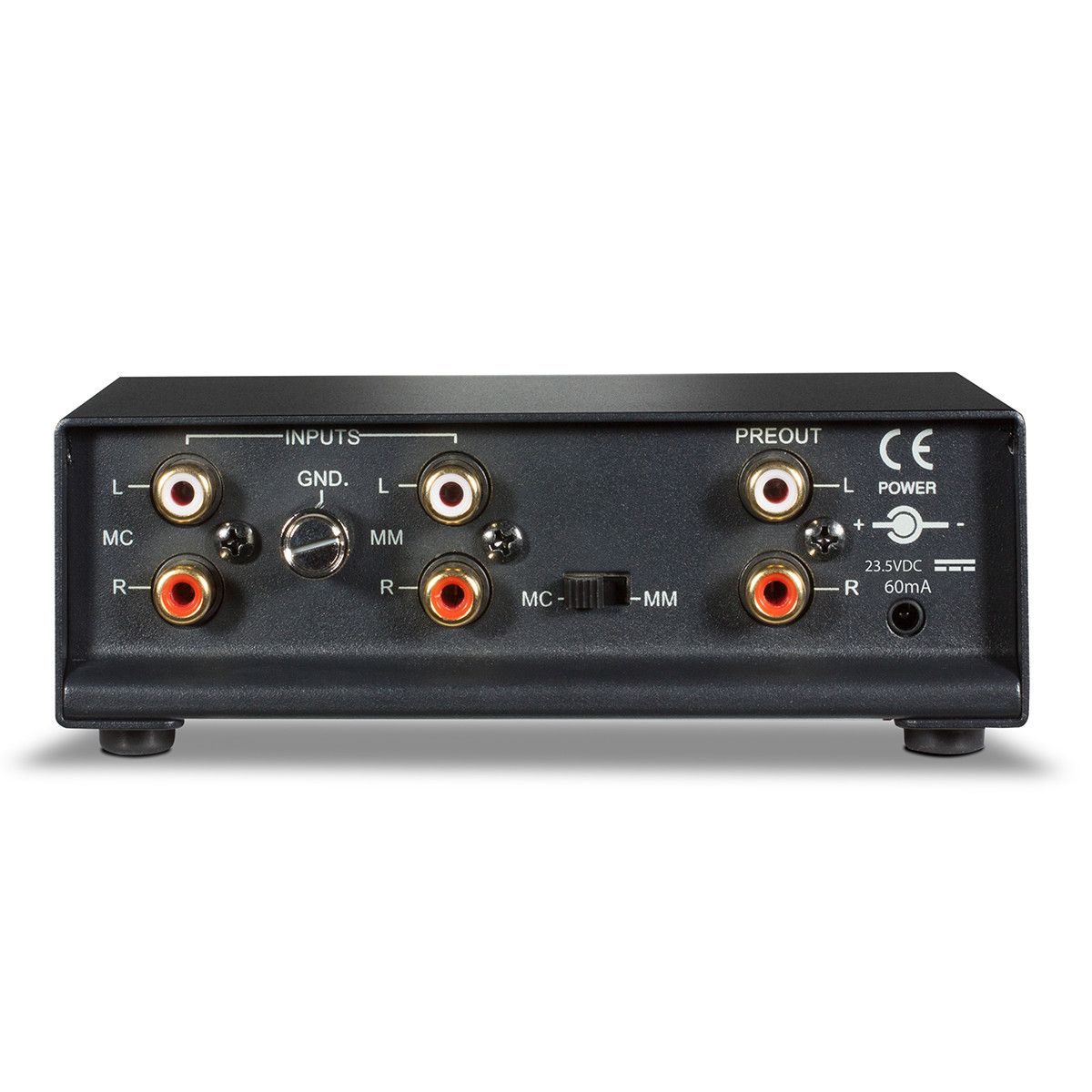

pp2e_rear_drawing-01

pp2e_rear_drawing-02

MC

  • Input Impedance (R and C)
  • 100 Ohm + 180pF
  • Gain at 1kHz
  • 60dB
  • Input Sensitivity (ref. 200mV output)
  • 0.3mV
  • Signal to Noise Ratio
  • 78dB (A weighted, with cartridge connected)
  • Input Overload (20Hz/1kHz/20kHz)
  • 0.8/9/84mV
  • Rated Distortion (THD 20Hz – 20kHz)
  • <0.03%
  • RIAA Response Accuracy
  • ±0.3dB

MM

  • Input Impedance (R and C)
  • 47 kilohm + 200pF
  • Gain at 1kHz
  • 35dB
  • Input sensitivity (ref. 200mV output)
  • 2.5mV
  • Signal to Noise Ratio
  • 80dB (A weighted, with cartridge connected)
  • Input overload (20Hz/1kHz/20kHz)
  • 10/102/950mV
  • Rated Distortion (THD 20Hz – 20kHz)
  • <0.03%
  • RIAA response accuracy
  • ±0.3dB

Line Out

  • Output Impedance
  • 100 Ohm
  • Maximum Output Level
  • 5.3V

General Specifications

  • AC Supply
  • External 23.5V DC
  • Dimensions excl. Power supply (W x H x D)
  • 135 x 49 x 72mm
    5 5/16 x 1 15/16 x 2 7/8″

Line In


  • Input Impedance
  • Rated Distortion (THD 20Hz 20kHz)
  • Signal to noise, A weighted
  • Maximum Input Level


  • Line Out

  • Output Impedance
  • 100

  • Maximum Output Level
  • 5.3V
