Naim Audio NVC TT New Classic Phono Stage
Naim Audio NVC TT New Classic Phono Stage
Couldn't load pickup availability
NVC TT
MM/MC phono preamplifier
Get the most out of your vinyl with NVC TT. Very easy to use, it is perfectly compatible with any turntable with MC cartridges and MM cartridges, and easily connects to NAC 332 or NSC 222 preamplifiers. When linked with its dedicated power supply, NPX TT, it offers high performance.
Under the leadership of our Technical Director, our engineers have developed specific electronic circuits to give the New Classic products superior performance. The best audiophile components have been chosen for NVC TT and highly precise measurements to achieve an uncompromising result. It is an innovative concept, which partly uses the association between the phono stage and the power supply like in Naim’s Solstice Special Edition.
NVC TT connects easily to preamplifiers NSC 222 and NAC 332 from the New Classic range. It has a dedicated power supply, NPX TT, for the ultimate vinyl listening experience.
Naim products are designed to be both contemporary and timeless. Our creations forgo any unnecessary adornments that would detract from the performance and sound quality delivered. The design of NVT TT is inspired by previous Naim creations, such as the SuperLine, but also the Statement amplifier. It is razor sharp, combining a sleek design, premium materials and adjustable logo brightness.
Our founder, Julian Vereker, immediately understood the many benefits of aluminium for wrapping Naim electronic components. He knew that delicate audio components are very sensitive to the effects of magnetic fields, thermal instability, unwanted vibrations, etc.
The New Classic range maximises this highly technical and durable approach, with aluminium housings rivalled only by Statement, our flagship product. Naim chose a superior-quality aluminium, which optimally combines thermal and microphonic properties. The front panels are treated with solid 20mm-thick aluminium billets; heat sinks frame the side panels and 5mm plates cover the top and bottom surfaces of the products. The aluminium is brushed, sandblasted and anodised to guarantee unalterable beauty throughout the product's life. The New Classic range can be immediately distinguished with one look and one touch, before the first note of music even plays.

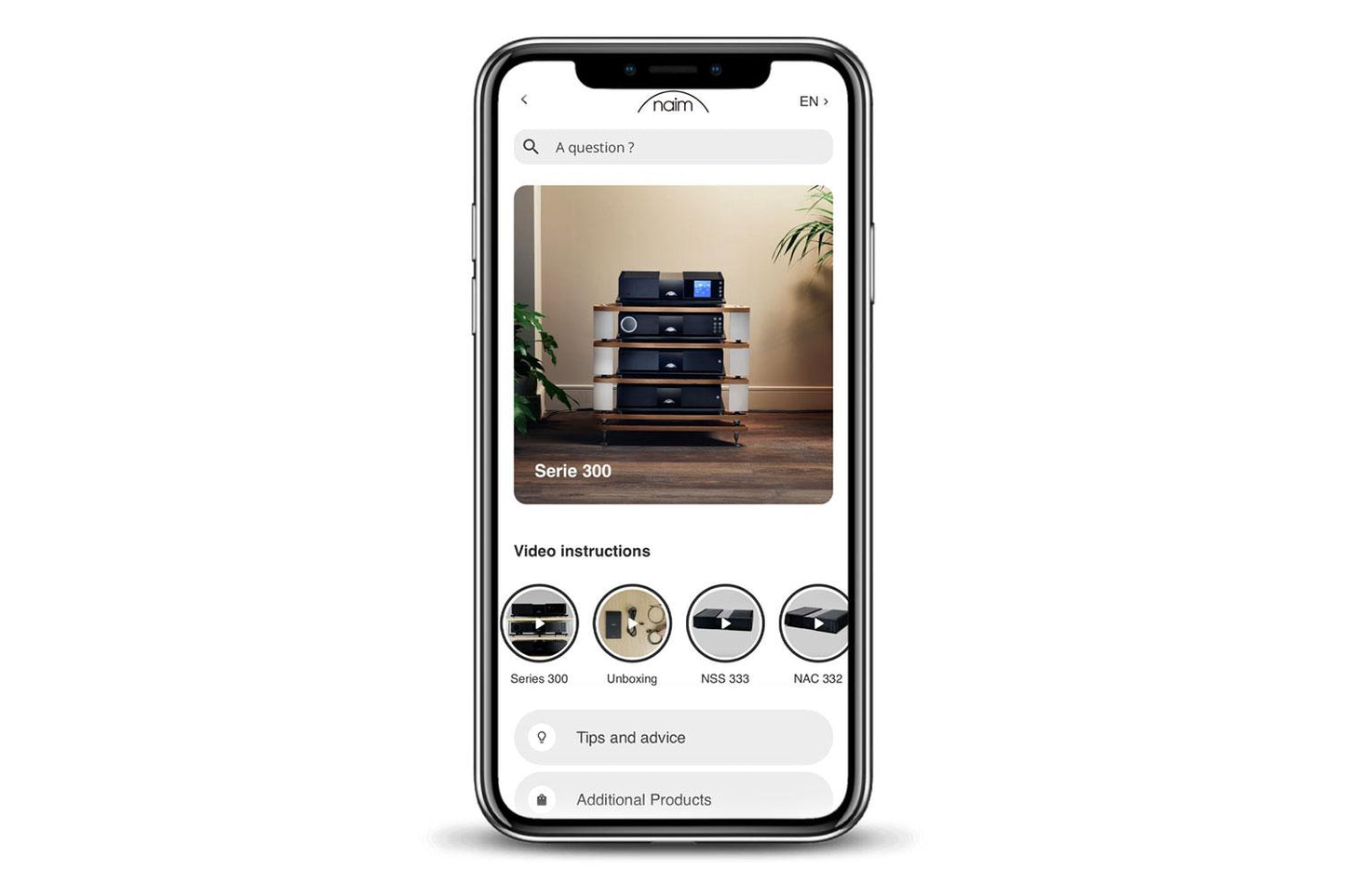

Discover the new interface available for the 200 & 300 Series to help with the set-up of your products. Find high-quality tutorials to optimise the sound settings, best practice advice and tips.
| Product Type |
Switchable MM/MC phono stage with MC load adjustment |
| Audio Outputs |
Max output signal: 8 Vrms Headroom: |
| Audio Inputs |
MM: (Partial) – 2dB at 20Hz and -3dB at 14Hz |
| Power Amp In |
+/-18V DC @300mA |
| Powered Accessory Sockets |
Stereo RCA |
| Crosstalk |
MM: >75dB |
| THD + N |
MM: <0.005% ref 50mV input |
| Signal-to-Noise Ratio |
MM: 83dB réf. 5 mV A-wtd |
| Gain |
MM: 42dB |
| RIAA Accuracy |
MM: +/-0.1dB |
| Weight |
7.5lbs (3.4kg) |
| Dimensions (HxWxD) |
23/4x 83/8x 121/2" (7x21.4x31.7cm) |
| Amplifier Output |
1 x Stereo RCA |
| Power Output |
MM: 47kΩ and 100pF MC (low & high gain): 16 selectable resistive values: 16 selectable capacitive values: |
| Power Supply |
Type 1 |
